Home >> Honda >> 1993 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Engine Lubrication >> Diagrams

Engine Lubrication: Diagrams

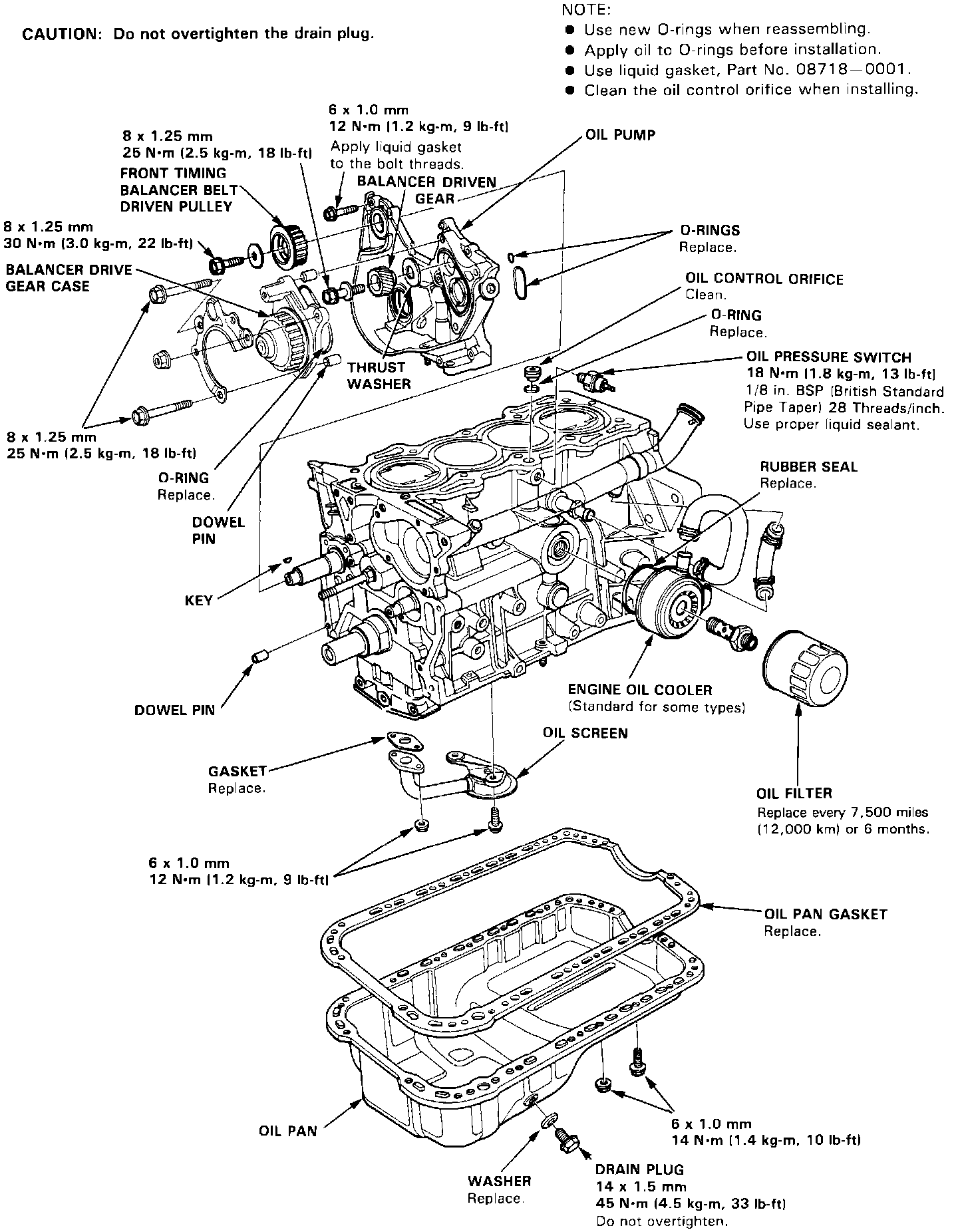

Exploded View Of Engine Lubrication:
