Disassembly

NOTE: Identify valves and valve springs as they are removed so that each item can be reinstalled in its original position.

1. Tap each valve stem with a plastic mallet to loosen valve keepers before installing the spring compressor.

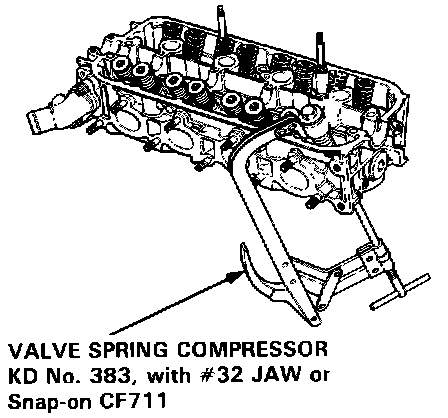

Valve Disassembly:

2. Install the spring compressor. Compress spring and remove valve keeper.

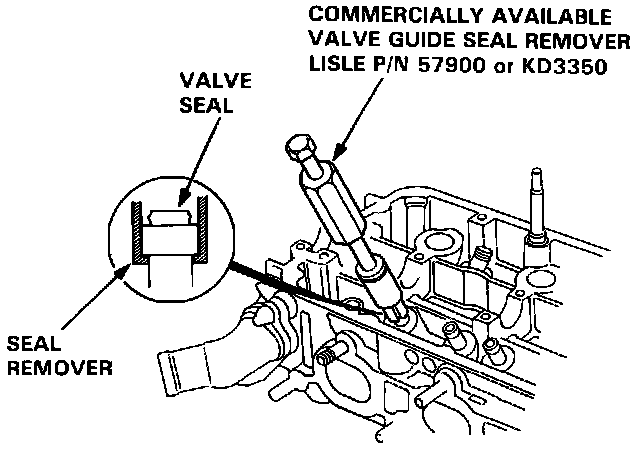

Valve Seal Removal:

3. Install the special tool as shown.

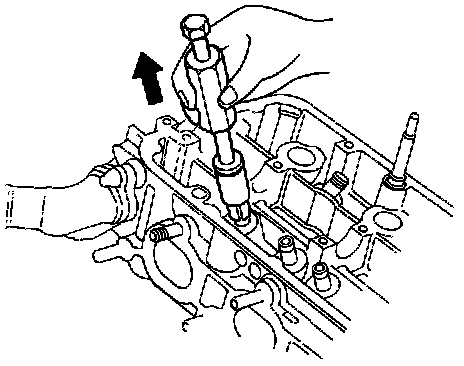

Removing Valve Guide Seal:

4. Remove the valve guide seal.
