Heater Control Valve Cable: Adjustments

1. Open the hood and disconnect the heater valve cable.

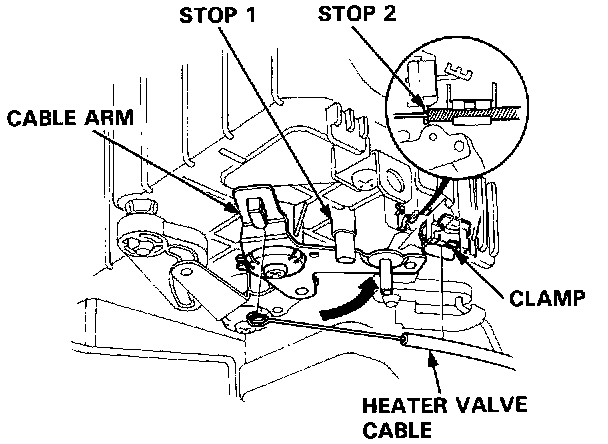

2. Set the temperature control knob (lever) on COOL.
3. Turn the cable arm to stop 1 and connect the end of the heater valve cable to the cable arm.
4. Gently slide the cable outer housing back from the end enough to take up any slack in the cable. but not enough to make the temperature control knob (lever) move. Hold the end of the cable housing against stop 2, then snap the cable housing into the clamp.

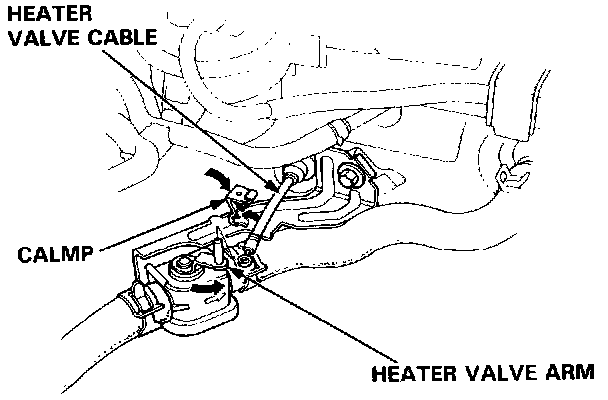

5. Under the hood. Turn the heater valve arm to SHUT and connect the end of the heater valve cable to the heater valve arm.
6. Gently slide the cable outer housing back from the end enough to take up any slack in the cable, but not enough to make the temperature control knob (lever) move, then snap the cable housing into the clamp.

NOTE: The air mix control cable should always be adjusted when ever the heater valve cable has been disconnected.
