Shift Interlock, A/T
>>

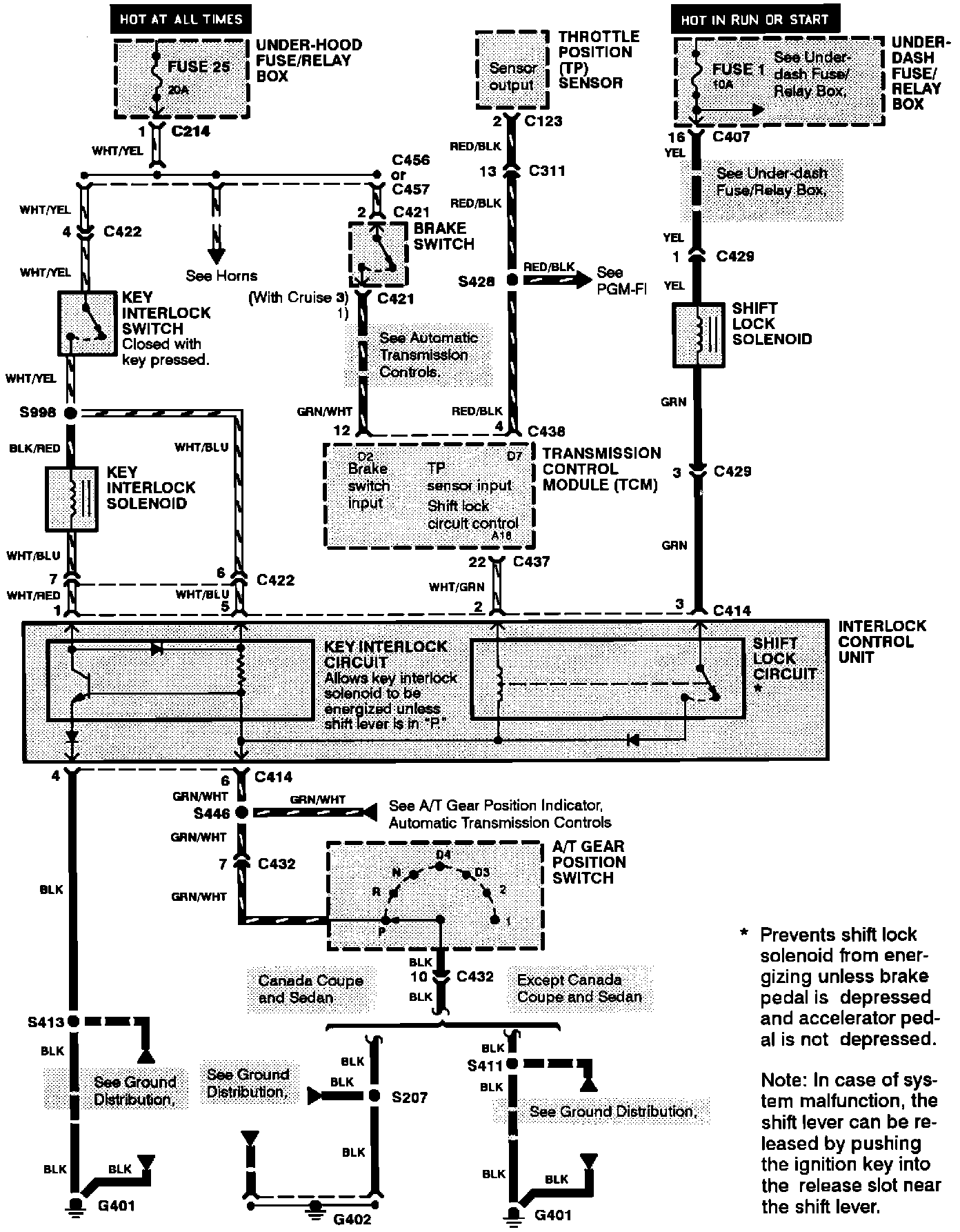

Circuit Diagram
Circuit Diagram
Ignition Interlock System:
Interlock System (Automatic Transmissions Only):
