Ignition System Wiring Diagrams

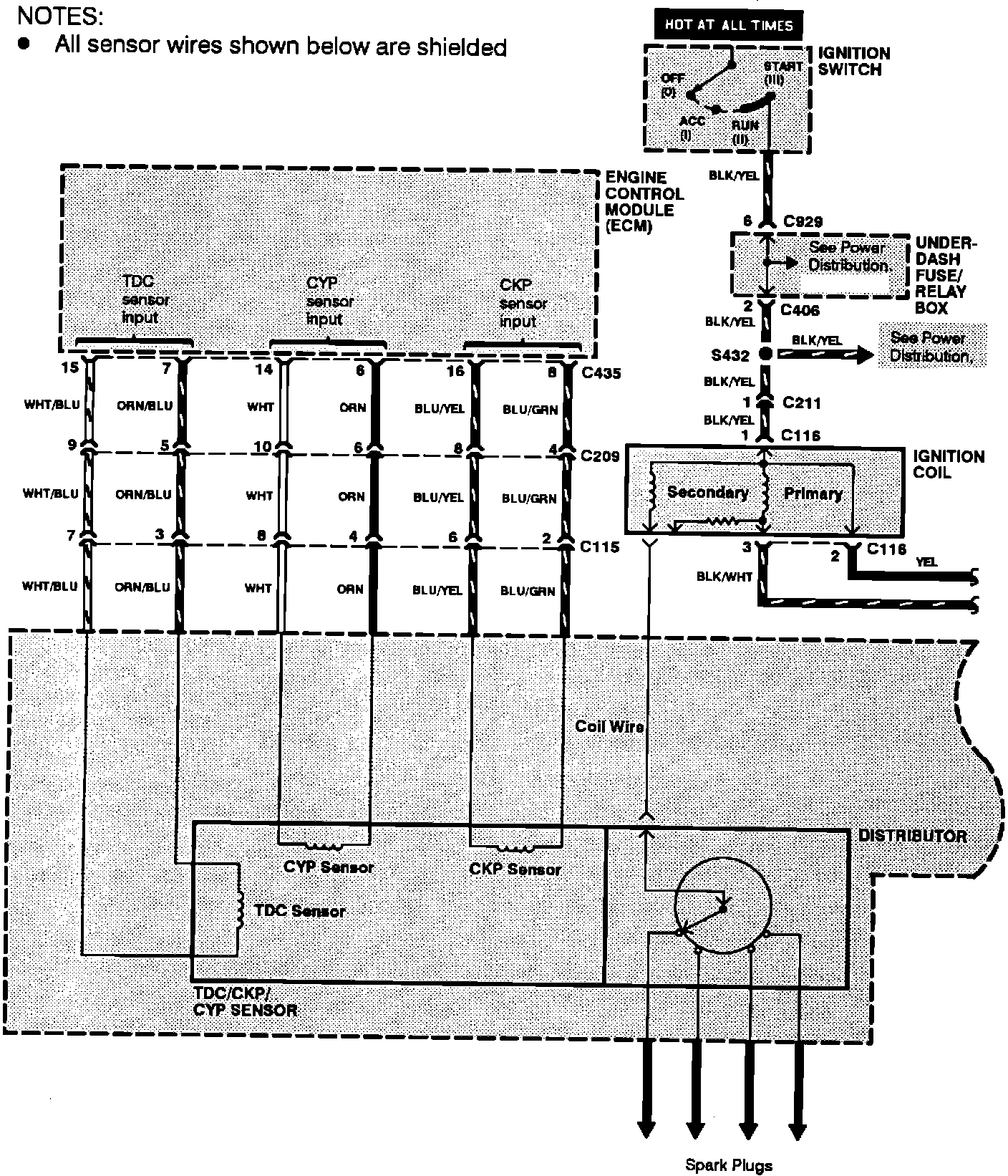

Circuit Schematic Ignition System:

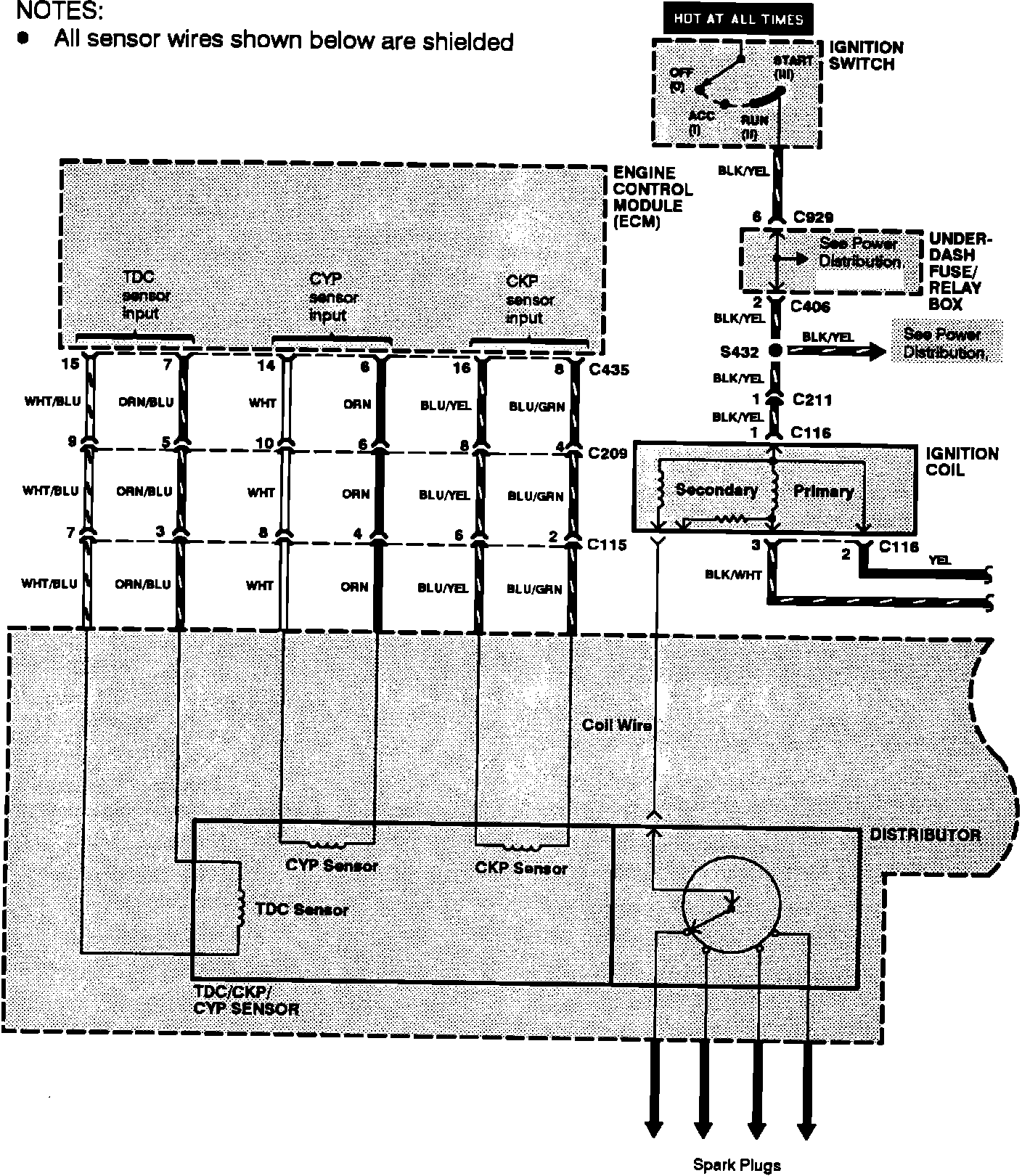

Circuit Schematic Ignition System:

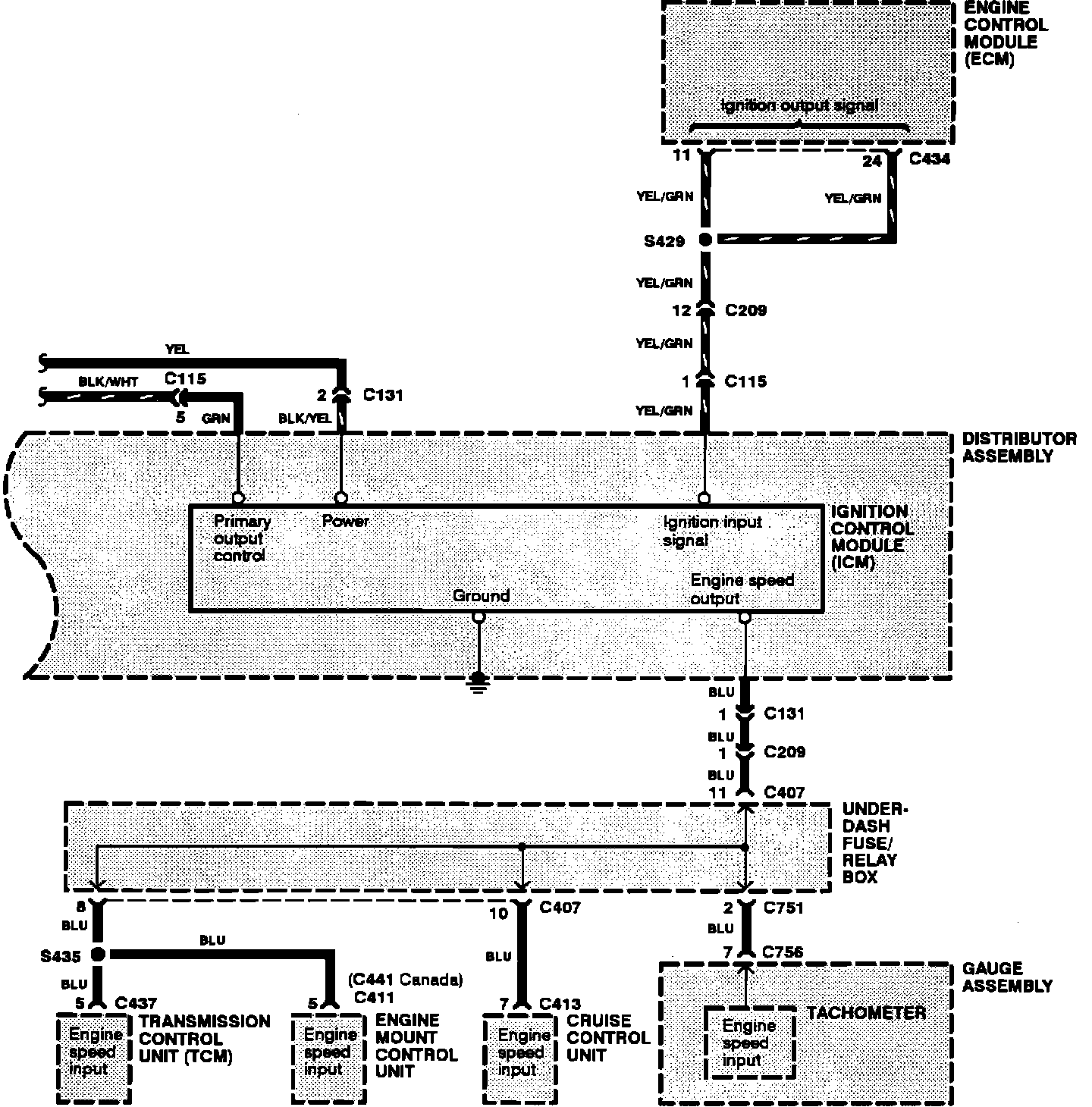

Ignition System:

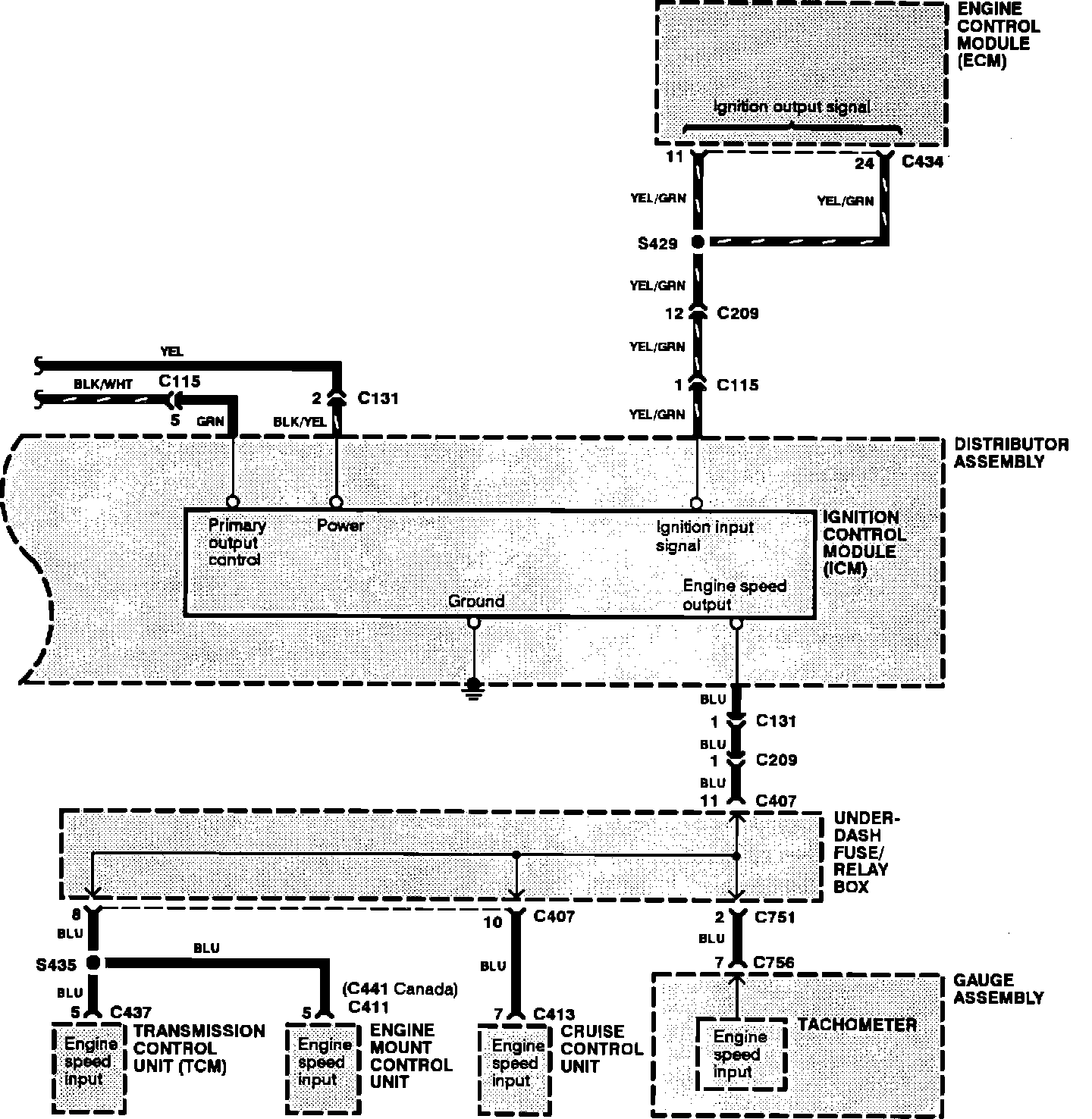

Ignition System:
