Home >> Honda >> 1993 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Ground Distribution >> G502 >> Wagon

Wagon

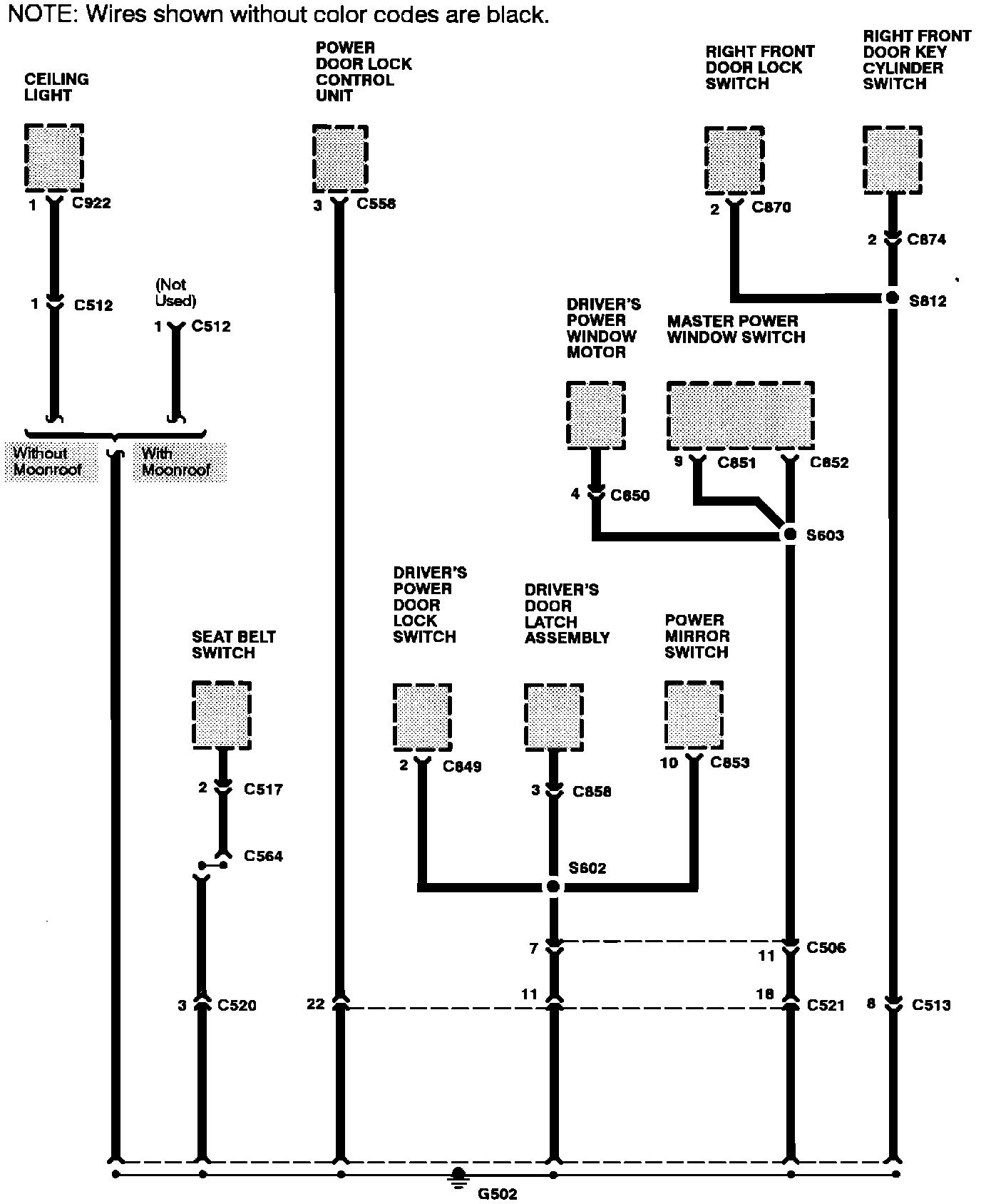

Ground Distribution: G502 (Wagon):
