G1, G2, G101

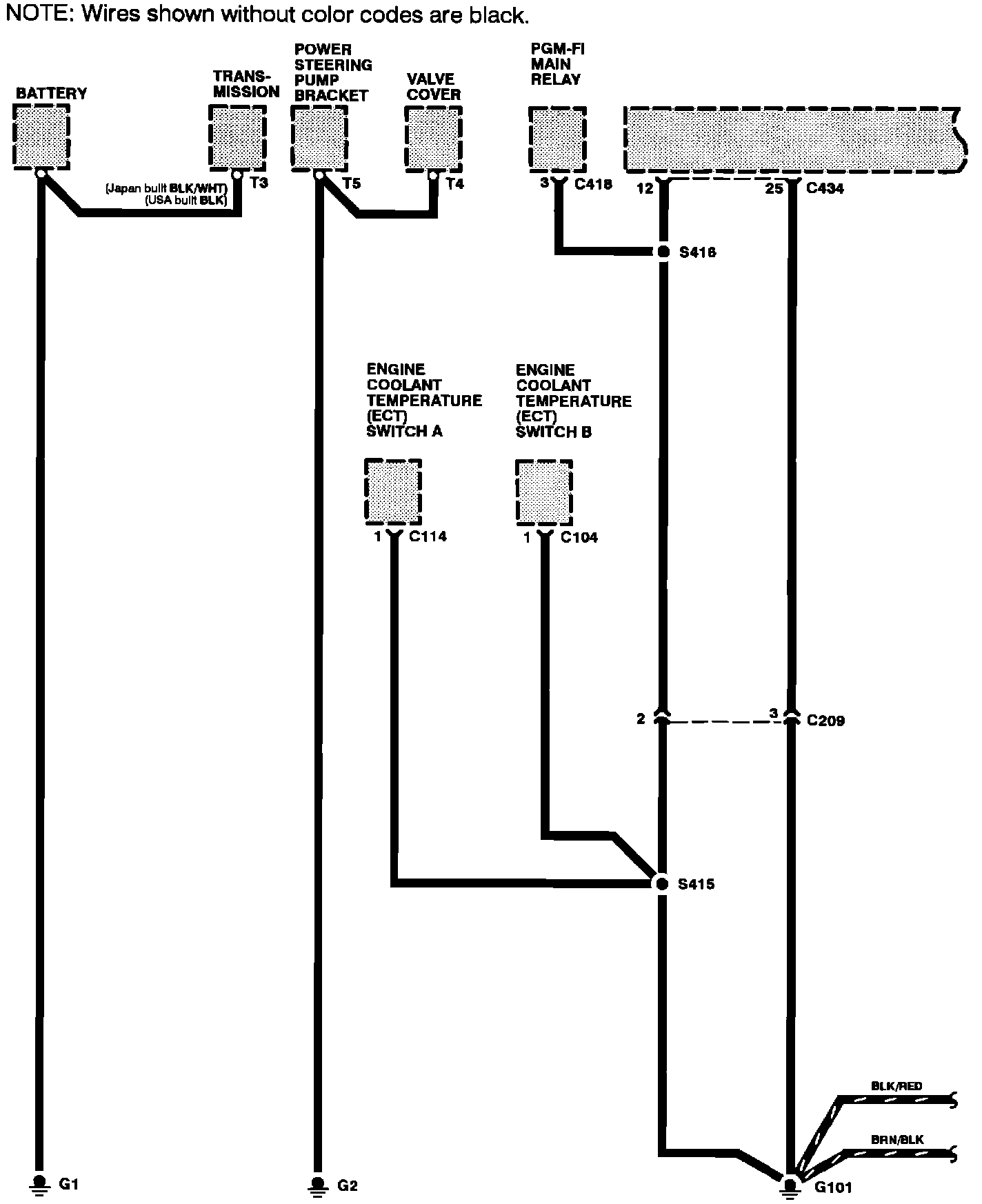

Ground Distribution:



Ground Distribution:

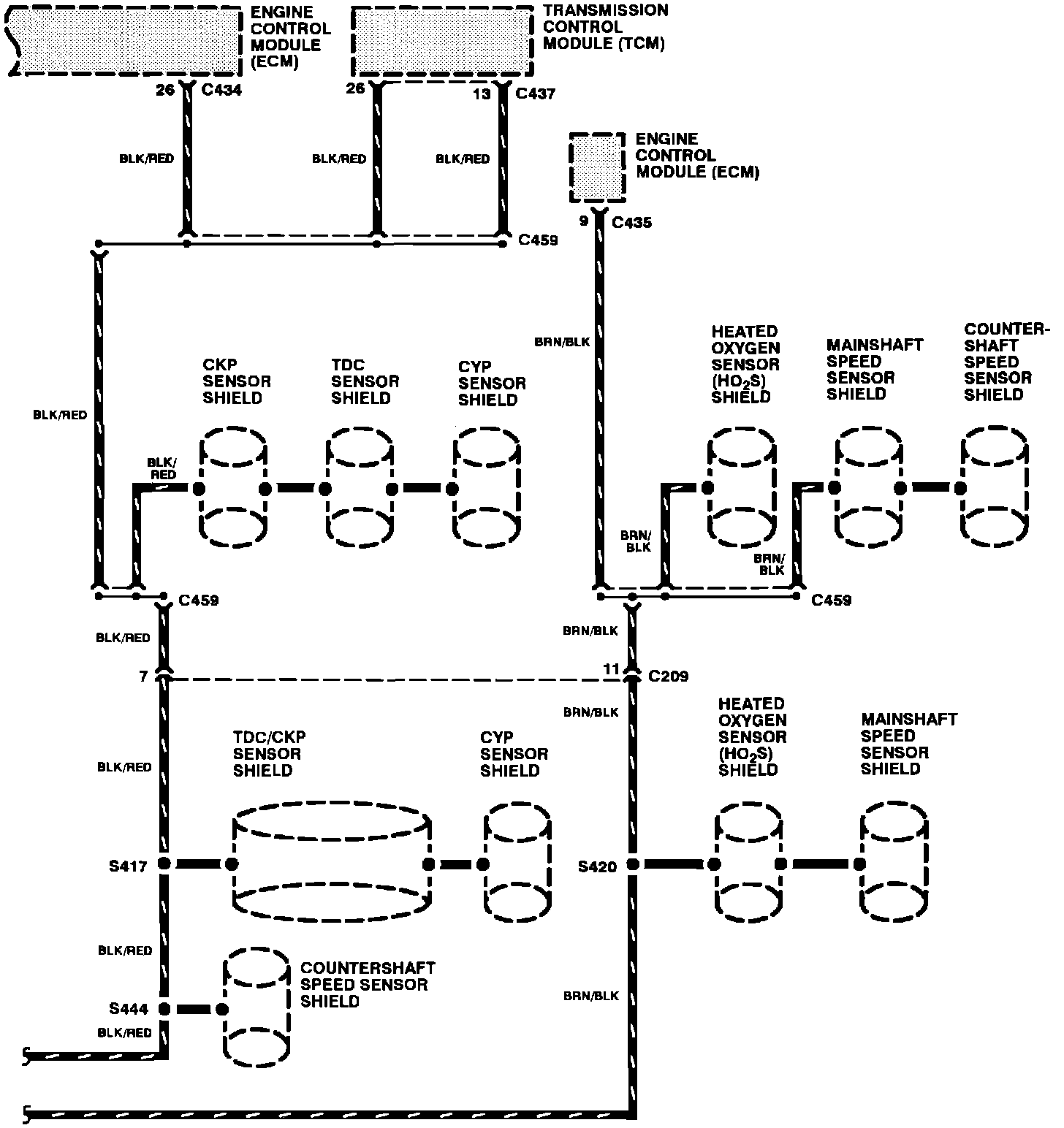

Ground Distribution: G1, G2, G101:

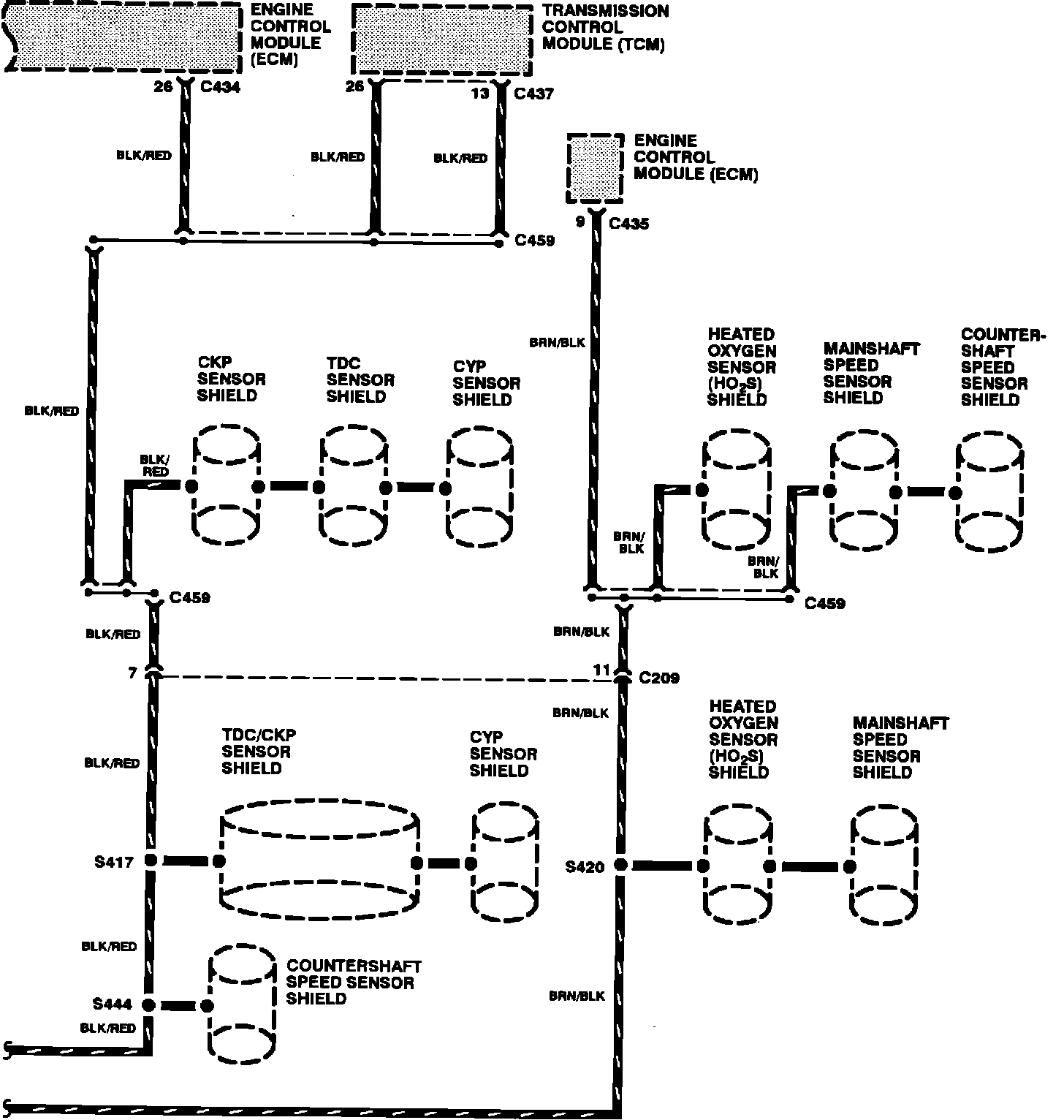

Ground Distribution: G1, G2, G101:
