Accord L4-2156cc 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse
>>
Under-Hood Fuse/Relay Box
>>

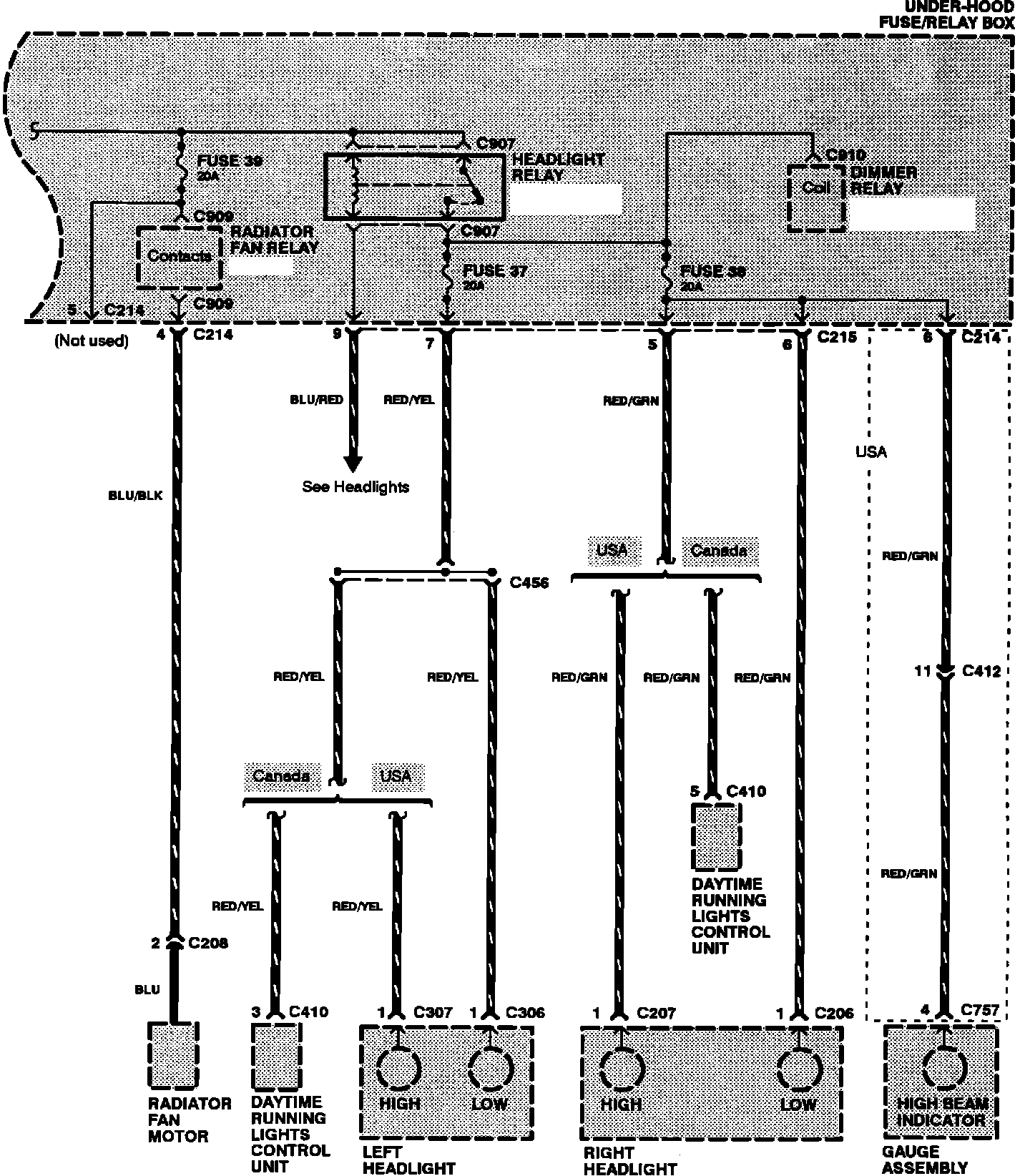

Fuse 39, 37, 38
Fuse 39, 37, 38
Power Distribution:
