Home >> Honda >> 1993 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> Under-Hood Fuse/Relay Box >> Fuse 33, 30, 32, 34

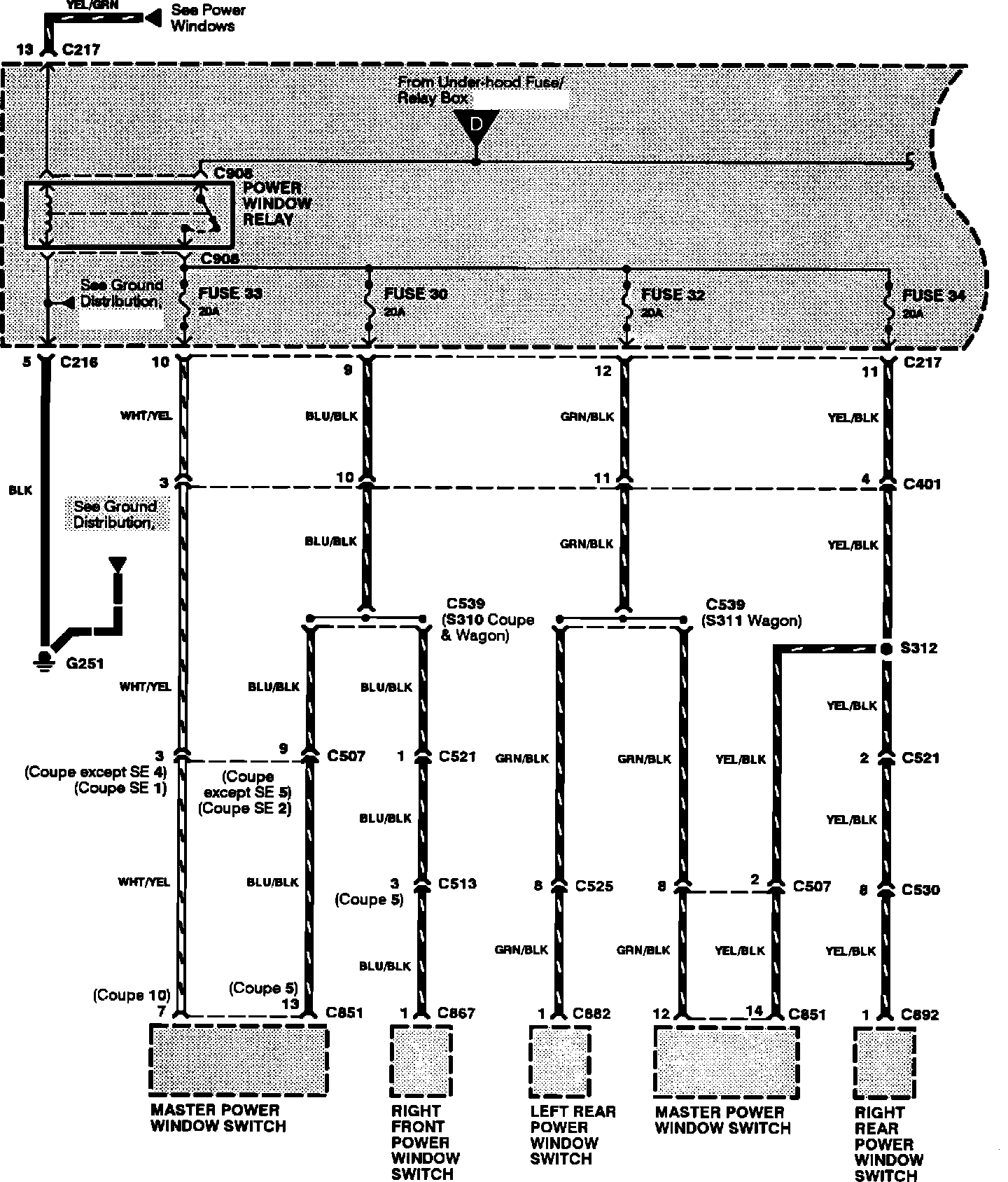

Fuse 33, 30, 32, 34

Power Distribution:
