Home >> Honda >> 1993 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> Under-Hood Fuse/Relay Box >> Fuse 20, 25, 15, 24

Fuse 20, 25, 15, 24

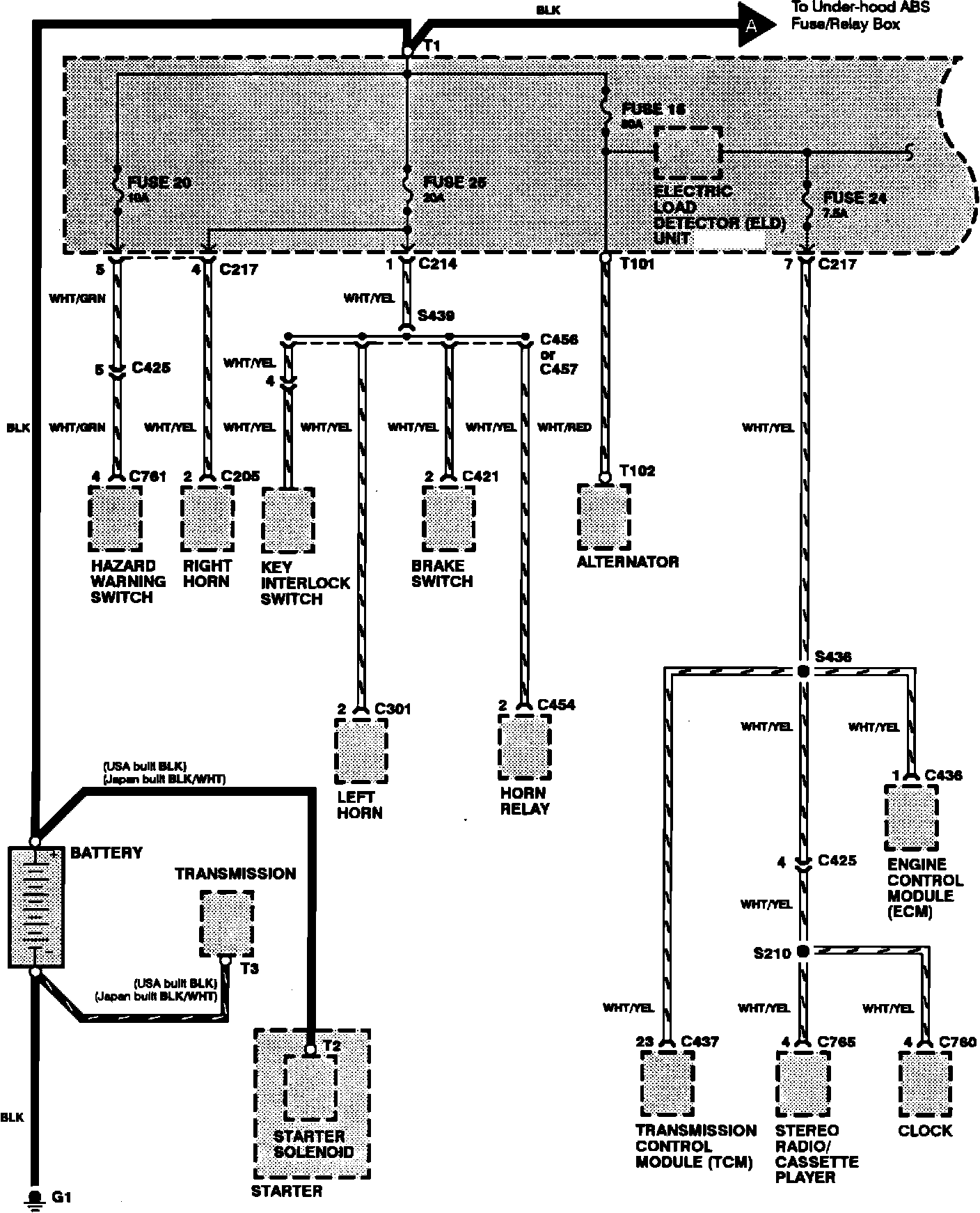

Power Distribution:
