Curiosii for ever!: Car repair manuals for everyone.
Home >> Honda >> 1993 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Keyless Entry >> USA Wagon Ex, Canada Wagon Ex-R

USA Wagon Ex, Canada Wagon Ex-R

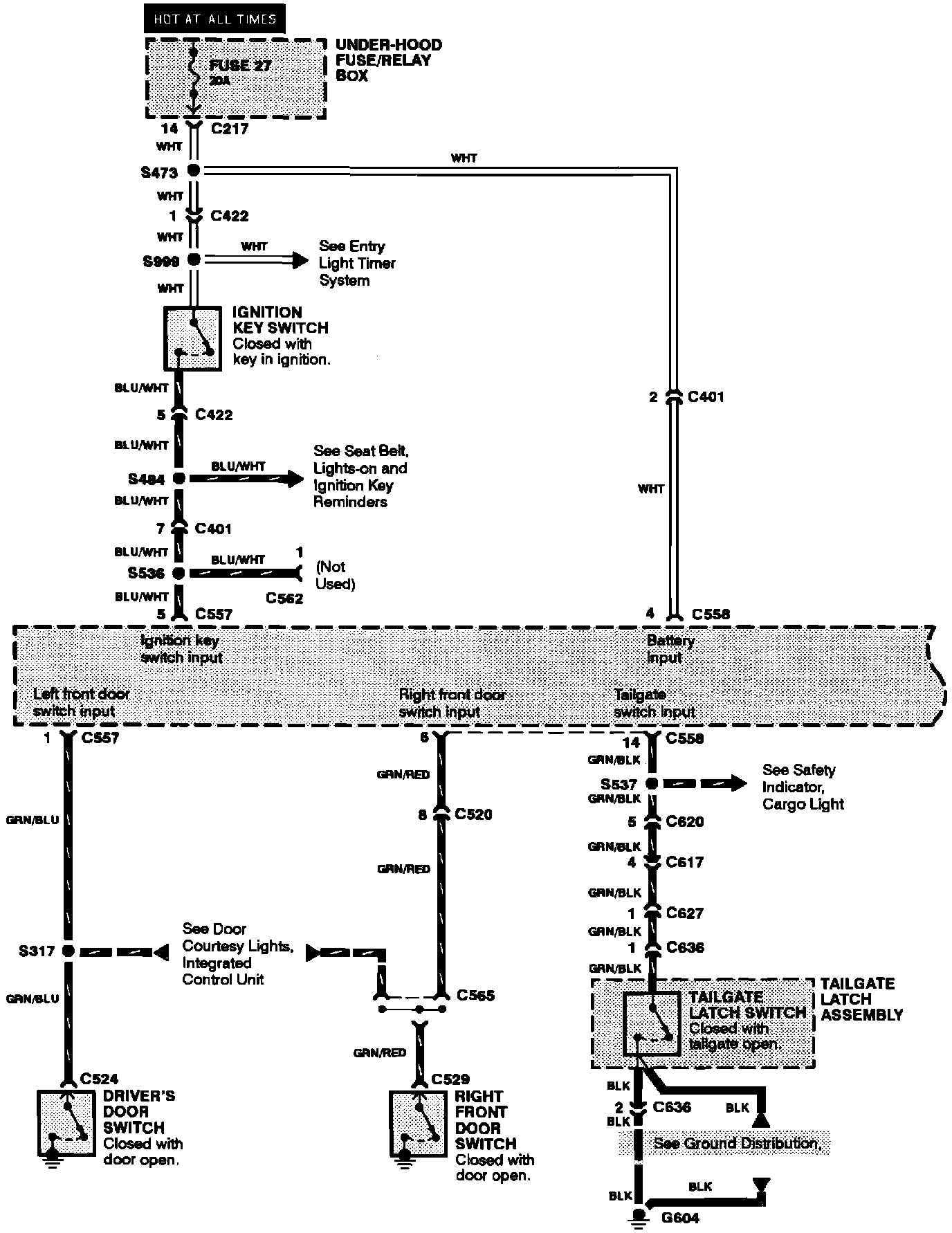

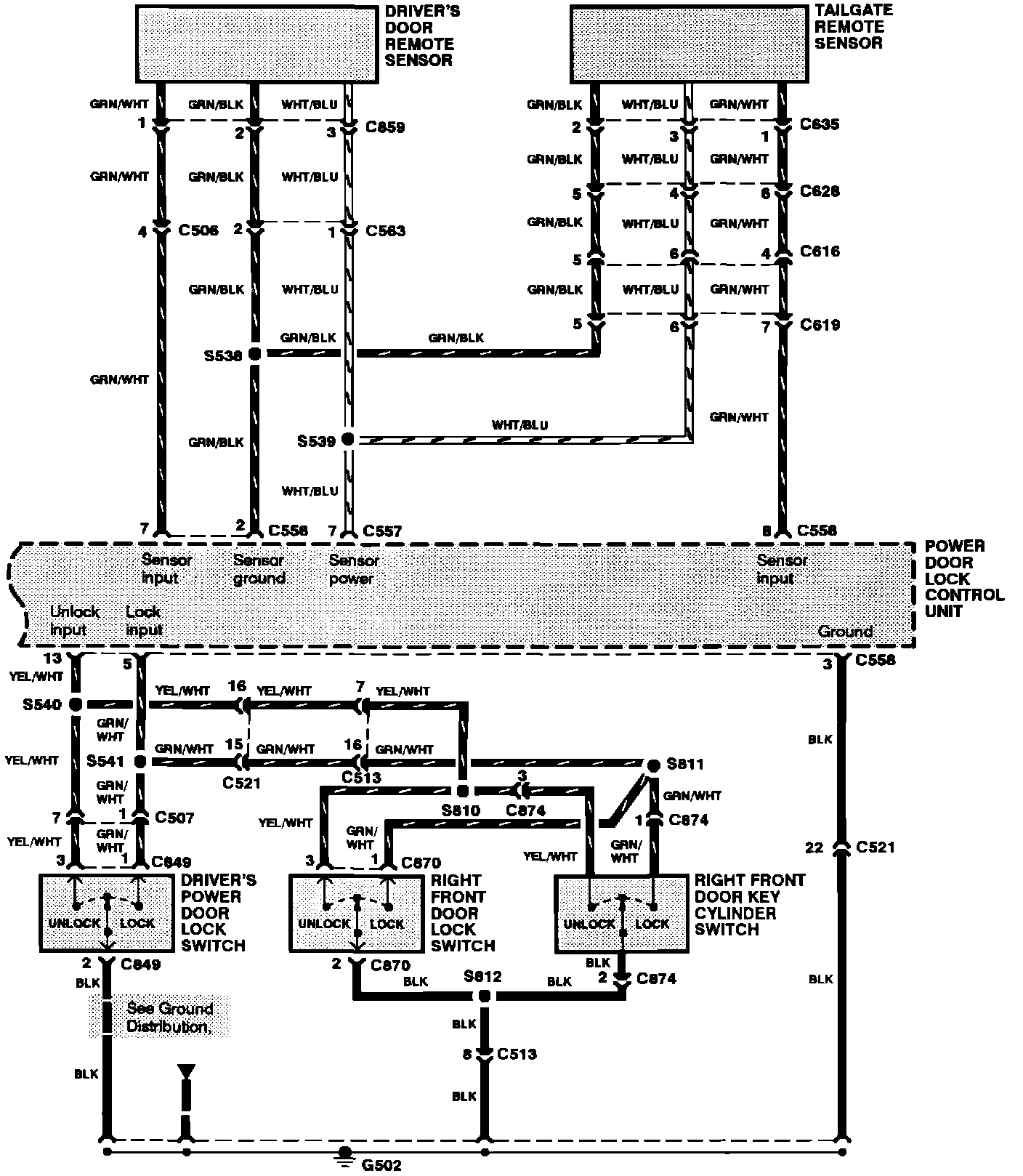

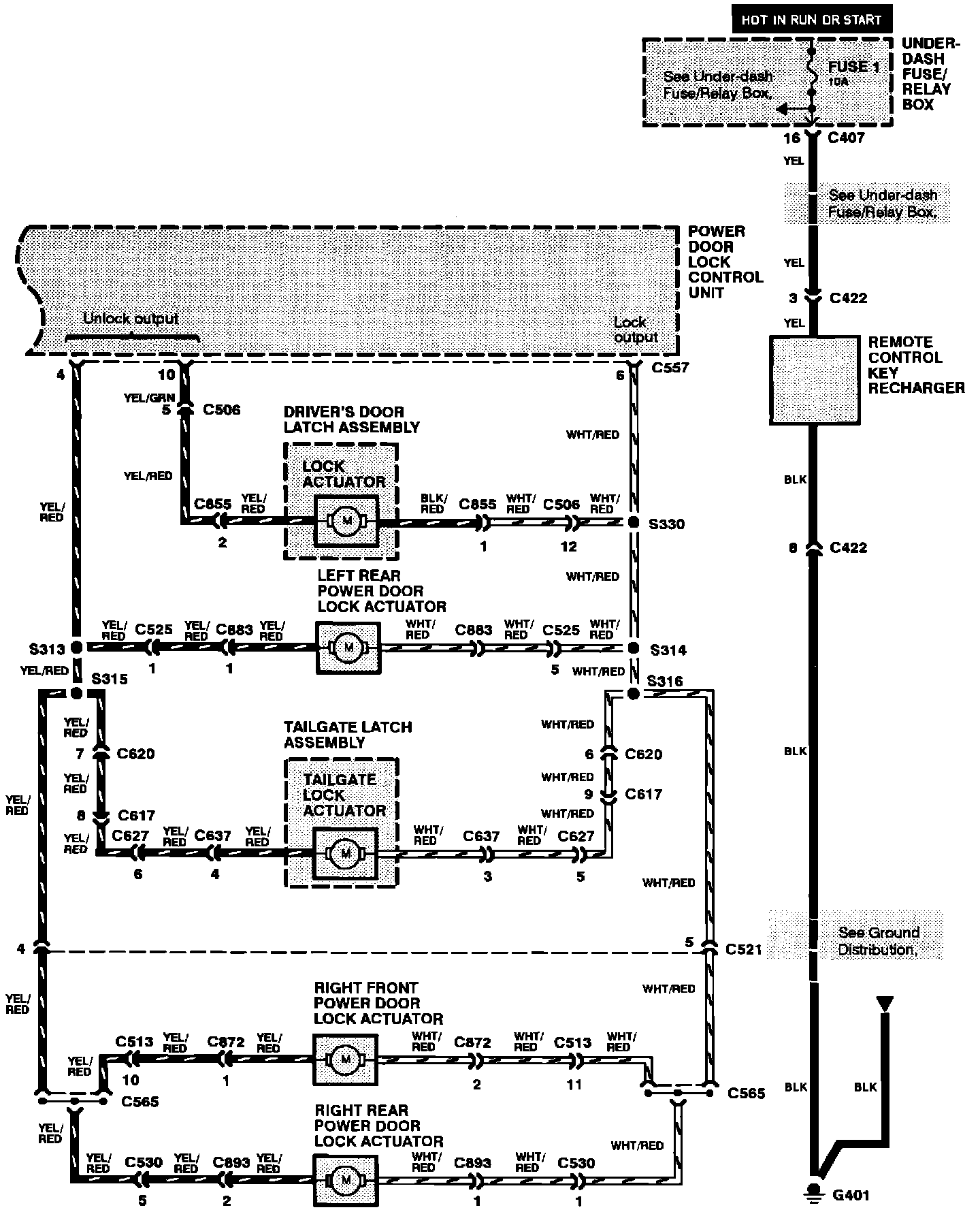

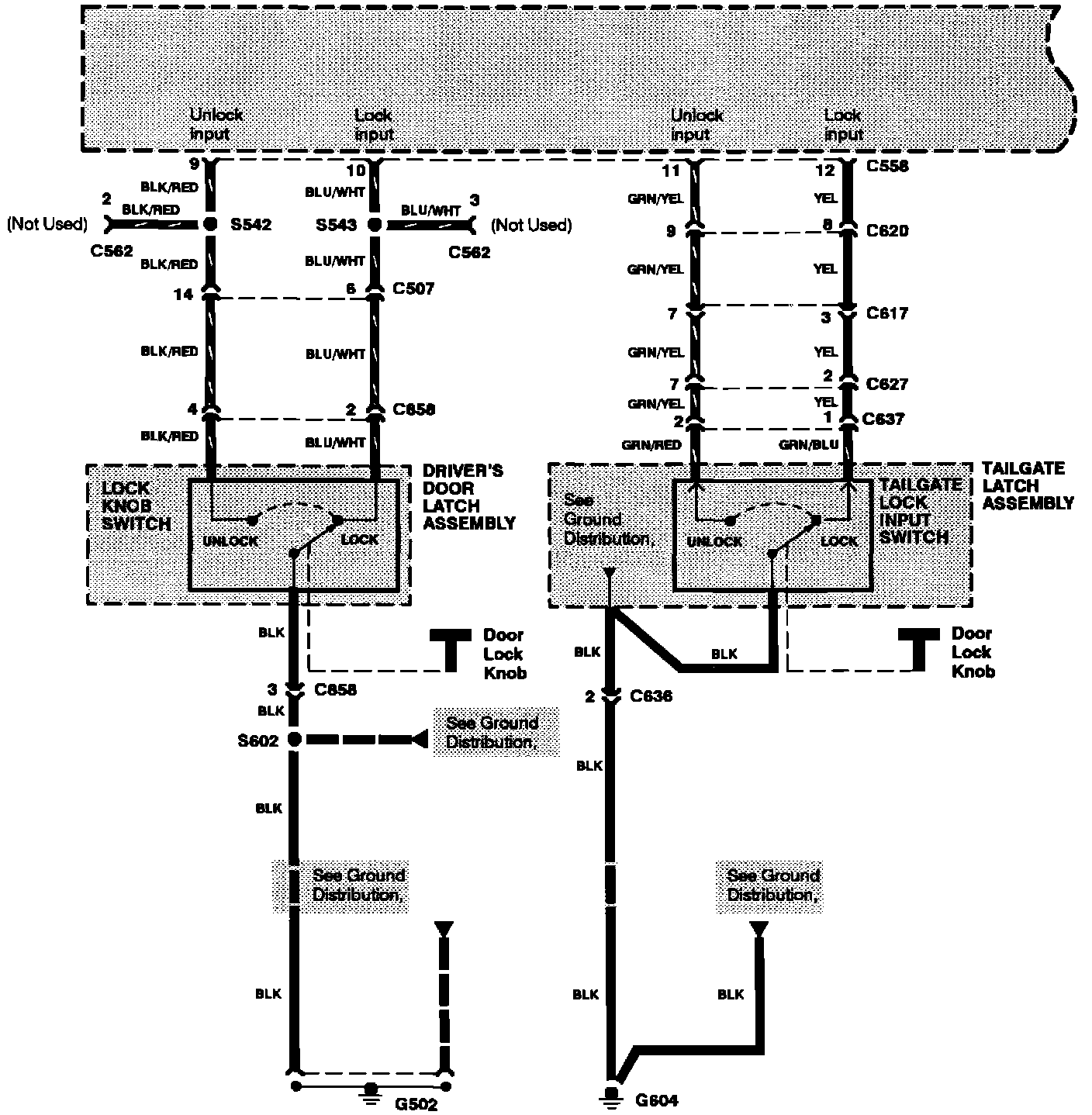

Keyless Entry (USA Wagon EX, Canada Wagon EX-R):



Keyless Entry (USA Wagon EX, Canada Wagon EX-R):



Keyless Entry (USA Wagon EX, Canada Wagon EX-R):



Keyless Entry (USA Wagon EX, Canada Wagon EX-R):
