Accord L4-2156cc 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
>>
System Diagram
>>
Wiring Diagrams
Wiring Diagrams

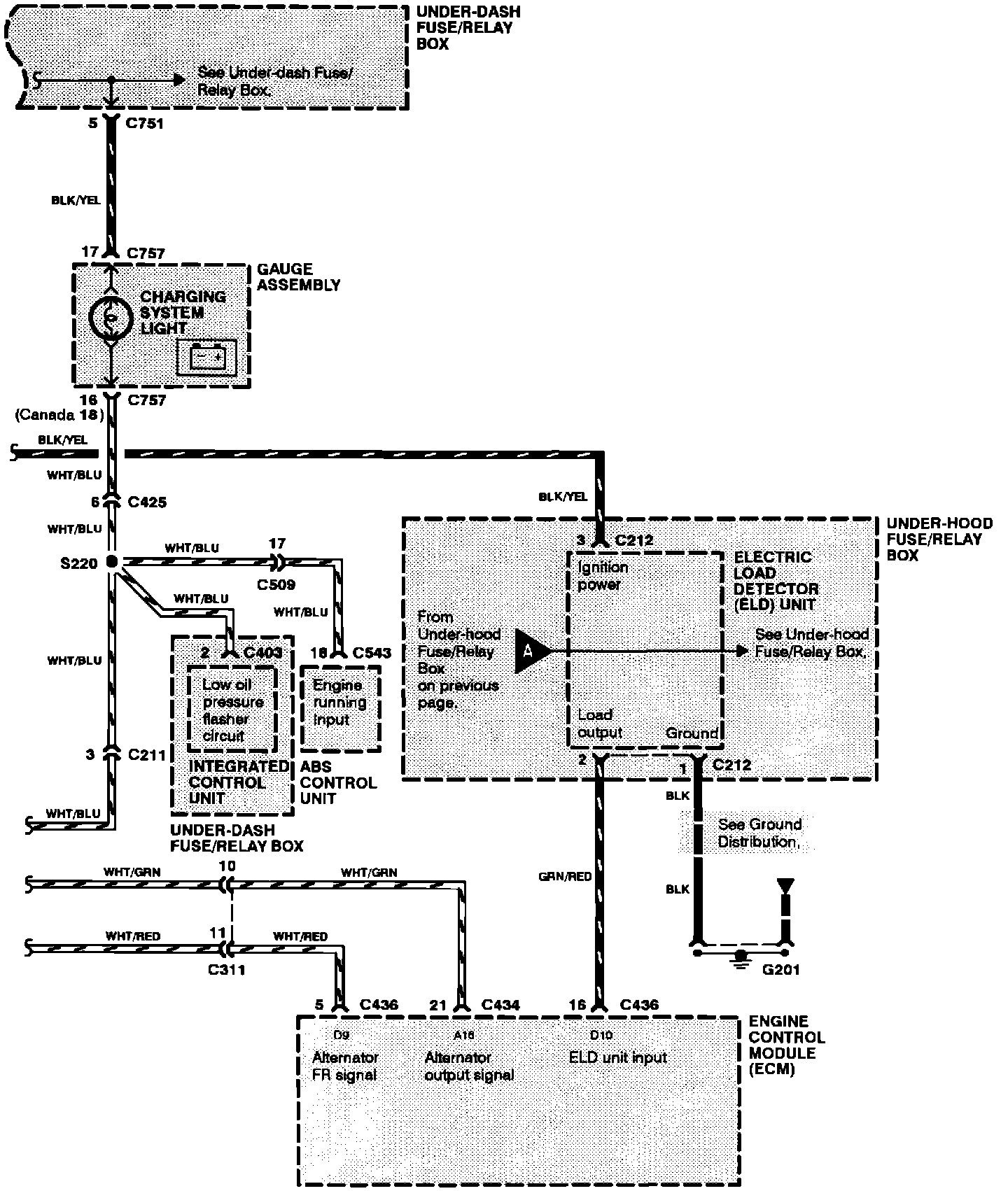

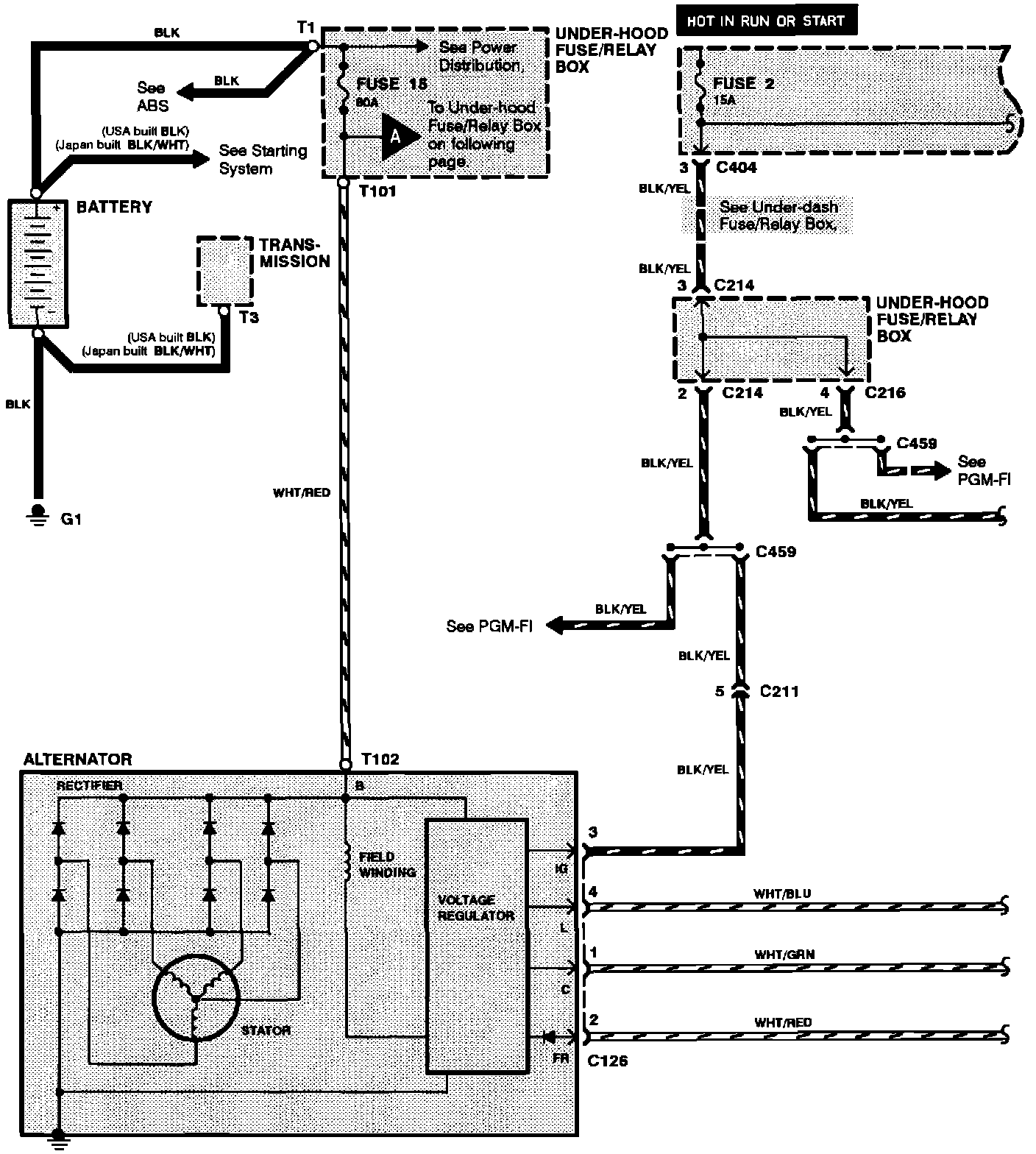

Charging System:
Charging System:
