Accord L4-2156cc 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
>>
System Diagram
>>
Circuit Diagram
Circuit Diagram

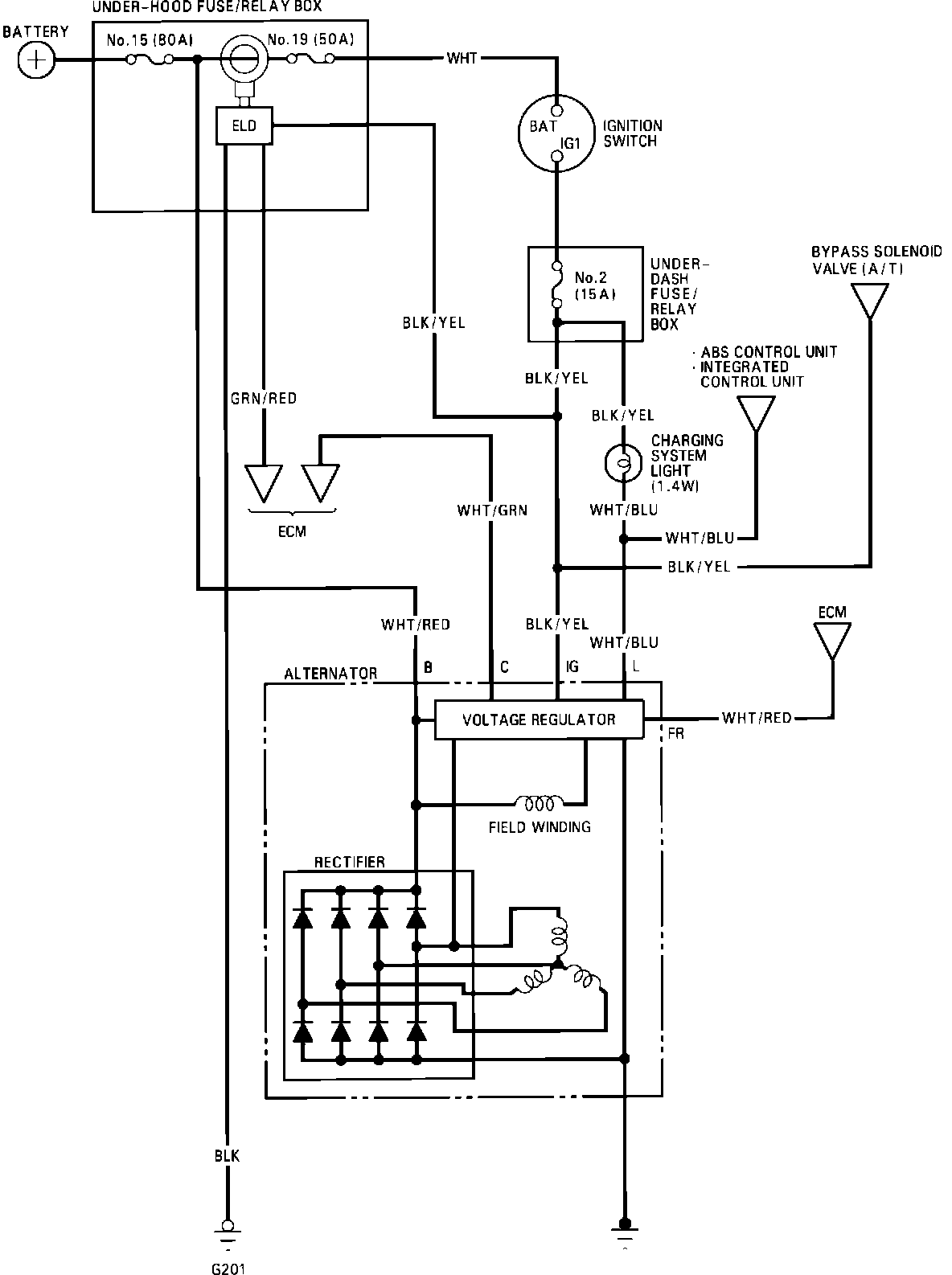

Schematic Diagram Charging System:
