Home >> Honda >> 1993 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Computers and Control Systems >> Engine Control Module >> Electronic System Connector Views

Electronic System Connector Views

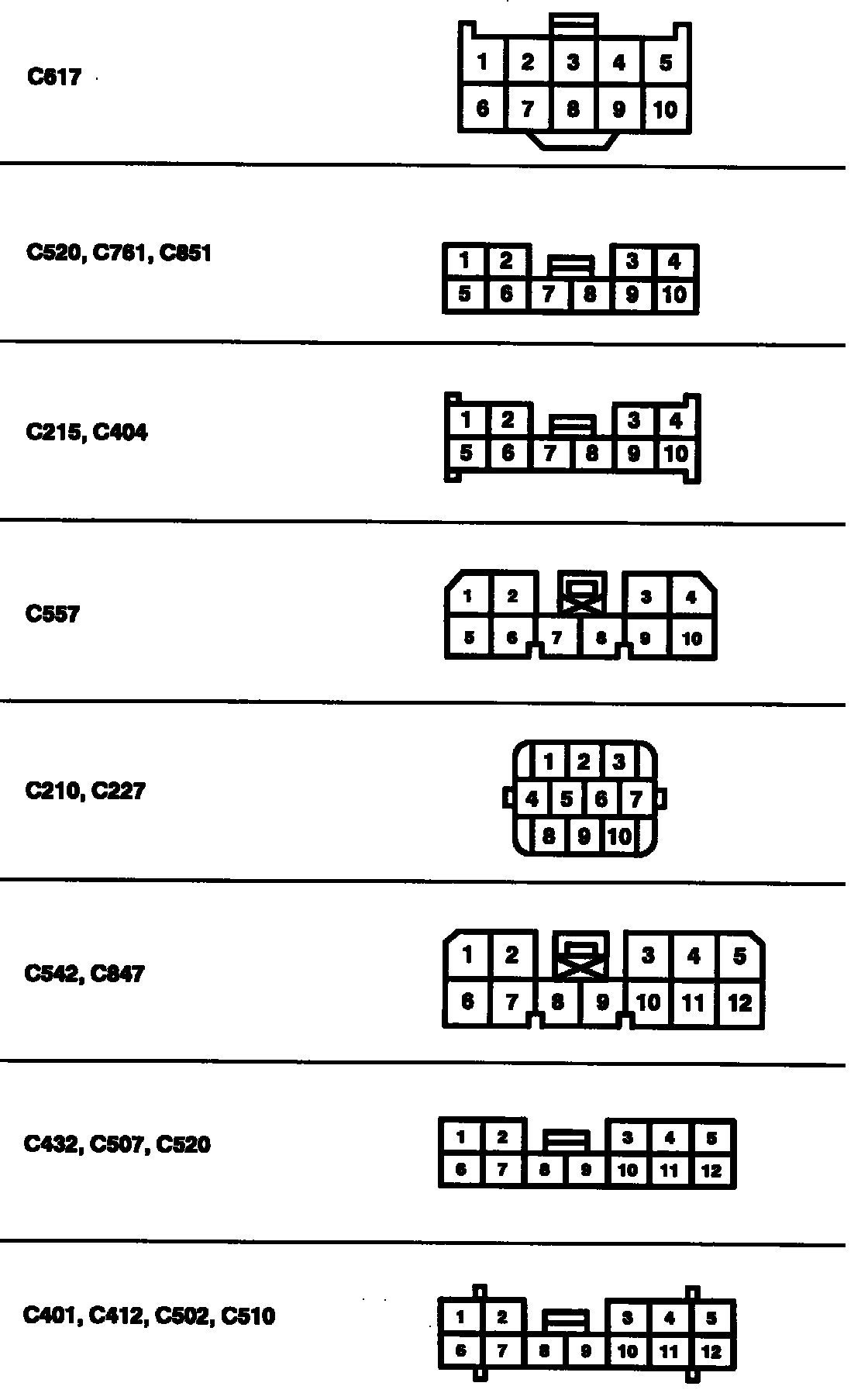

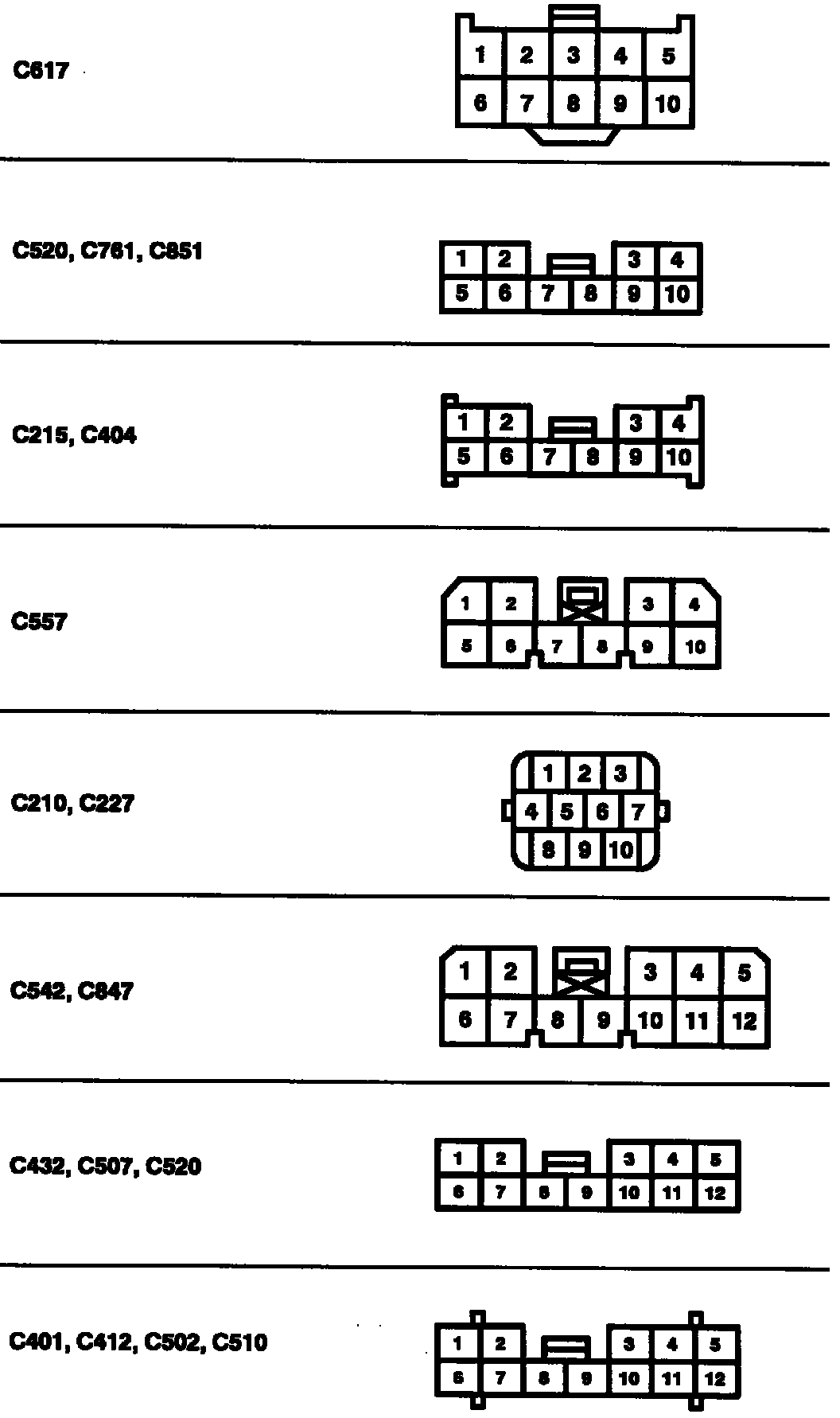

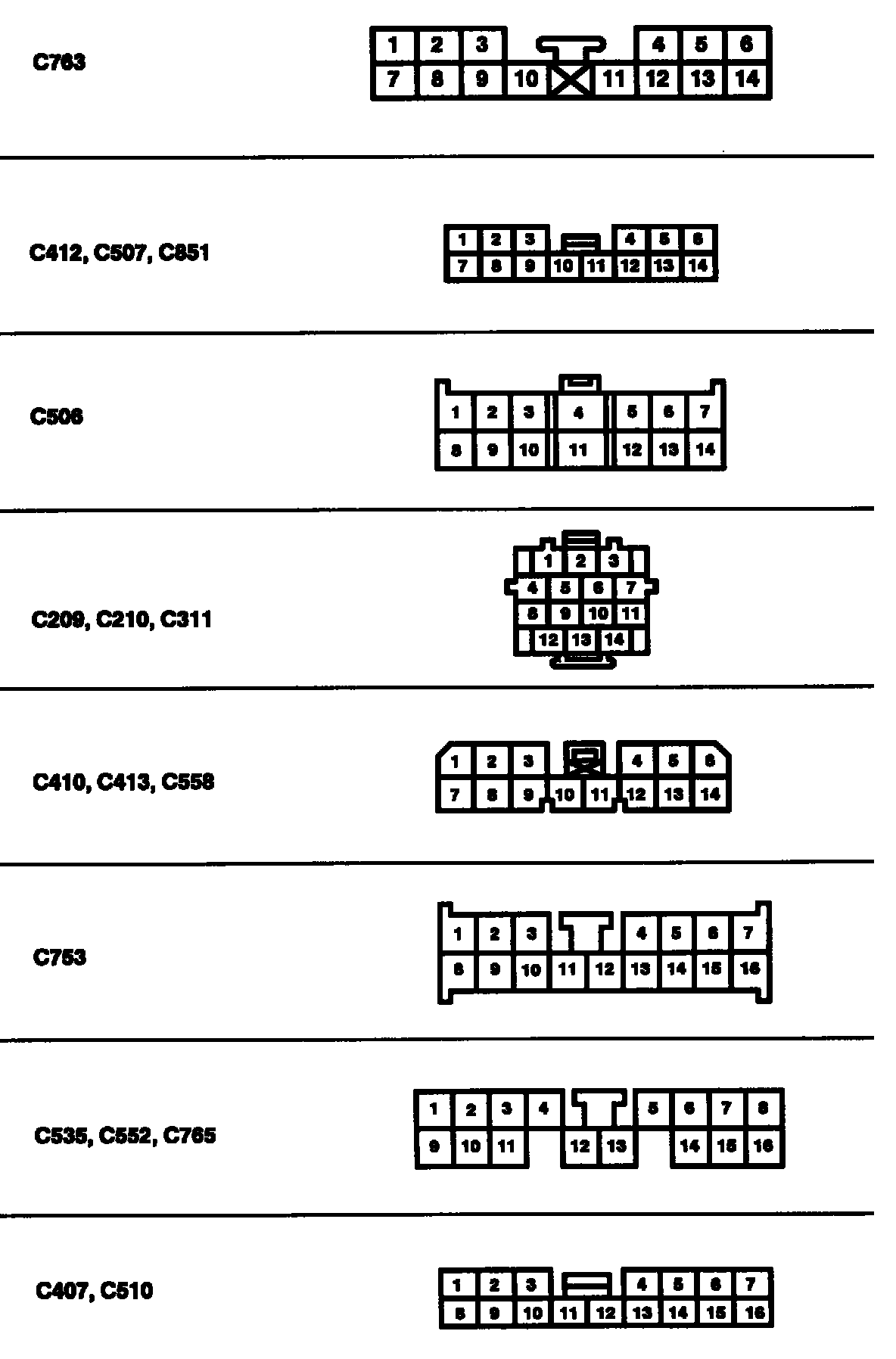

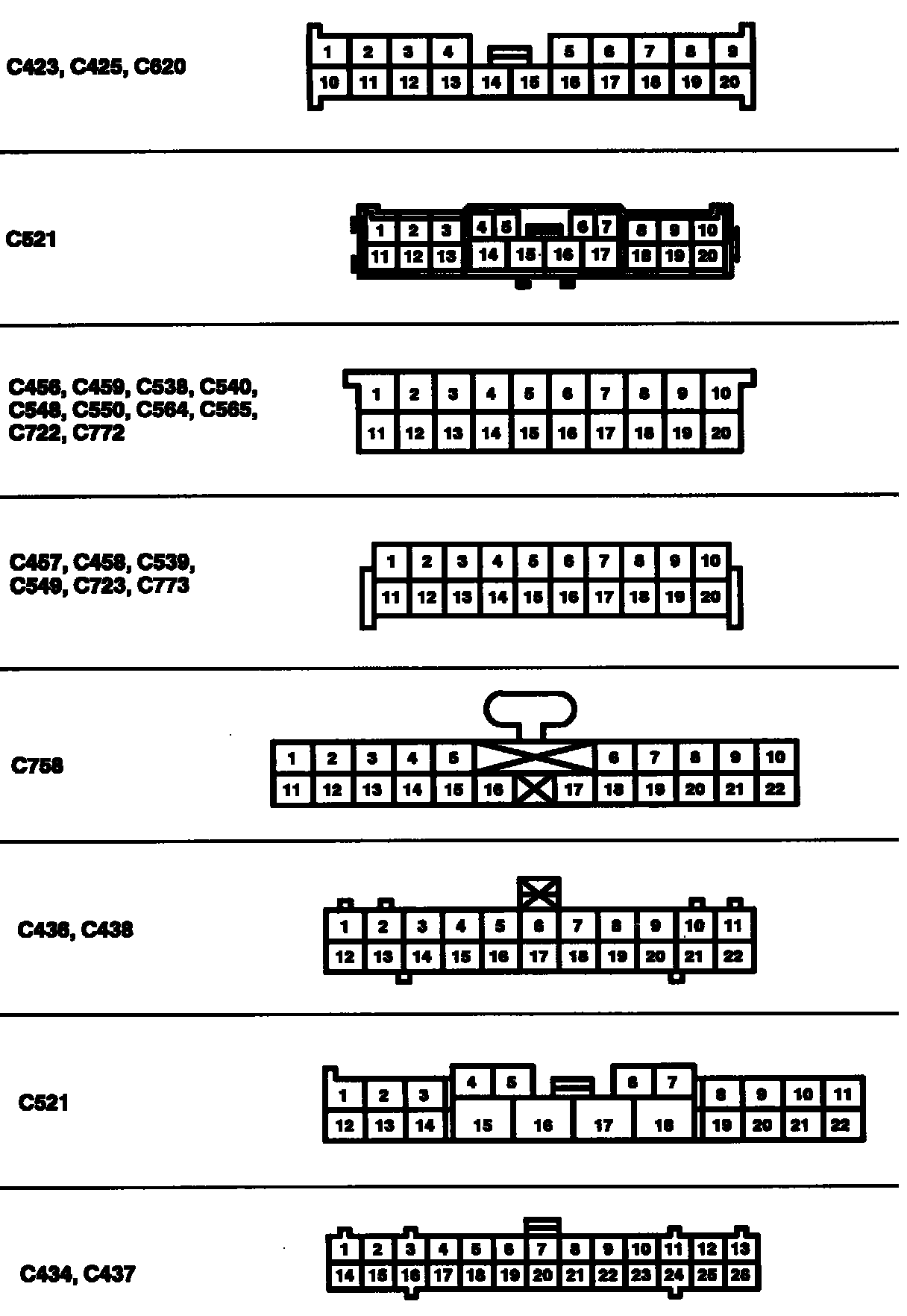

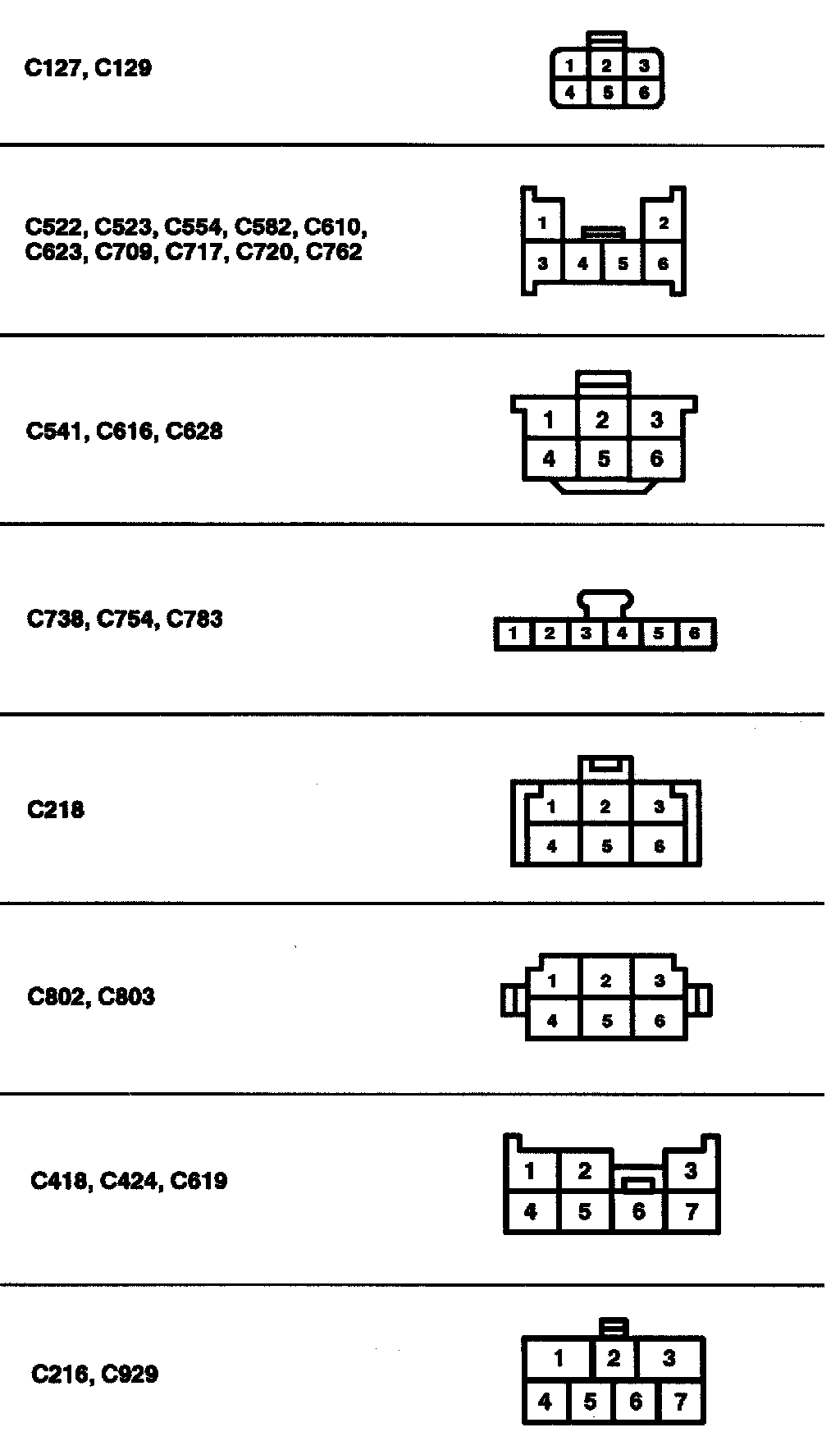

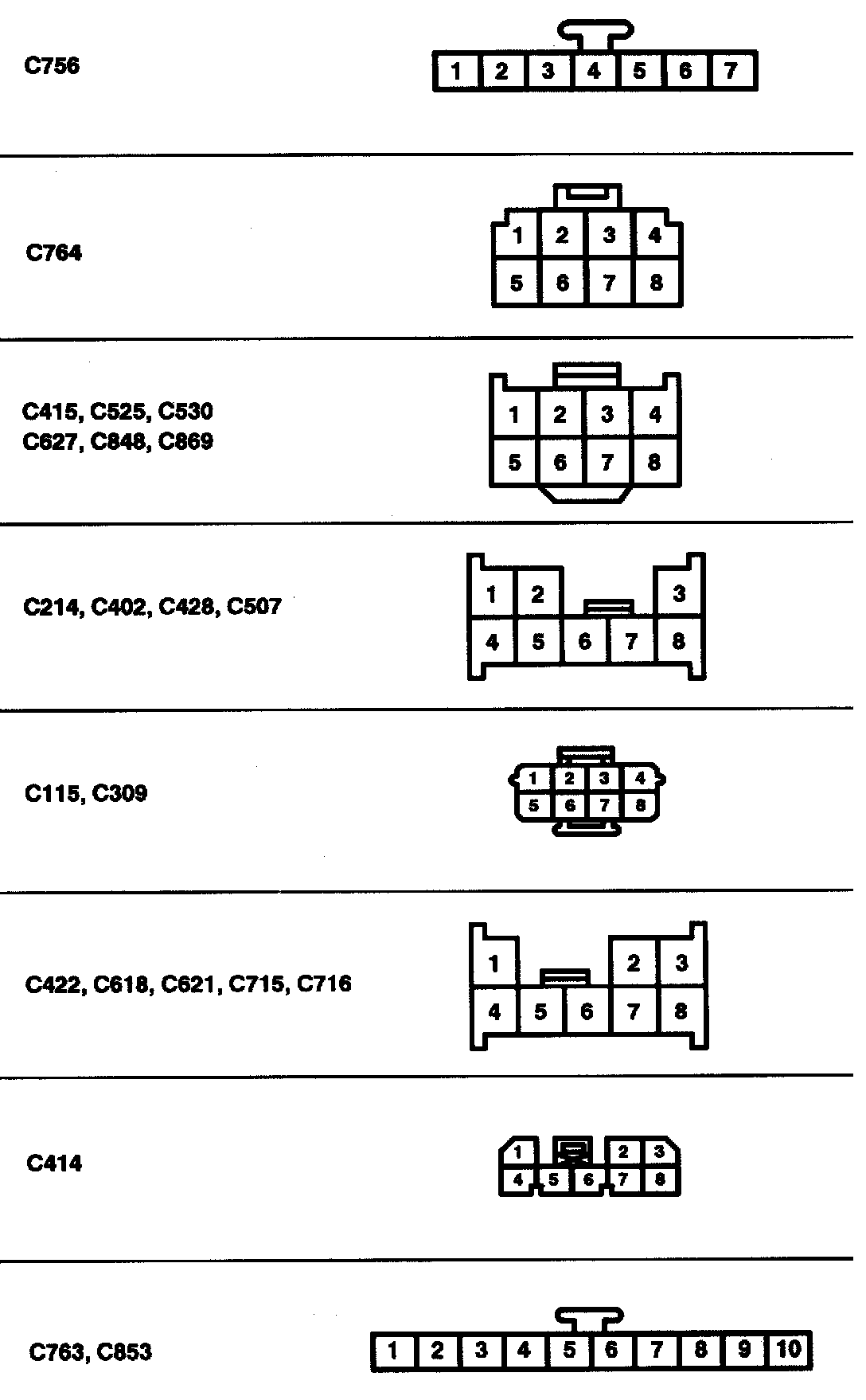

Connector Cavity Numbering
