Accord L4-2156cc 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
>>
Engine Control Module
>>
ECM Terminal ID

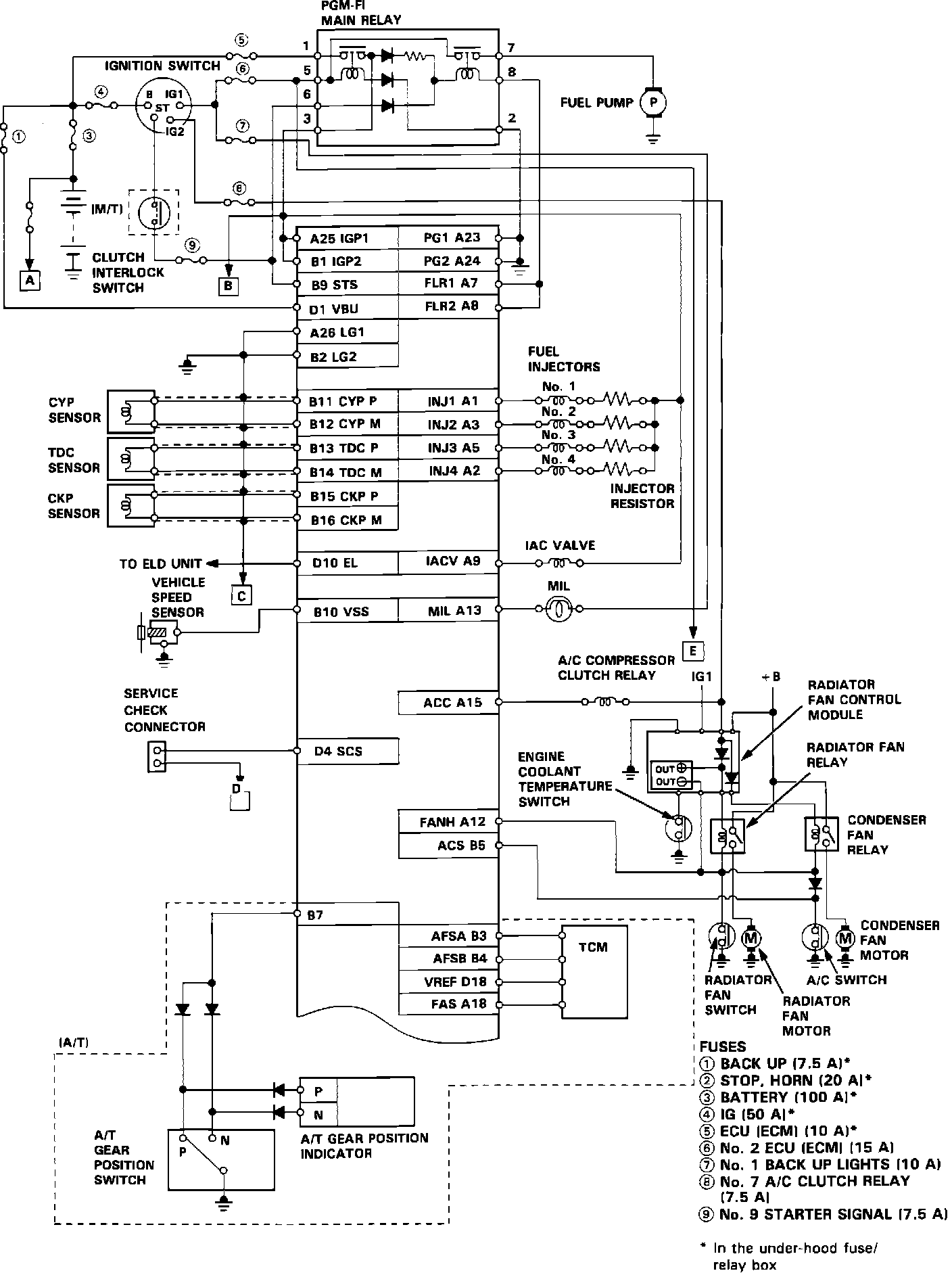

ECM Terminal ID

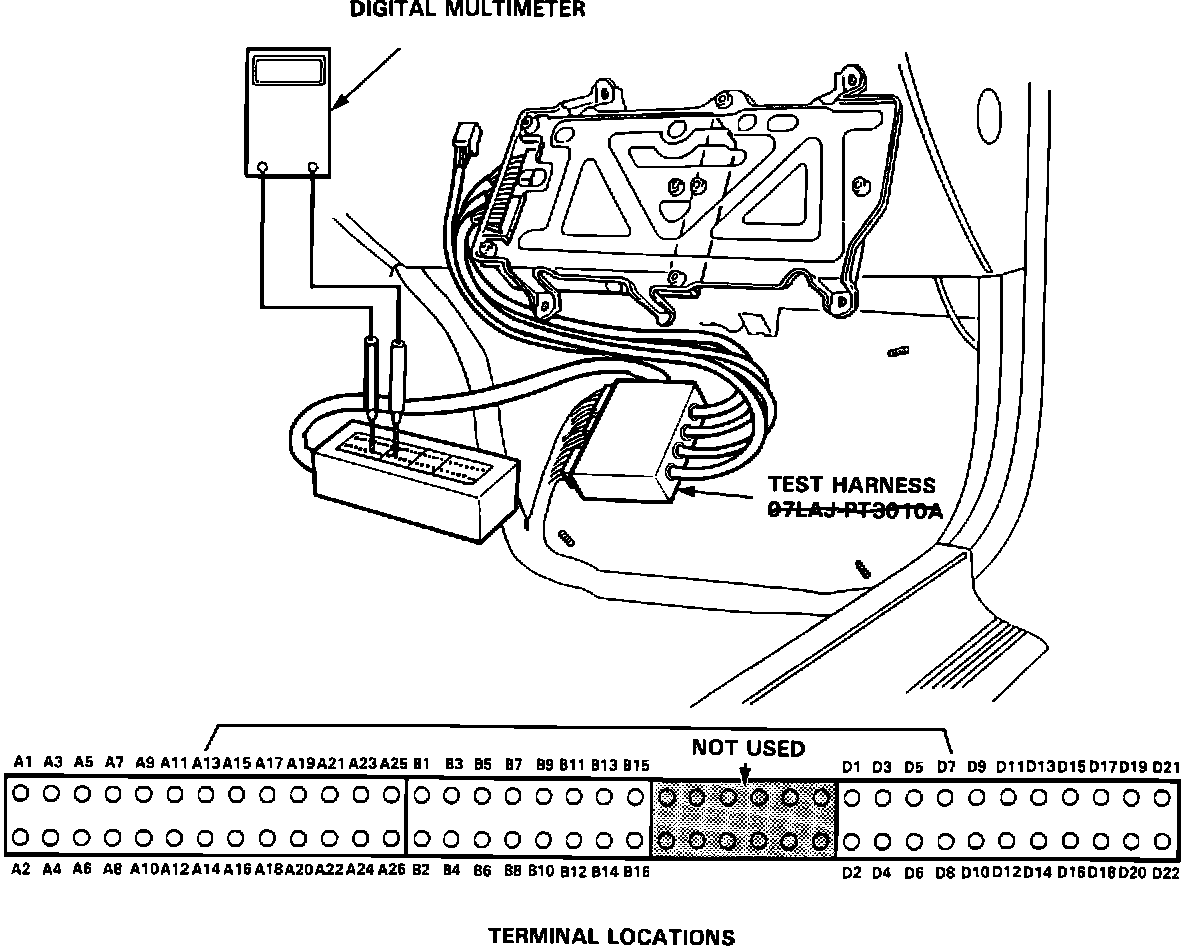

Test Harness And Terminal Locations:
