Brake Fluid Pump Relay: Testing and Inspection

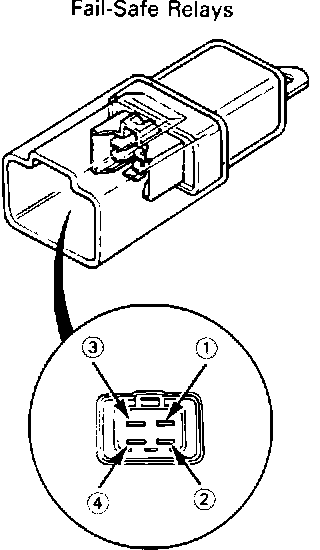

Fail-Safe Relays:

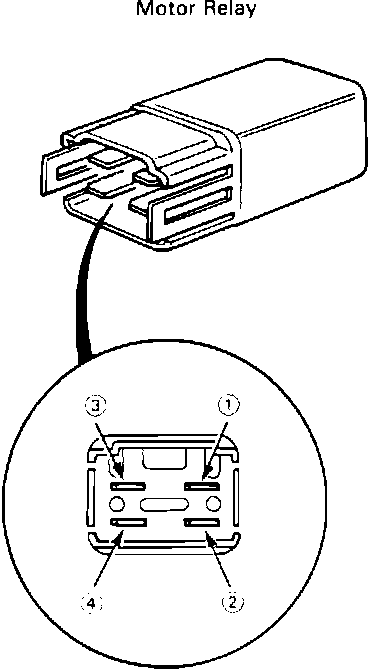

Motor Relay:

1. Check for continuity between terminals 3 and 4.

^ There should be no continuity.


2. Connect a 12V battery across terminals 1 and 2.

^ There should be continuity between terminals 3 and 4.
