Removal

Tension Spring Locations:

1. Remove the tension pins by pushing the retainer spring and turning them.
2. Lower the brake shoe assembly and remove the lower return spring.

NOTE: Make sure not to damage the dust cover on the wheel cylinder.

Upper Return Spring Removal/Installation:

3. Remove the upper return spring from the brake shoe as shown.

WARNING! Wear eye protection when using the brake spring tool.

4. Remove the brake shoe assembly.

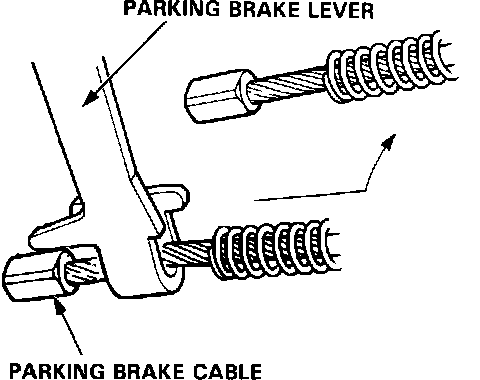

Parking Brake Cable / Lever:

5. Disconnect the parking brake cable from the parking brake lever.

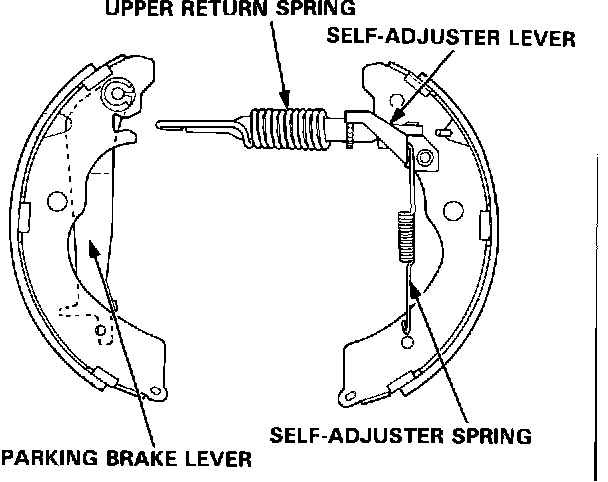

Self - Adjuster And Return Spring:

6. Remove the upper return spring, self-adjuster lever and self-adjuster spring, and separate the brake shoes.

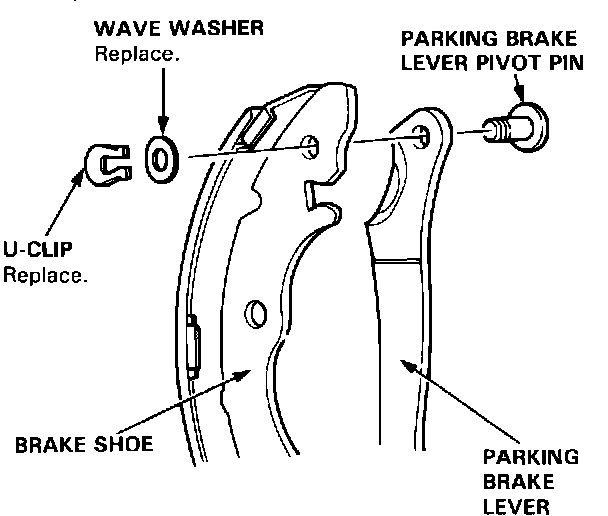

Parking Brake Lever Removal:

7. Remove the wave washer, parking brake lever and pivot pin from the brake shoe by removing the U-clip.
