Installation

1. Apply brake cylinder grease to the sliding surface of the pivot pin, and insert the pin into the brake shoe.

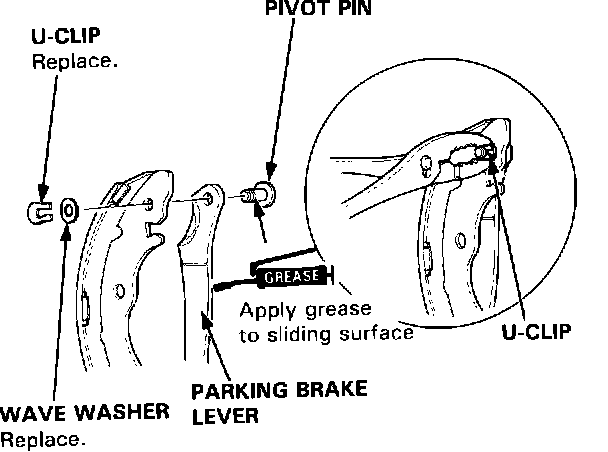

Parking Brake Lever Installation:

2. Install the parking brake lever and wave washer on the pivot pin and secure with U-clip.

NOTE: Pinch the U-clip securely to prevent the pivot pin from coming out of the brake shoe.

3. Connect the parking brake cable to the parking brake lever.

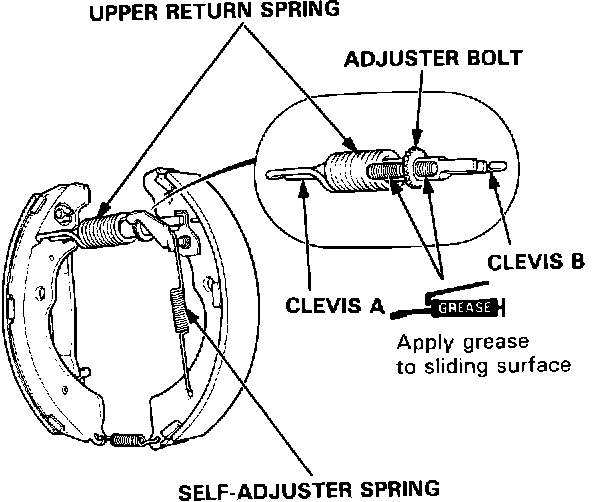

Upper Return Spring And Self-Adjuster Installation:

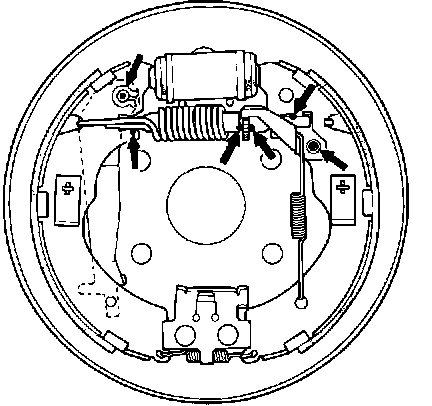

Grease At Arrows With Rubber Grease:

Grease With Molykote M77 At Arrows:

4. Apply grease on each sliding surface.

WARNING!

^ Contaminated brake linings reduce stopping power. Keep grease or oil off the brake linings. Wipe any excess grease off the parts.
^ Contaminated brake linings reduce stopping power. Keep grease or oil off the brake linings. Wipe any excess grease oft the parts.

5. Clean the threaded portions of devises A and B. Coat the threads of the devises with grease. To shorten the devises, turn the adjuster bolt.
6. Hook the adjuster spring to the adjuster lever first, then to the brake shoe.
7. Install the brake shoes onto the backing plate.


NOTE: Make sure not to damage the wheel cylinder dust covers.

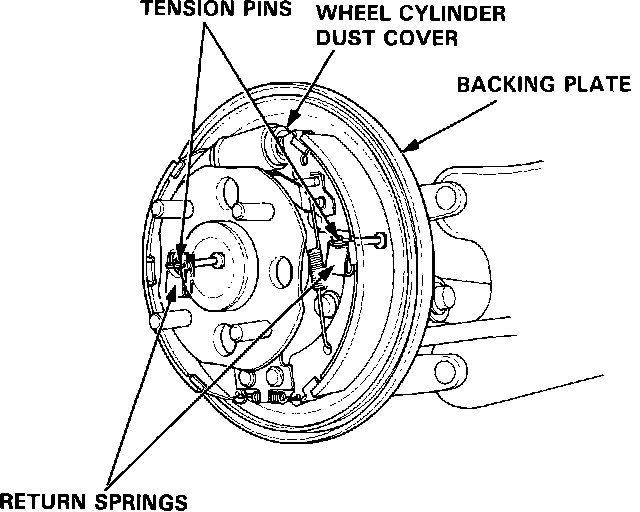

Tension Spring Locations:

8. Install the tension pins and the return springs.

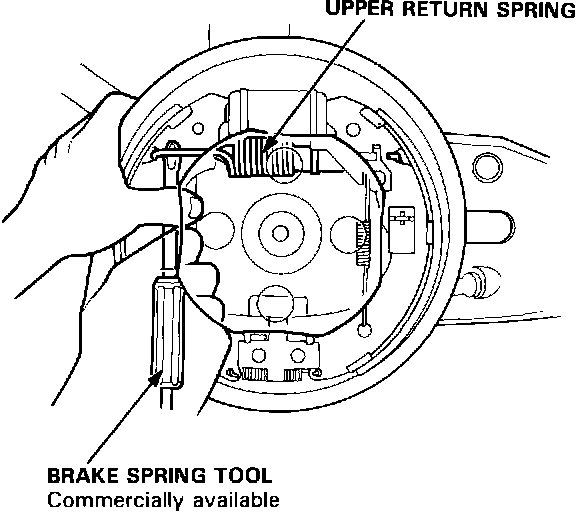

Upper Return Spring Removal/Installation:

9. Install the upper return spring as shown.


WARNING! Wear eye protection when using the brake spring tool.

10. Install the brake drum.
11. If the wheel cylinder has been removed, bleed the brake system. Check for leaks at brake pipe connections, and retighten if necessary.
12. Depress the brake pedal several times to set the self adjusting brake.
13. Adjust the parking brake.
14. Install the rear wheels.
