Console: Service and Repair

Console Replacement

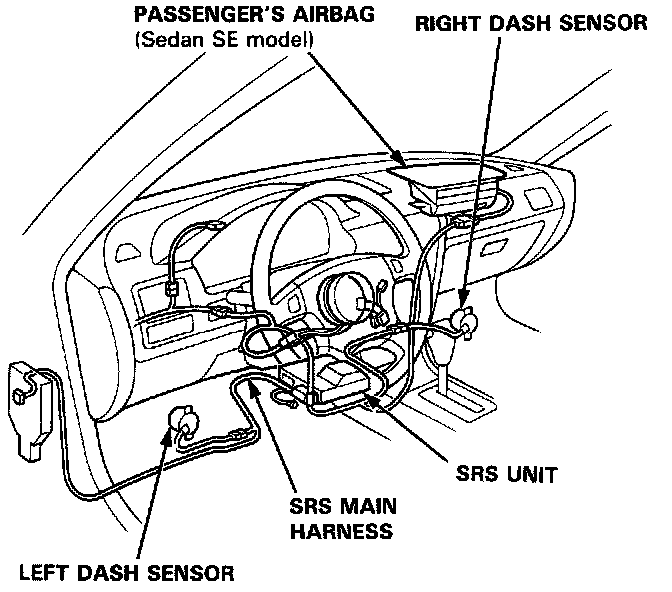

SRS harnesses are routed near the console.

CAUTION:
All SRS electrical wiring harnesses are covered with yellow outer insulation.

^ Before disconnecting the SRS wire harness, install the short connector(s) on the airbag(s). Service and Repair
^ Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.

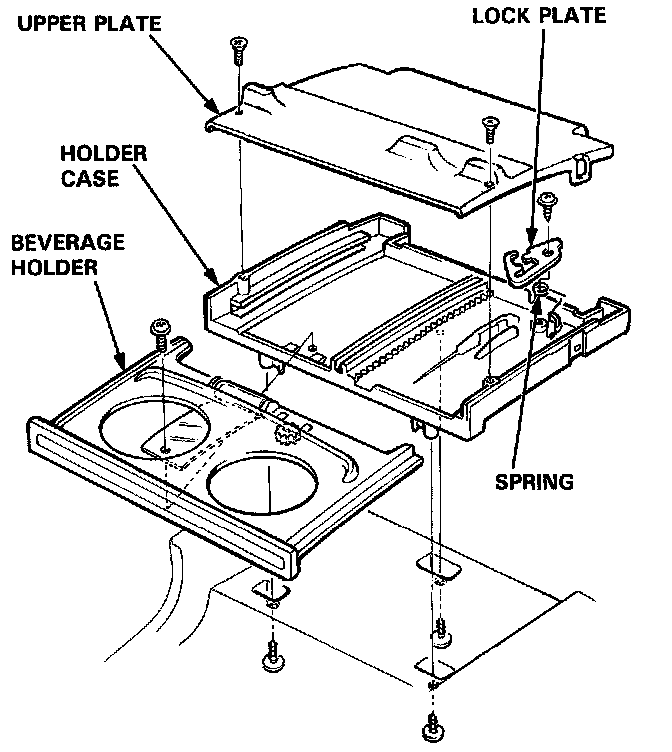

Beverage Holder removal:

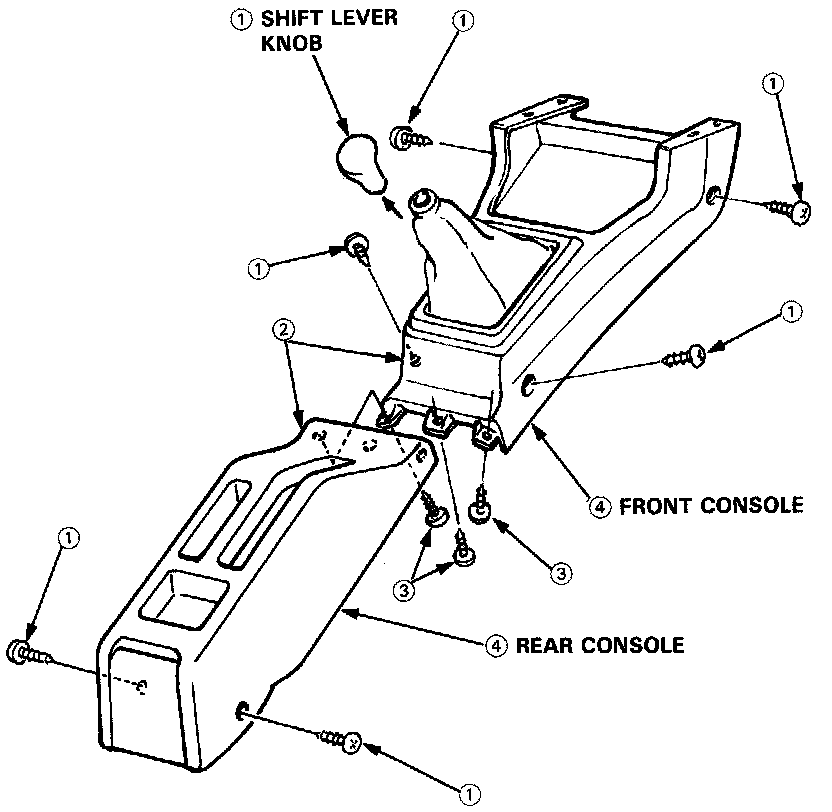

Disassemble in numbered sequence.

NOTE:
^ Lift up the parking brake lever.
^ For manual transmission models, remove the shift lever knob.
^ Remove the front and rear console as an assembly.
