Installation

1. Apply brake cylinder grease (P/N: 08733-BO2OEl or equivalent rubber grease to the sliding surface of the pivot pin, and insert the pin into the brake shoe.

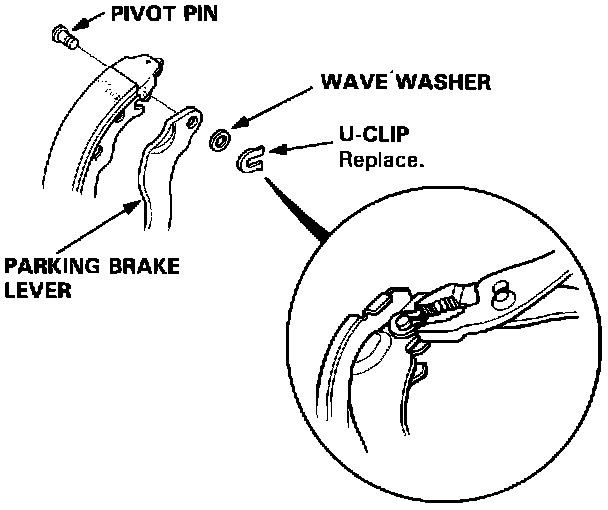

Parking Brake Lever Installation:

2. Install the parking brake lever and wave washer on the pivot pin and secure with U-clip.

NOTE: Pinch the U-clip securely to prevent the pivot pin from coming out of the brake shoe.

3. Connect the parking brake cable to the parking brake lever.
4. Apply grease on each sliding surface.

WARNING: Contaminated brake linings reduce stopping ability. Keep grease or oil off the brake linings. Wipe any excess grease off the parts.

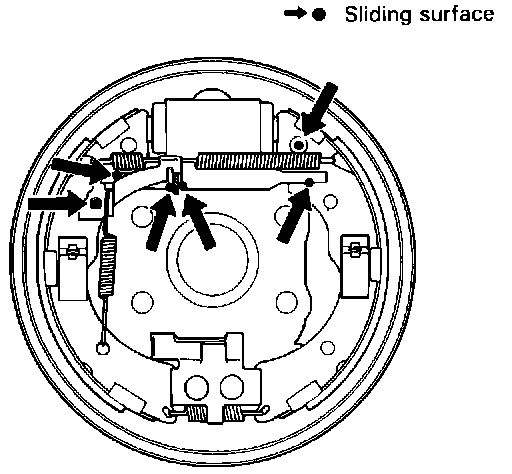

Lubricating Sliding Surfaces:

^ Apply brake cylinder grease (P/N: 08733-BO2OE) or equivalent rubber grease to the sliding surfaces as shown.

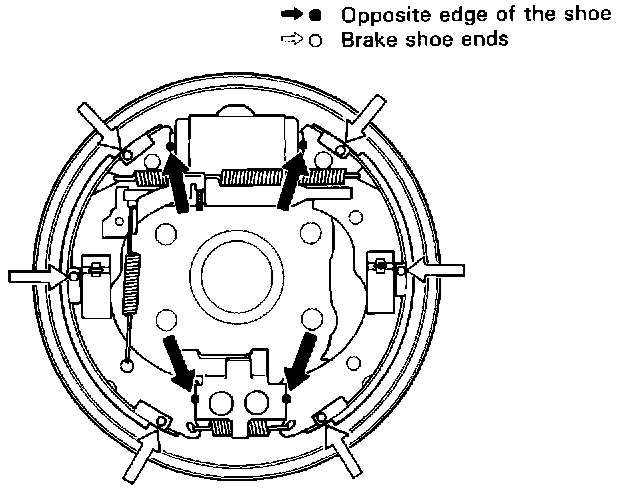

Brake Shoe Lubrication Points:

^ Apply Molykote 44MA to the brake shoe ends and opposite edges of the shoes as shown.

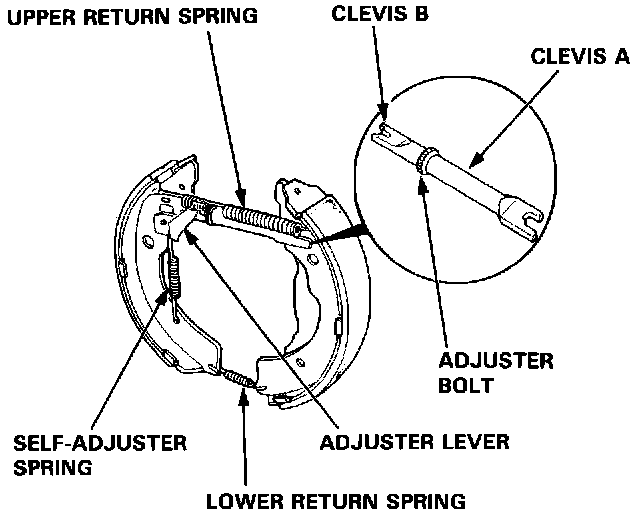

5. Clean the threaded portions of clevices A and B. Coat the threads of the clevices with grease. To shorten the clevices, turn the adjuster bolt.
6. Hook the adjuster spring to the adjuster lever first, then to the brake shoe.
7. Install the clevices and upper return spring noting the installation direction.

NOTE: Be careful not to damage the wheel cylinder dust covers.

8. Install the lower return spring.

Tension Pins And Retaining Spring Installation:

9. Install the tension pins and retaining springs.
10. Install the brake drum.
11. If the wheel cylinder has been removed, bleed the brake system, refer to Brakes and Traction Control/Brakes/Service and Repair, and check for leaks at brake pipe connections; retighten if necessary.
12. Depress the brake pedal several times to set the self-adjusting brake.
13. Adjust the parking brake, refer to Adjustments / Parking Brake.
