Brake Fluid Pump: Service and Repair

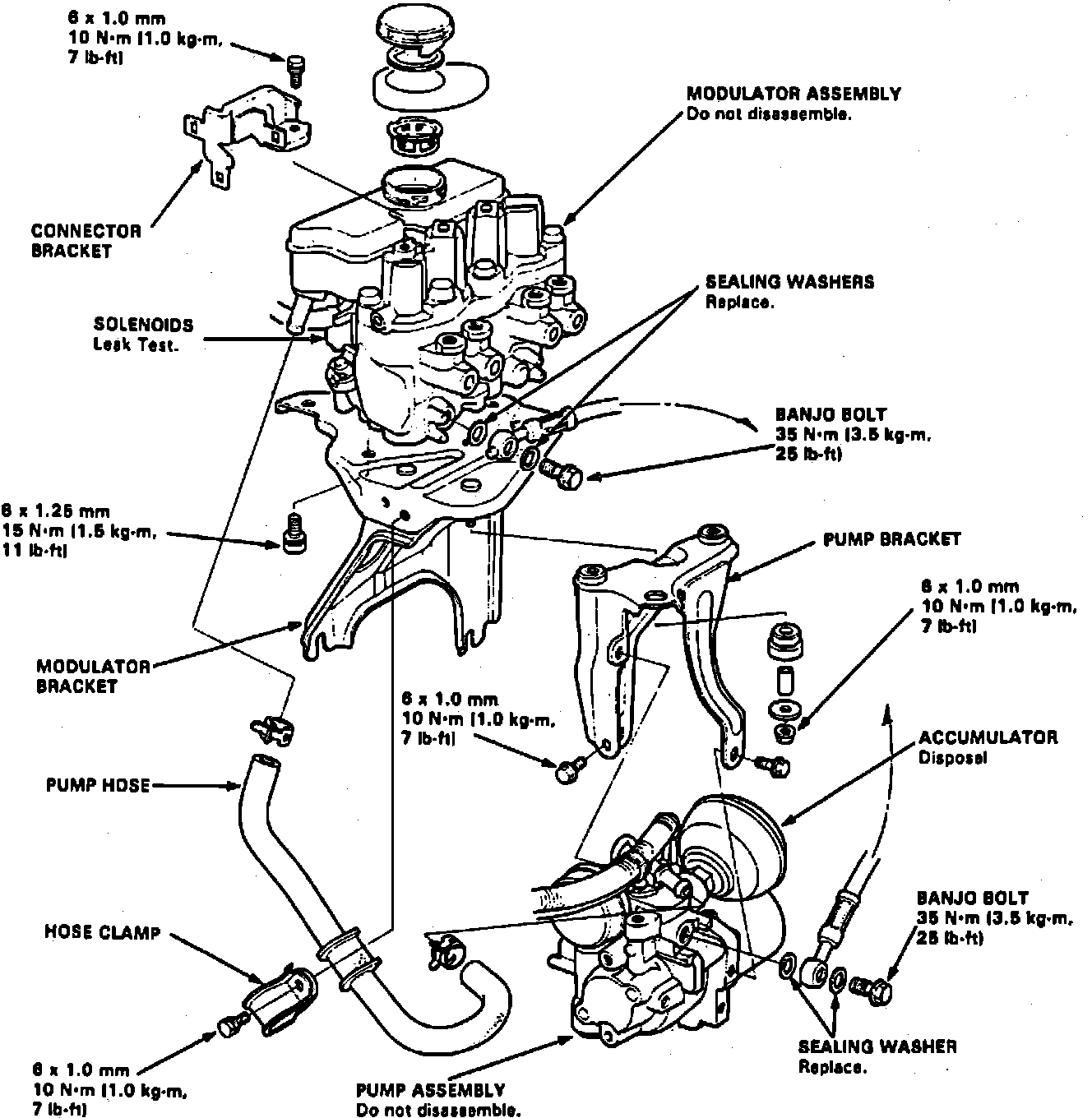

Fig. 94 Replacing Power Unit.:





Refer to Fig. 94 when replacing power unit.
