Illustrated Index

Part 1:

Part 2:

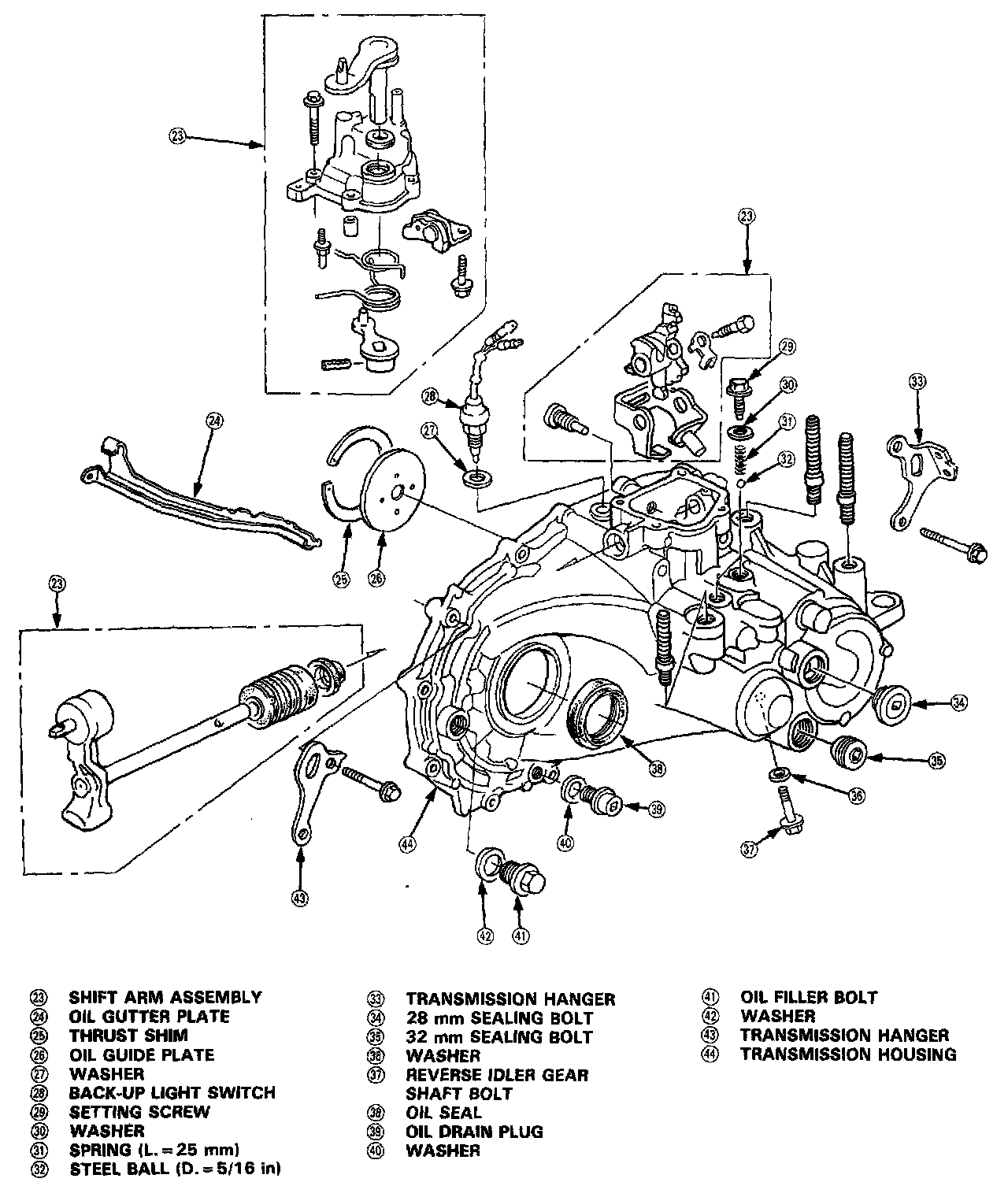

Refer to the drawing for the transmission disassembly.
Clean all parts thoroughly in solvent and dry with compressed air.

Lubricate all parts with oil before reassembly.

NOTE: This transmission uses no gaskets between the major housings; use Honda Genuine Liquid Gasket (P/N 08718-0001). Assembly the housings within 20 minutes after applying the liquid gasket and allow it to cure at least 30 minutes after assembly before filling the transmission with oil.
