Intermediate Shaft Disassembly/Assembly

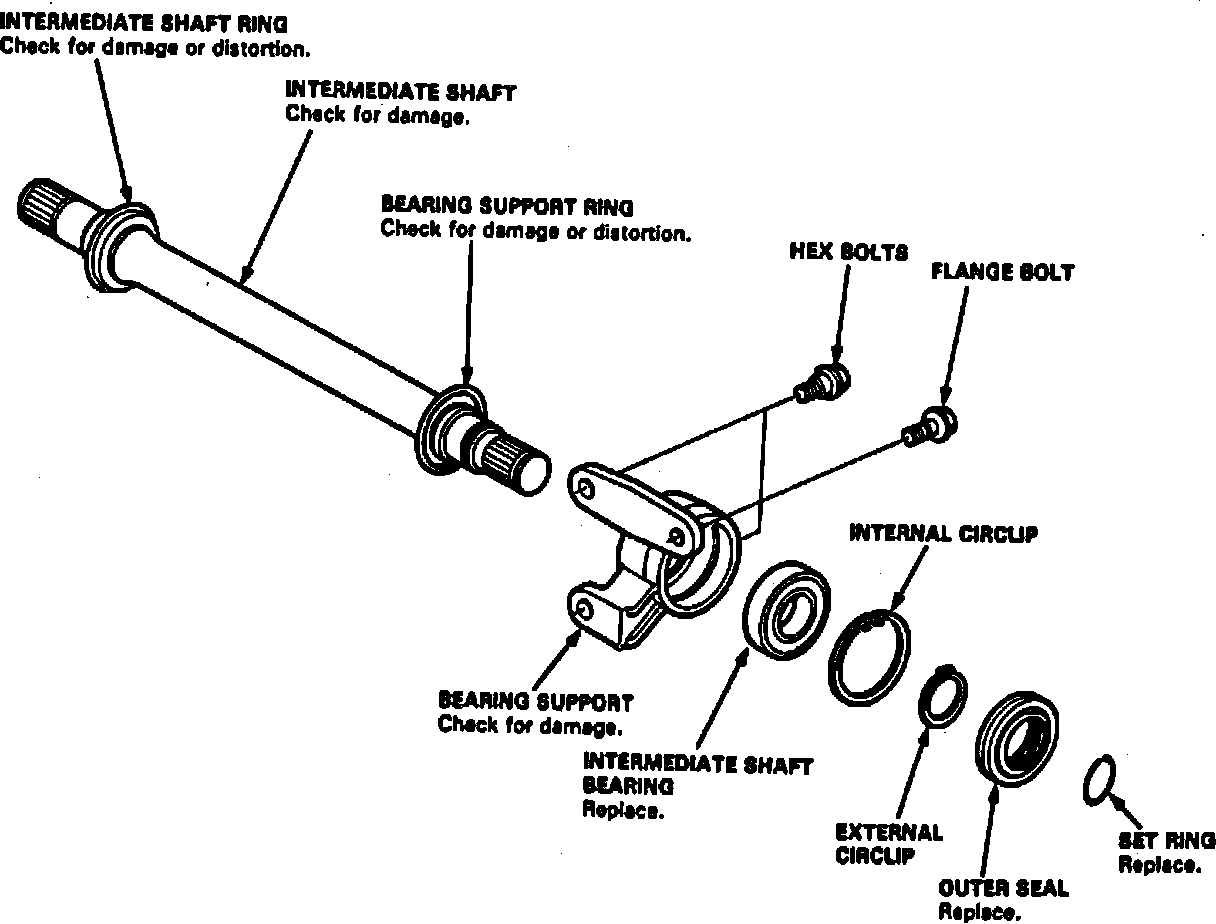

Fig. 6 Intermediate Shaft Assembly:

1. Remove set ring, intermediate shaft outer seal and external clip, Fig. 6.
2. Using a press and special tool No. 07GAF-SD40700 or equivalent, press intermediate shaft out of shaft bearing.
3. Remove internal circlip.
4. Using a press and special tools Nos. 07749-0010000, 07746-0010200, 07GAF-SD40700 or equivalents, press intermediate bearing out of bearing support.
5. Using a press and special tools Nos. 07749-0010000, 07746-0010400 and 07GAF-SD40700 or equivalents, press intermediate shaft bearing into bearing support.
6. Seat internal circlip in groove of bearing support.
7. Using a press and special tools Nos. 07746-0030400 and 07GAF-SD40700 or equivalents, press intermediate shaft into shaft bearing.
8. Seat external circlip in groove of intermediate shaft.
9. Using a press and special tools Nos. 07GAD-PH70201 and 07GAF-SD40700 or equivalents, press outer seal into bearing support.
10. Install new set ring into intermediate shaft groove.
