CD Changer - Din Cable Hits Bracket

CD Changer DIN
Cable Hits Bracket

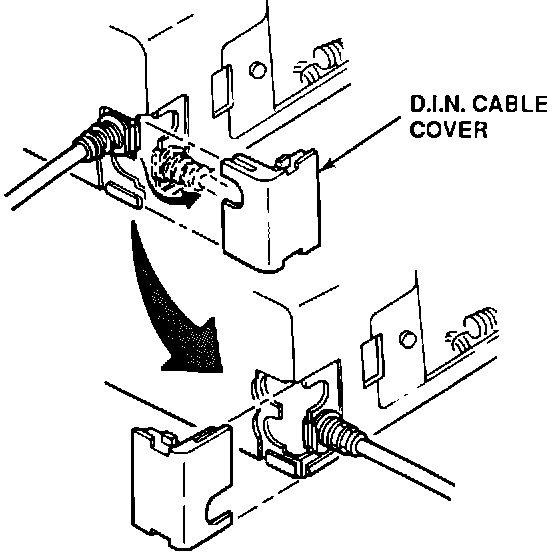

The DIN cable on the trunk-mounted CD changer may interfere with the changer mounting bracket in some applications. If so, reposition the cable as described.

1. Remove the side cover from the DIN cable side of the changer.

2. Remove the DIN cabte cover by sliding it away from the cable.

3. Slide the cable grommet out of its original position and move it to the alternate position.



4. Reinstall the DIN cable cover and the changer side cover.
