Home >> Honda >> 1992 >> Prelude L4-2.2L SOHC >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> SRS Indicator Light Doesn't Come On >> Part 2 of 4

Part 2 of 4

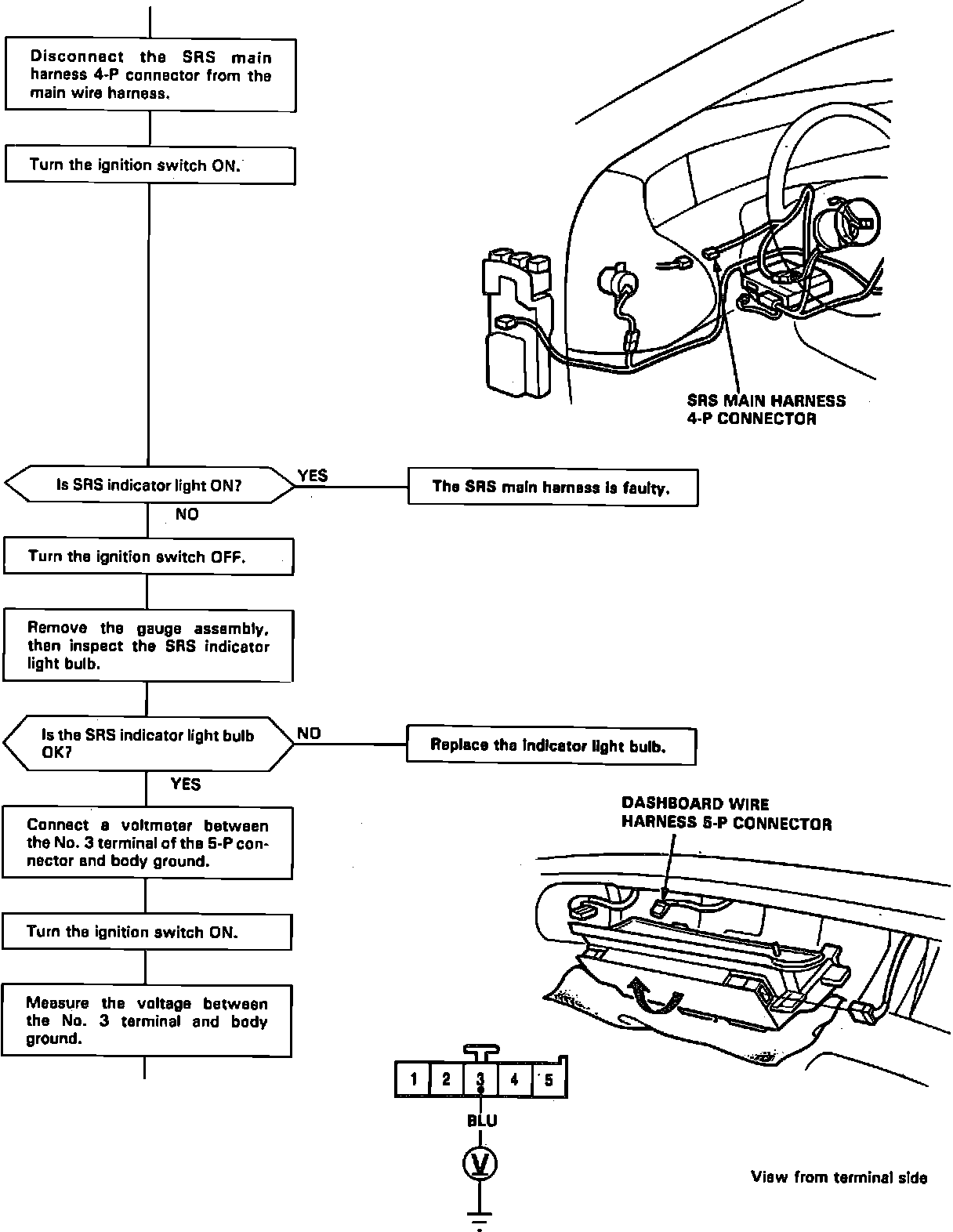

Fig. 15 SRS Indicator Light Will Not Light (Part 2 Of 4):
