Honda
>>
1992
>>
Prelude L4-2.2L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relays and Modules - Power and Ground Distribution
>>
Relay Box
>>
Locations
>>
Under-Dash Fuse/Relay Box
>>

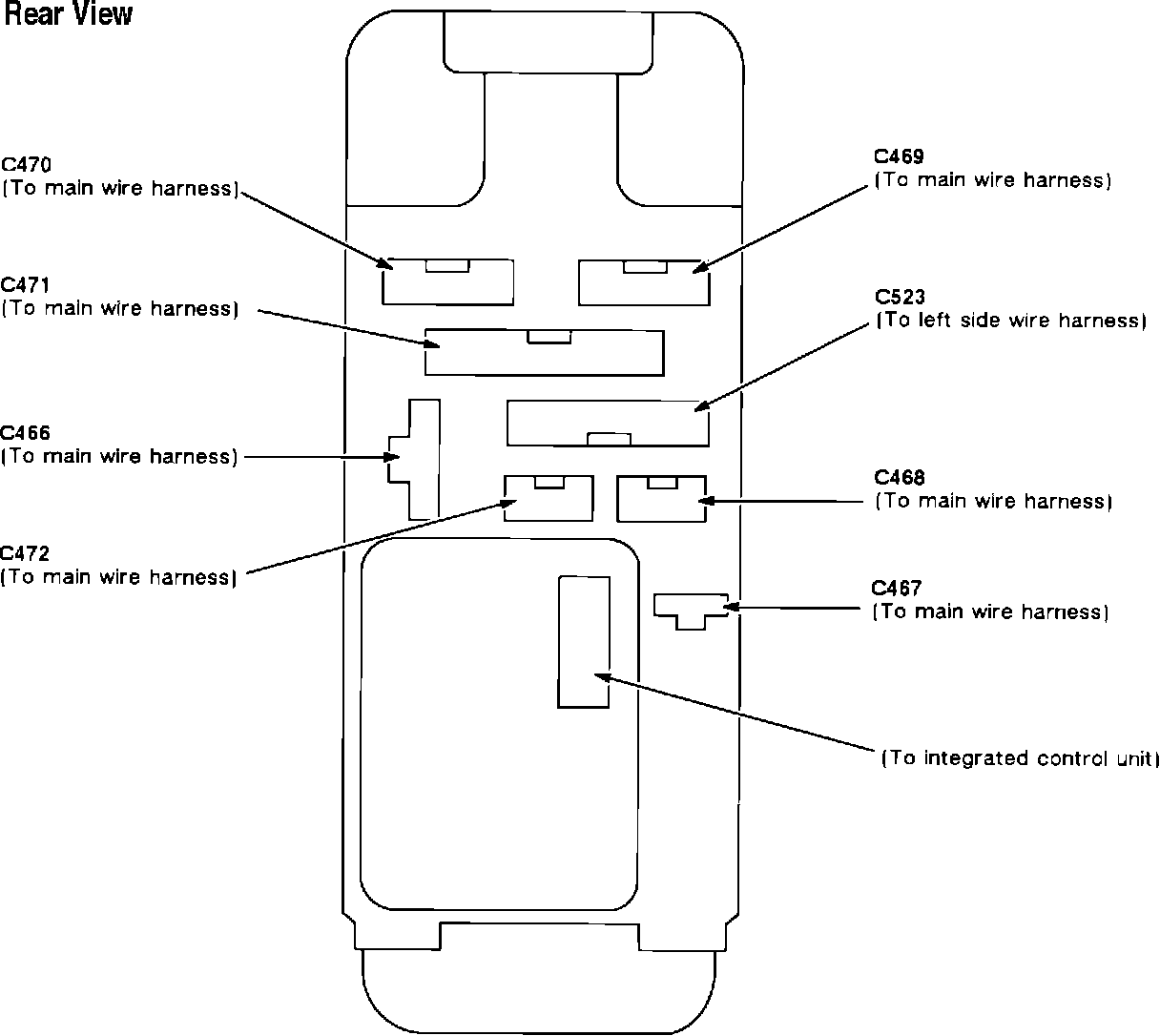

Rear View
Rear View
Under-dash Fuse/Relay Box:
