Fans and Compressor Controls

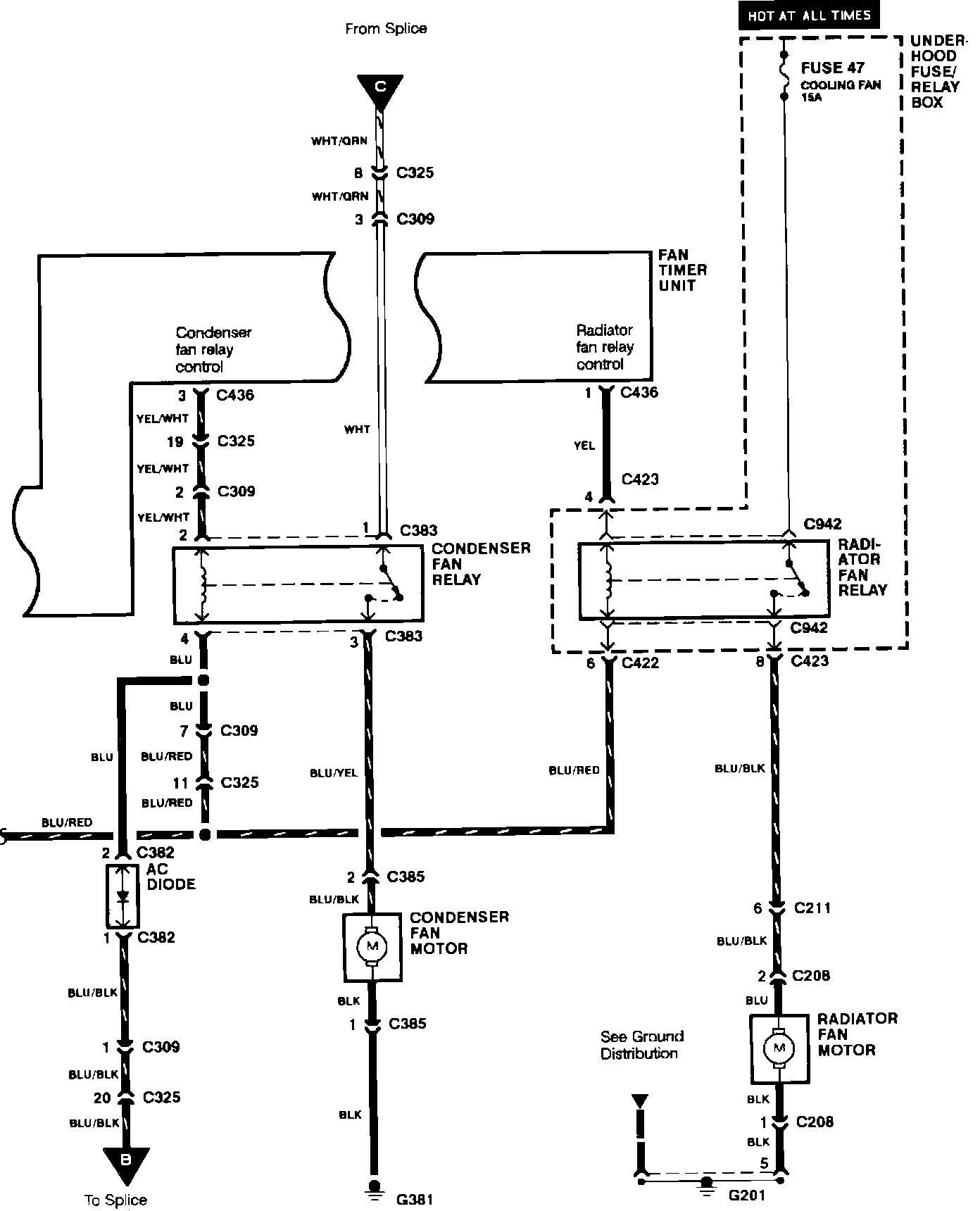

Fans SI Models:



Fans SI Models:

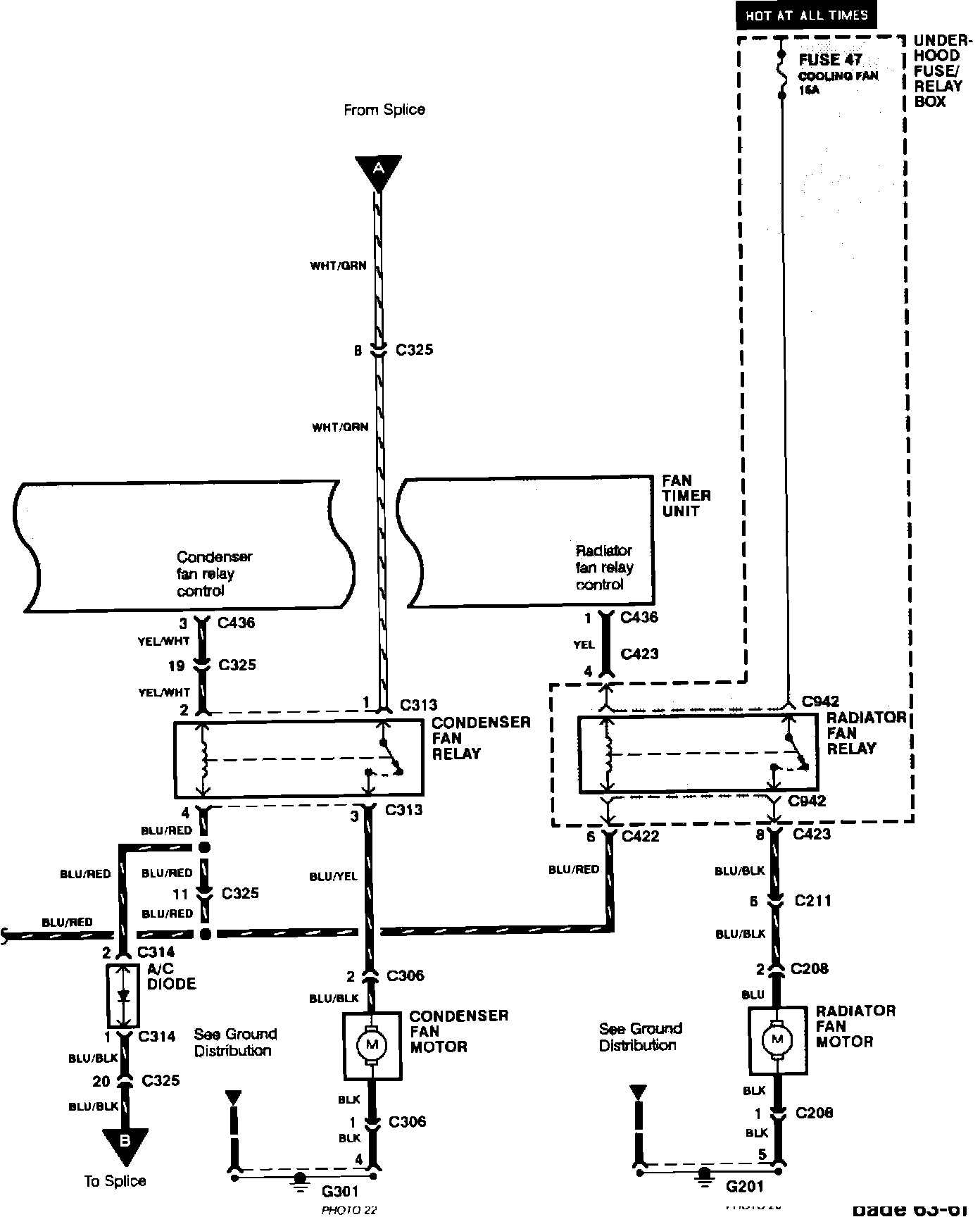

Fans S Models:



Fans S Models:

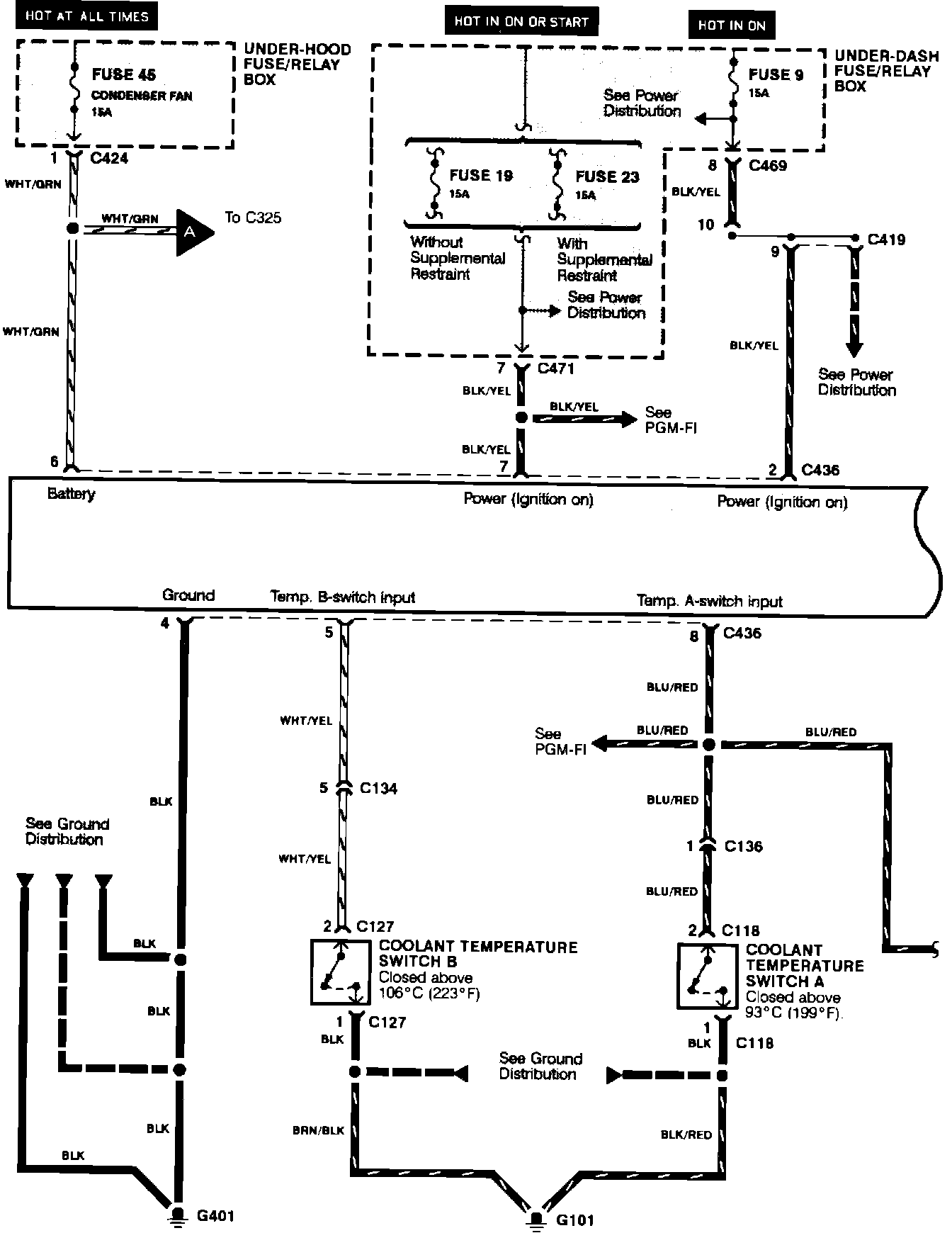

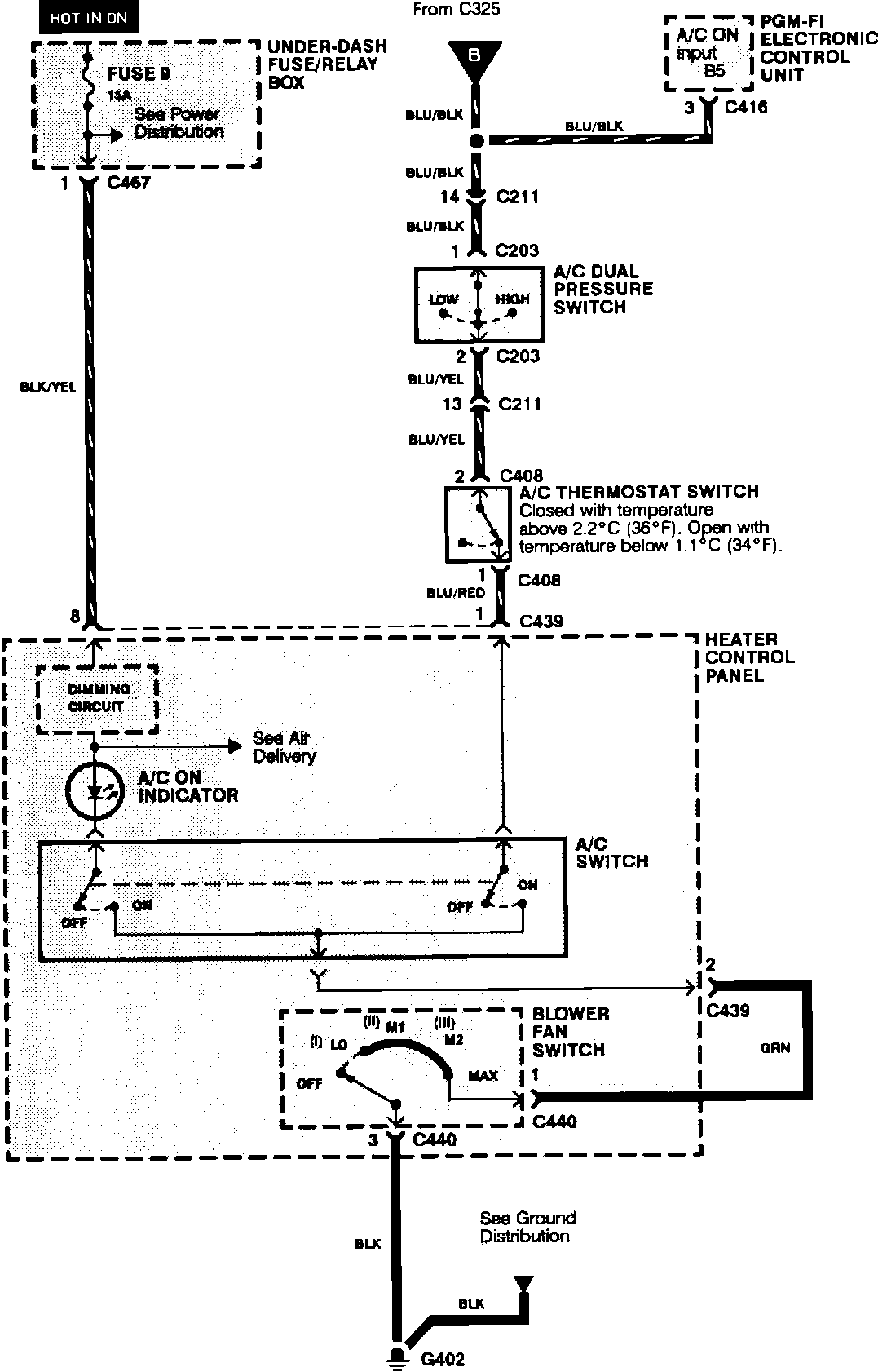

Fans:
