Connecting Rod Bearing: Application and ID

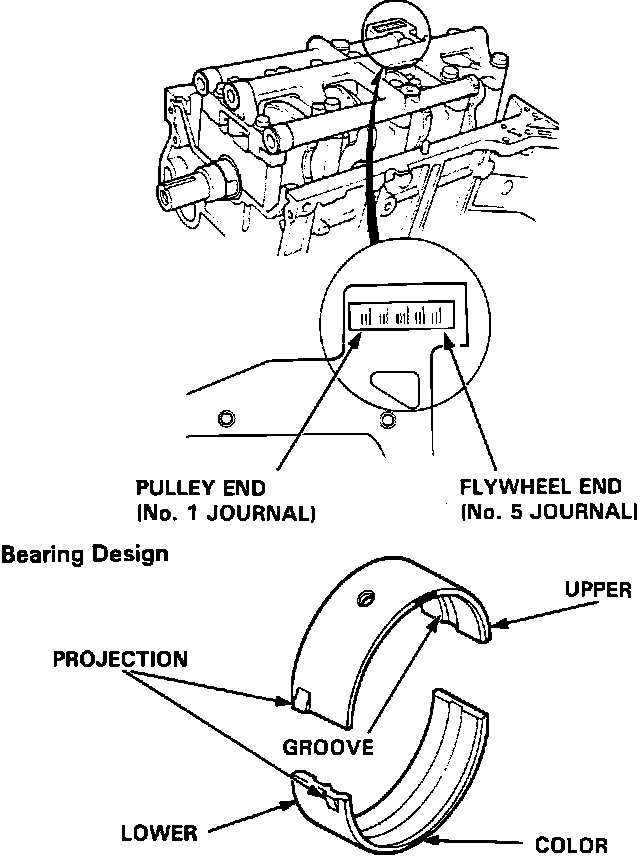

Main Bearing Code Location:

Block Code

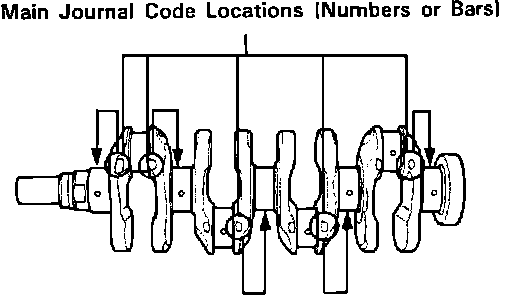

Main Bearing Code Location:

Crank Code F22A1 Engine

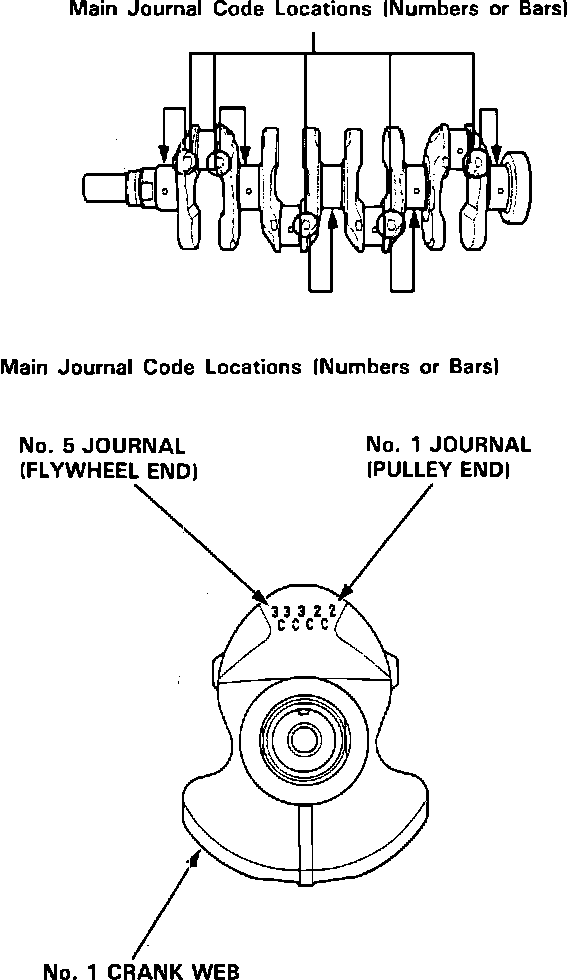

Main Bearing Code Location:

Crank Code F23A1 Engine

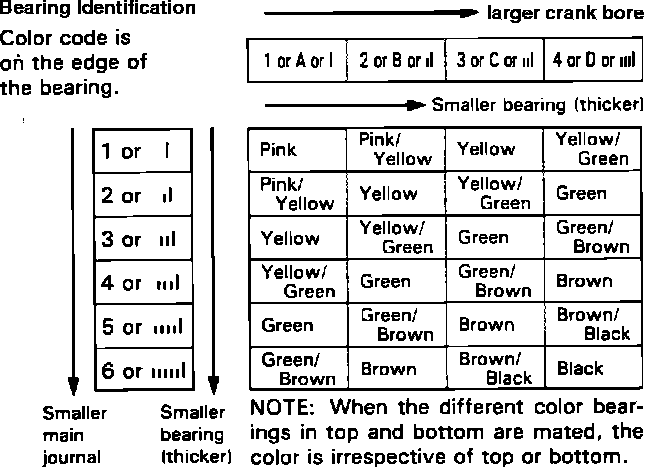

Main Bearing Identification:

Bearing Chart

MAIN BEARING SELECTION
Different sizes of main bearings may be present in the same engine. To find the correct bearing size for each journal, use the provided chart to properly reference the code markings on block and crankshaft.

Rod Bearing Code Location:

Rod Code

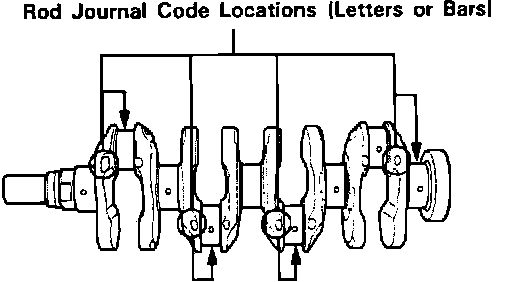

Rod Bearing Code Location:

Crank Code F22A1 Engine

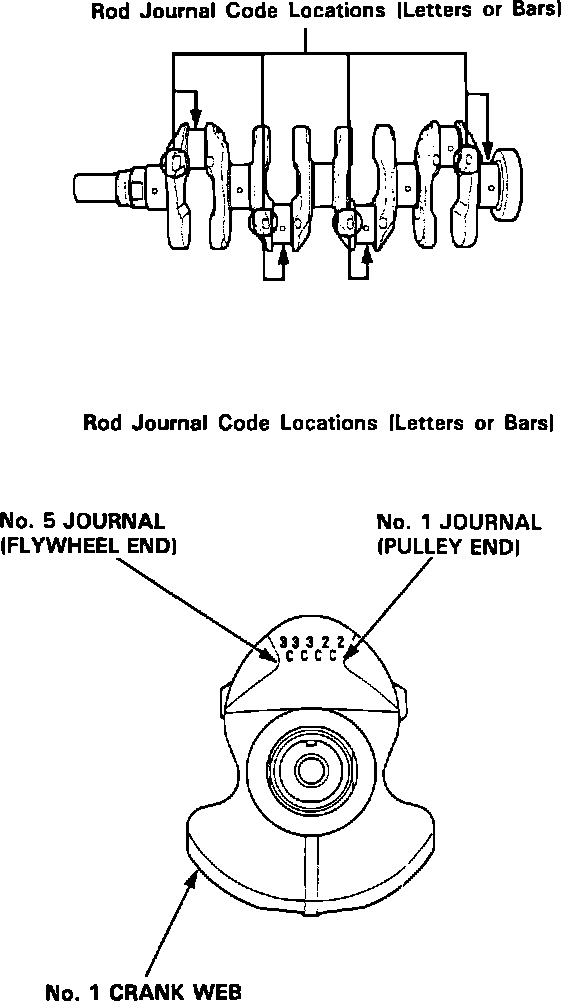

Rod Bearing Code Location:

Crank Code F23A1 Engine

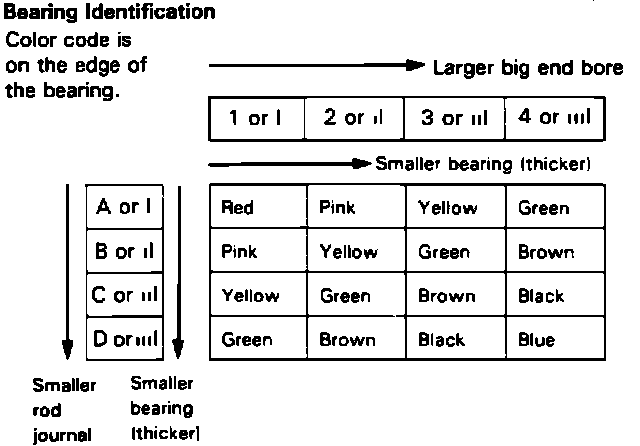

Rod Bearing Identification:

Bearing Chart

ROD BEARING SELECTION
Different sizes of rod bearings may be present in the same engine. To find the correct bearing size for each journal, use the provided chart to properly reference the code markings on connecting rod and crankshaft.
