Honda
>>
1992
>>
Prelude L4-2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

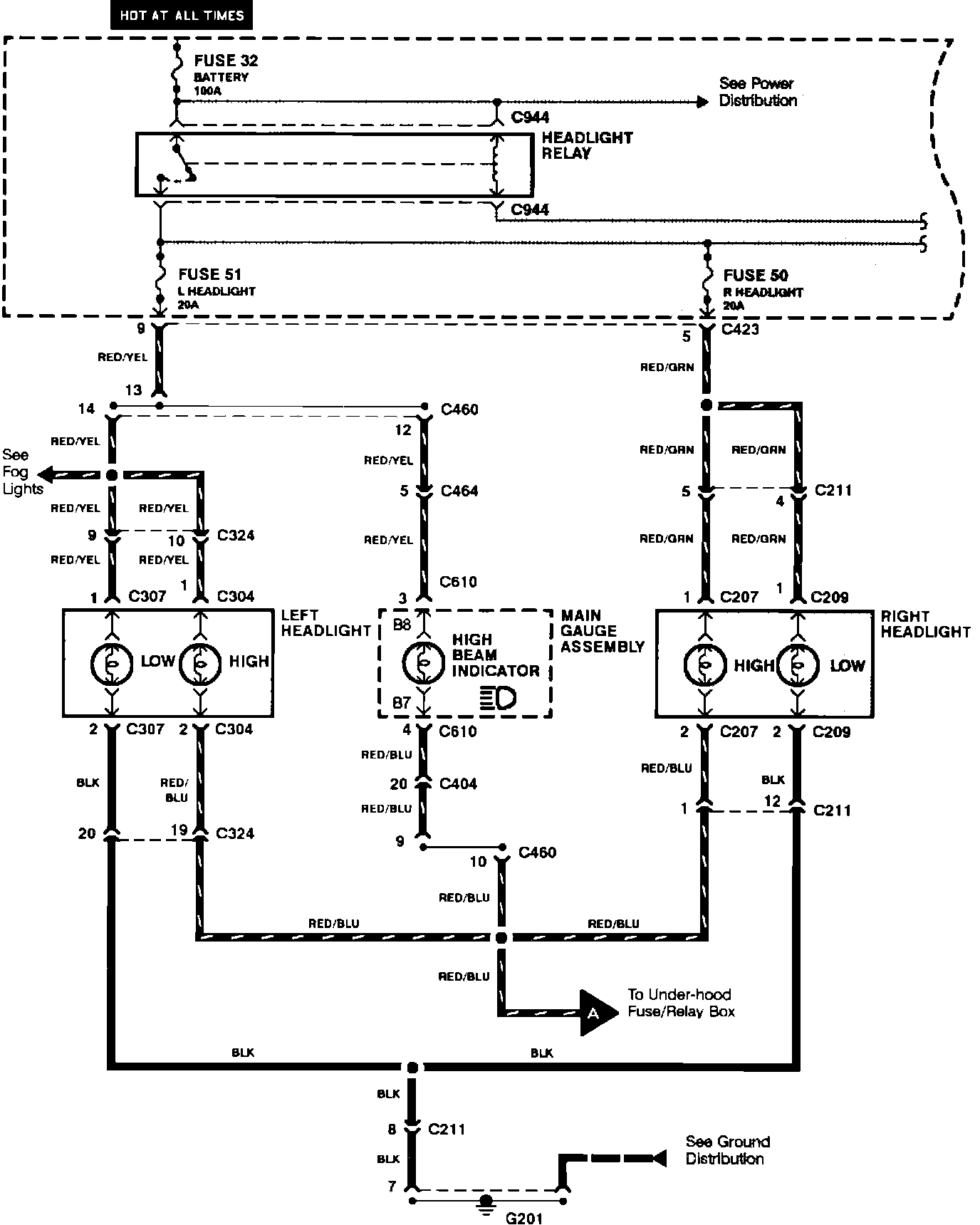

Headlamp
>>
System Diagram
>>
USA (Less Daytime Running)
USA (Less Daytime Running)
Headlights (USA):
Headlights (USA):
