W/4 Wheel Steering
W/4 Wheel Steering

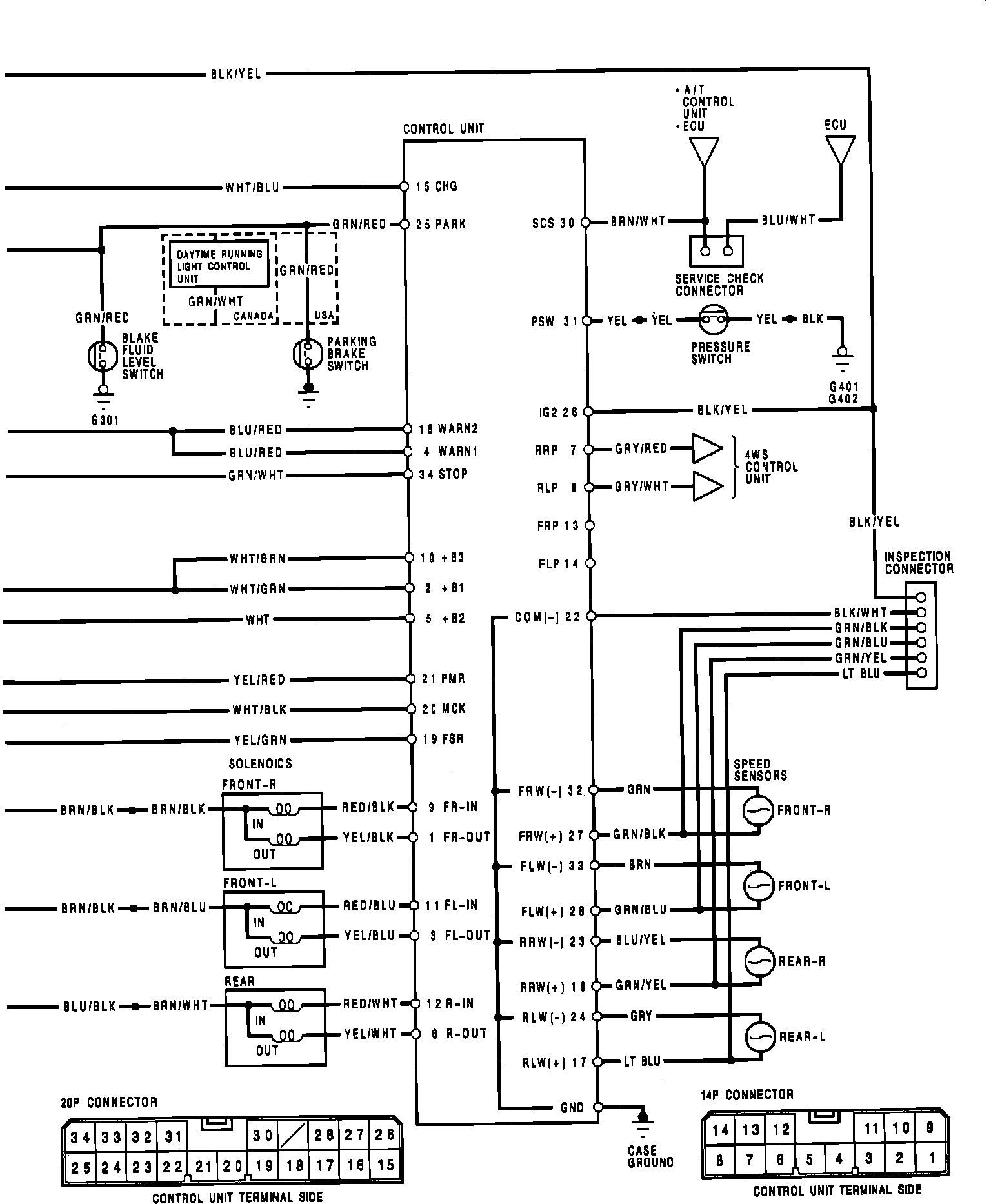

Fig. 14 ABS Wiring Circuit. 1992 Prelude W/4 Wheel Steering (Part 1 Of 2):

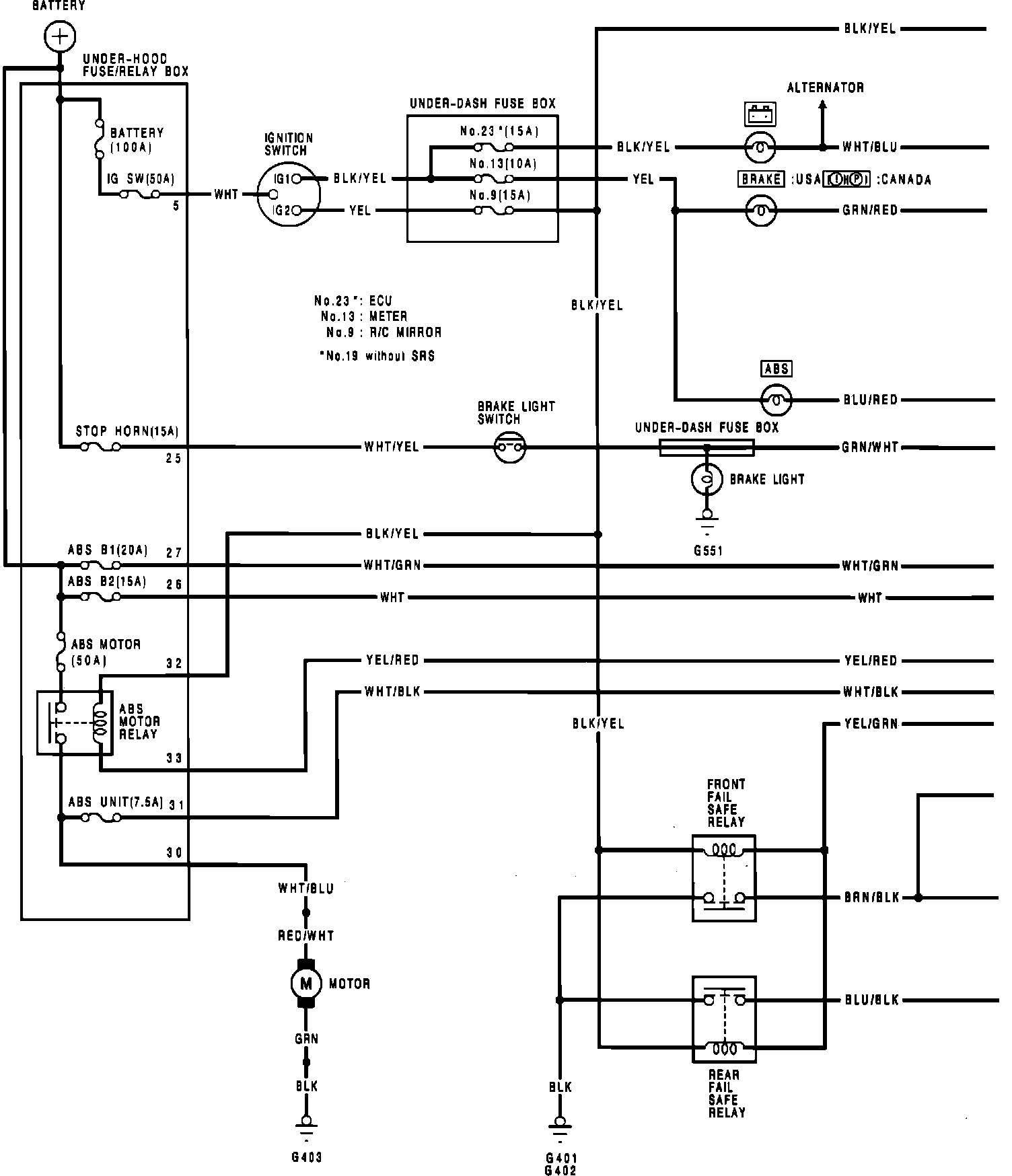

Fig. 14 ABS Wiring Circuit. 1992 Prelude W/4 Wheel Steering (Part 2 Of 2):
