Antilock Brakes / Traction Control Systems
>>
Wiring Schematics
>>
W/2 Wheel Steering
W/2 Wheel Steering

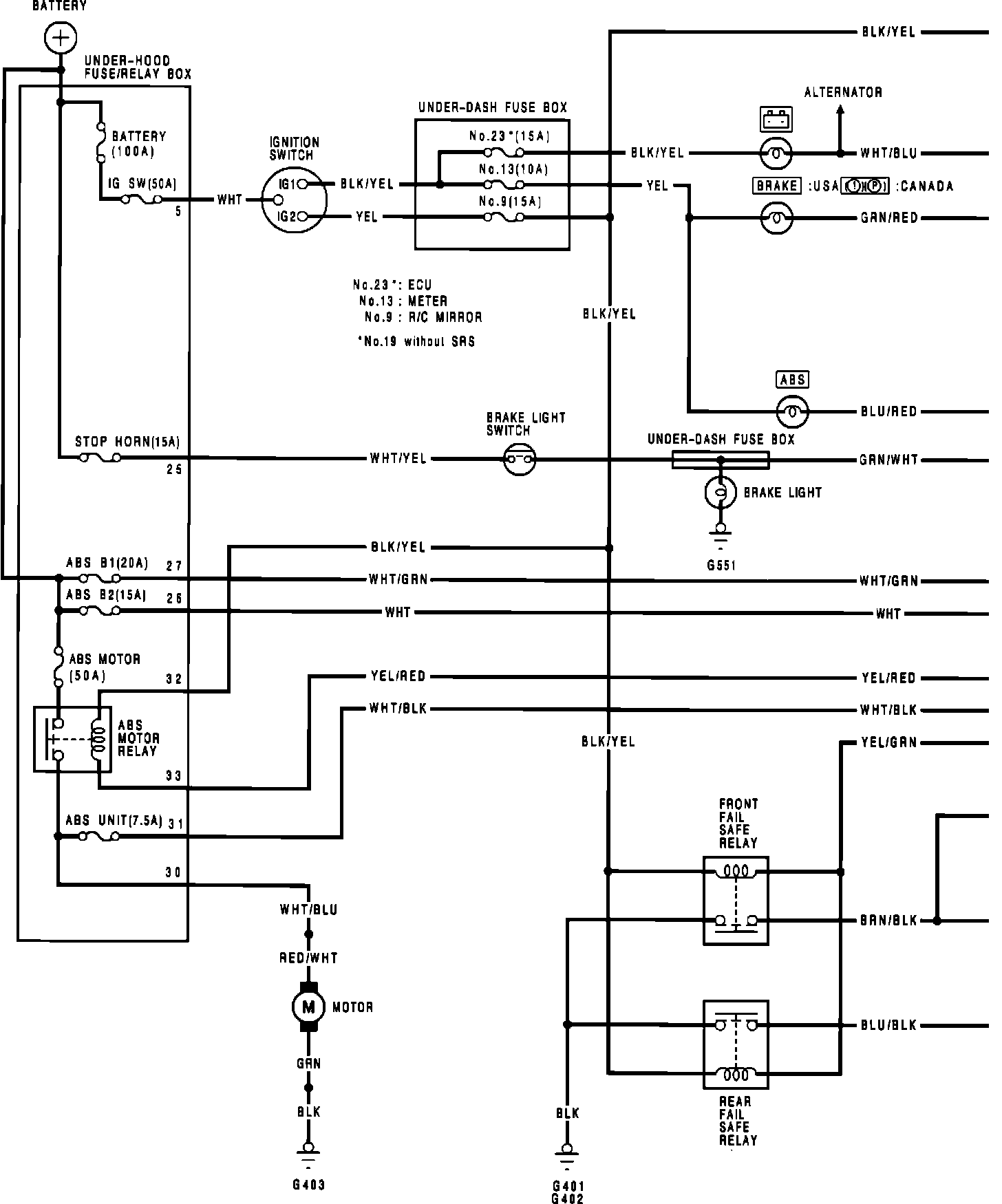

ABS Wiring Circuit (Part 1 Of 2). 92 Prelude W/2 Wheel Steering:

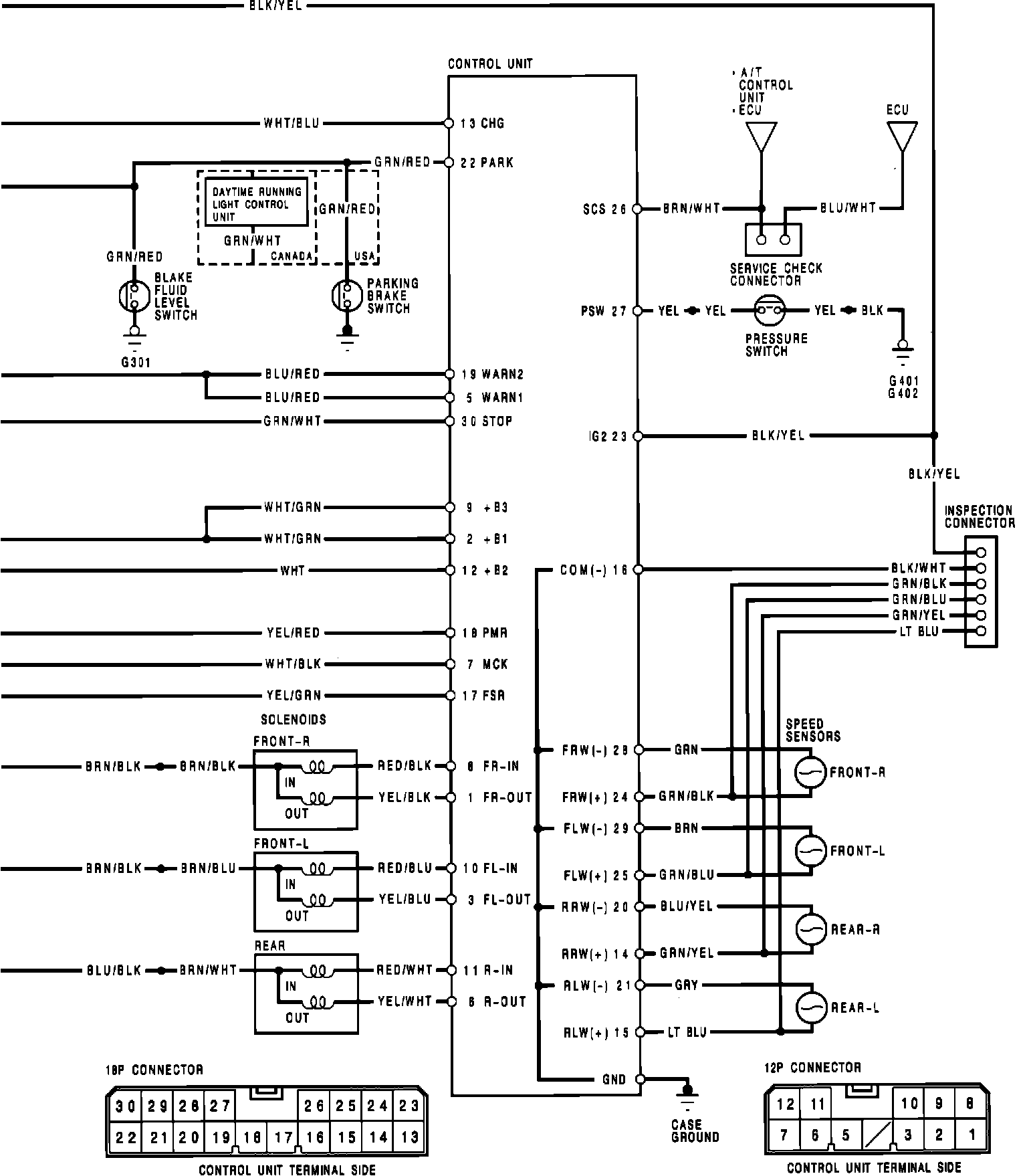

ABS Wiring Circuit (Part 2 Of 2). 92 Prelude W/2 Wheel Steering:
