Honda
>>
1992
>>
Prelude L4-2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
Wiring Diagrams
Wiring Diagrams

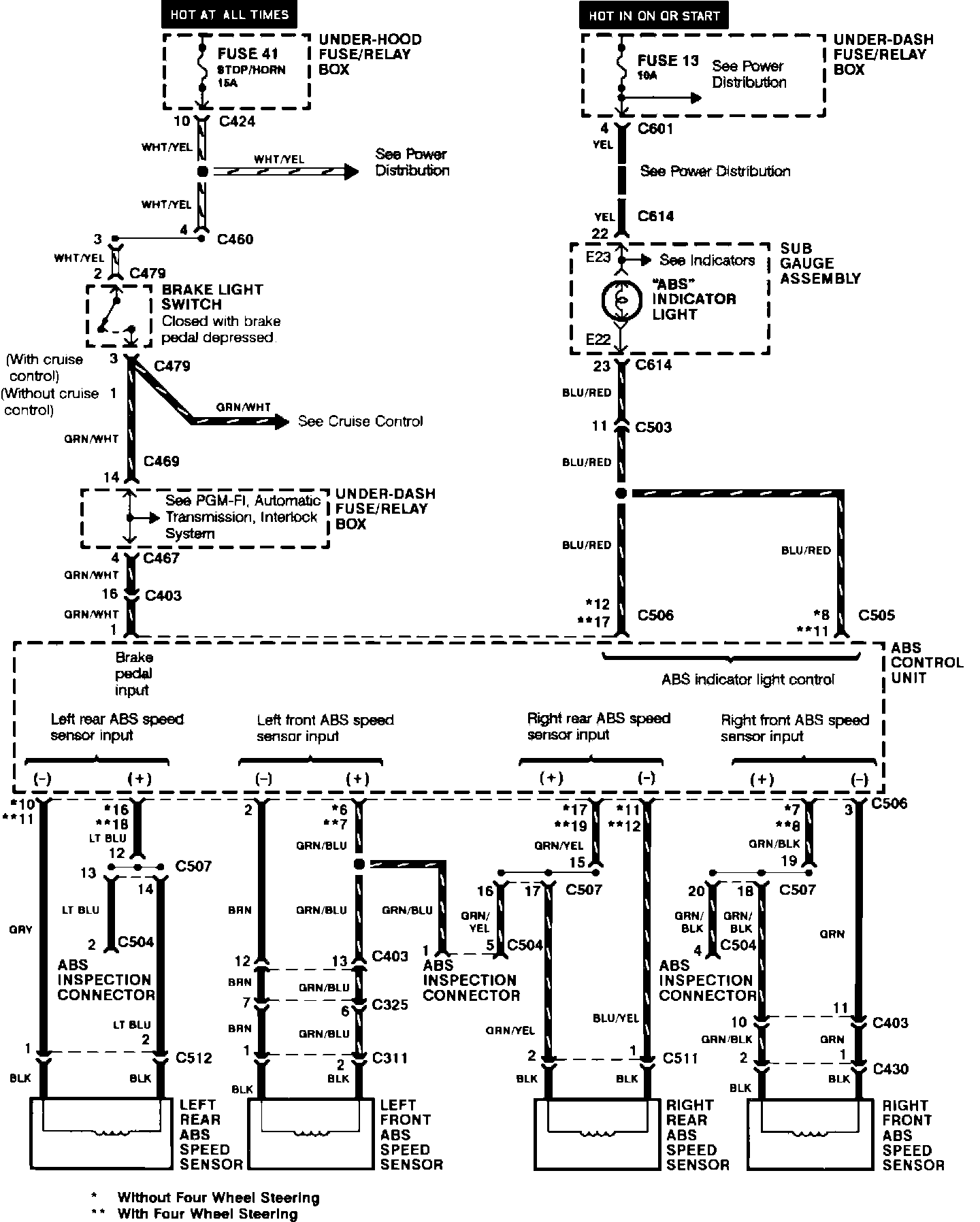

Anti-lock Brake System (ABS):

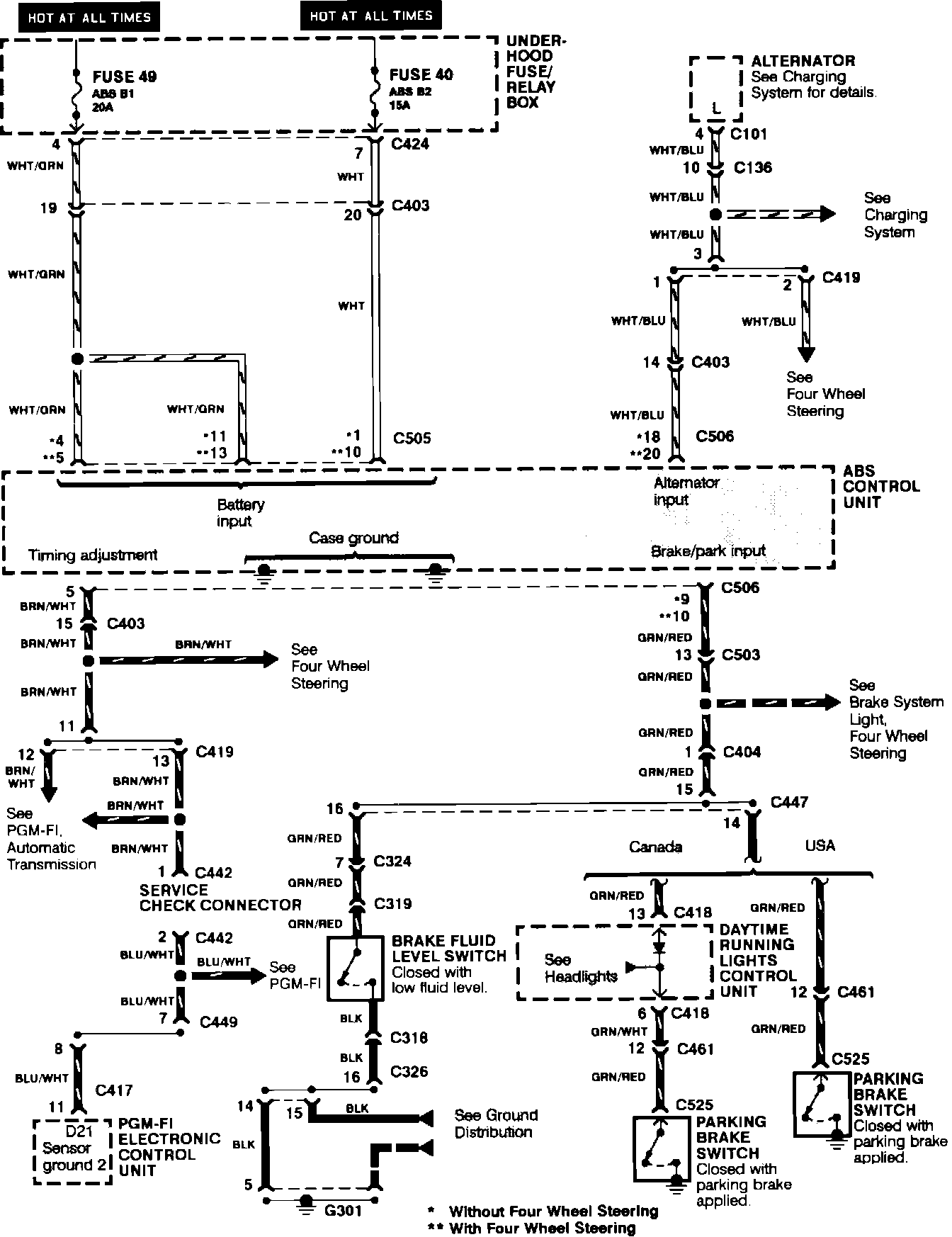

Anti-lock Brake System (ABS):

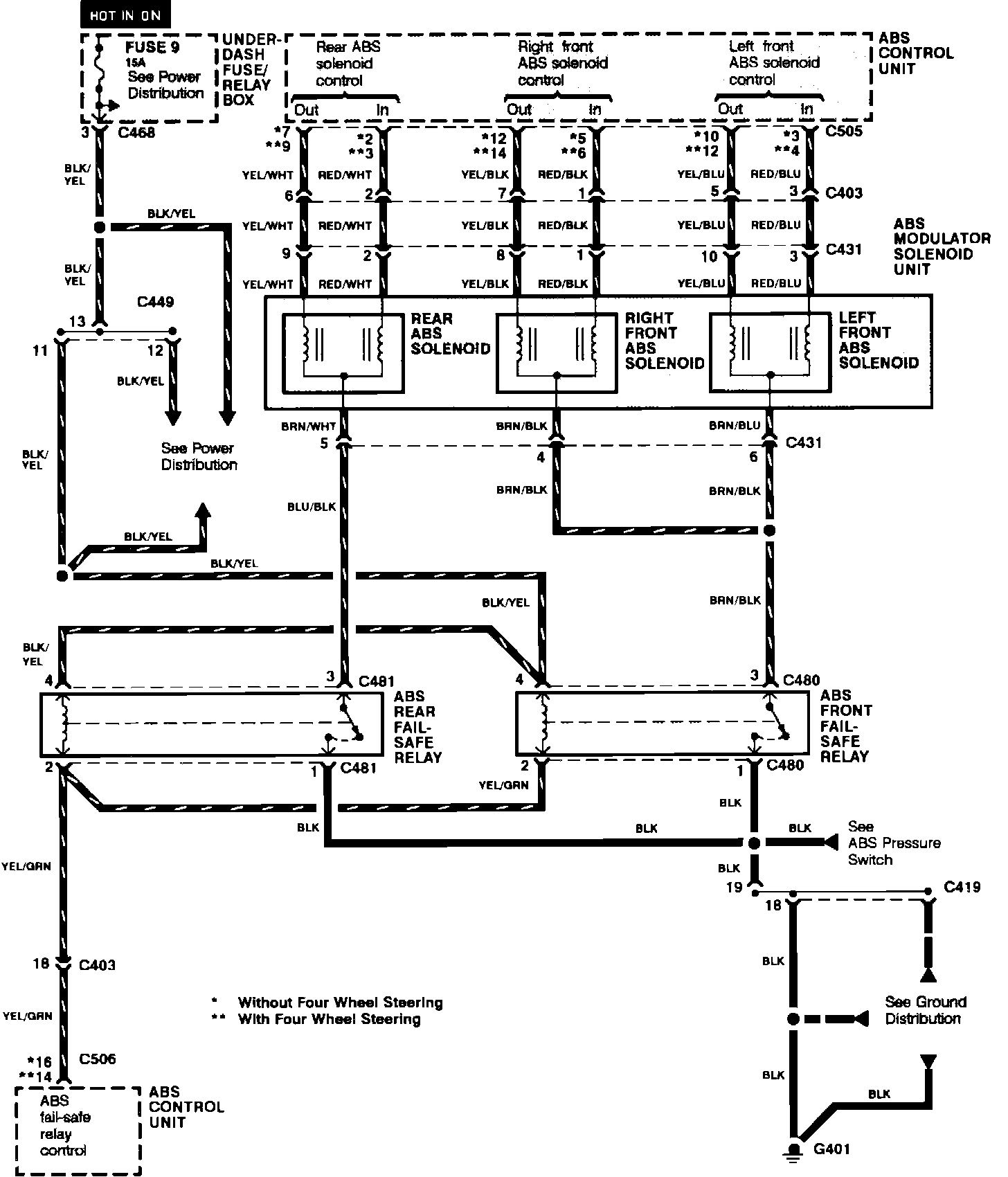

Anti-lock Brake System (ABS):

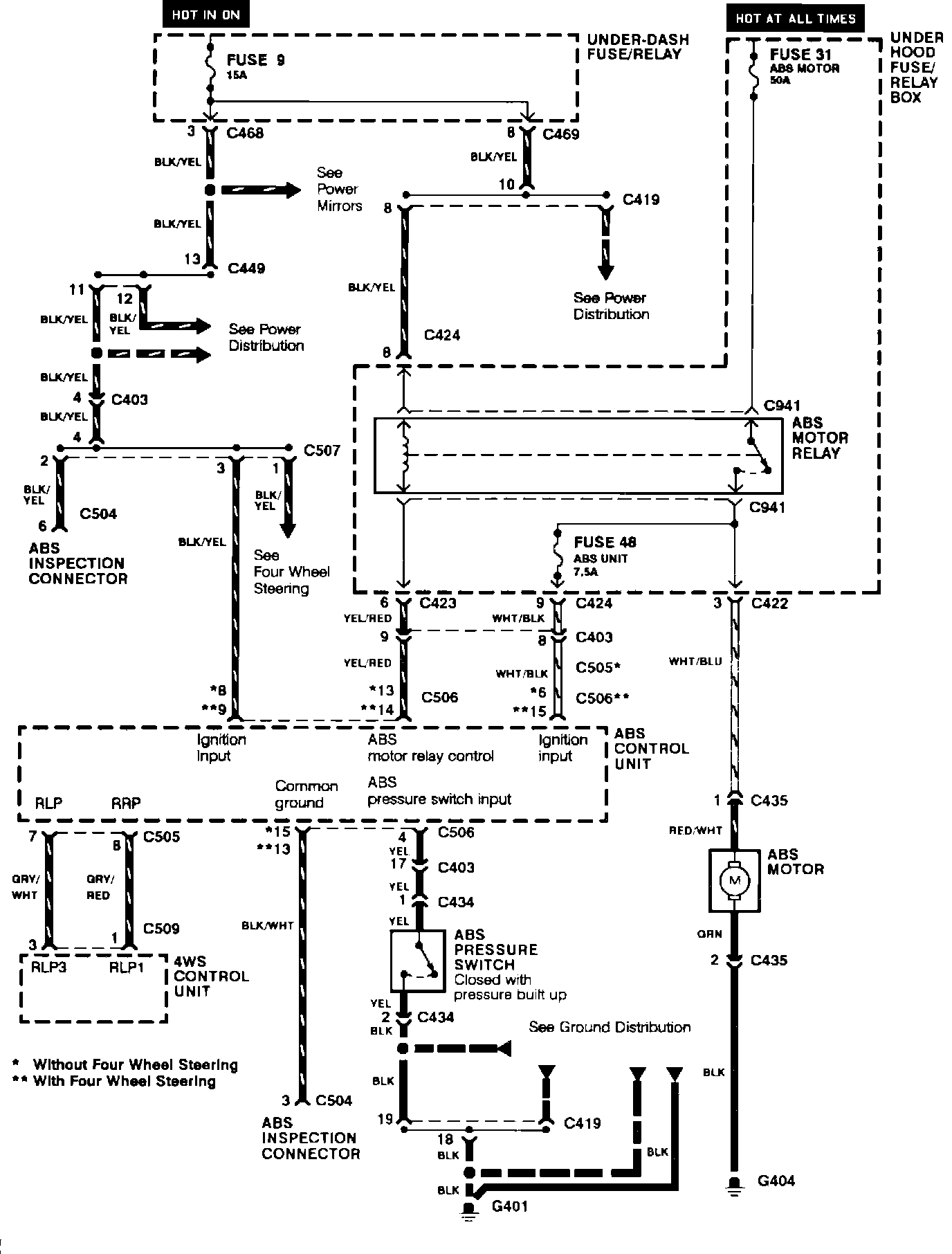

Anti-lock Brake System (ABS):
