Security System - Instructions

Prelude Security Notes

Here are two items to note on your master copy of the '92 Prelude Security System instructions:





Step 16:
The wire positions in the 2-P LED connector are reversed.



If the wires are installed as per the instructions, the LED won't flash when the system is armed. In this case, remove the steering column covers and move the wires to the correct positions. Remove the terminals from the connector with pin removal tool 07JAZ-002050A. If the terminals are damaged, replace them with P/N 07JAZ-001030A. (Both the tool and terminals are in the Terminal Pin Repair Kit, T/N 07JAZ-003000A.) Wrap the connector with a 35 x 65 mm piece of EPT Sealer 3T before you reinstall the steering column covers.





Step 19:

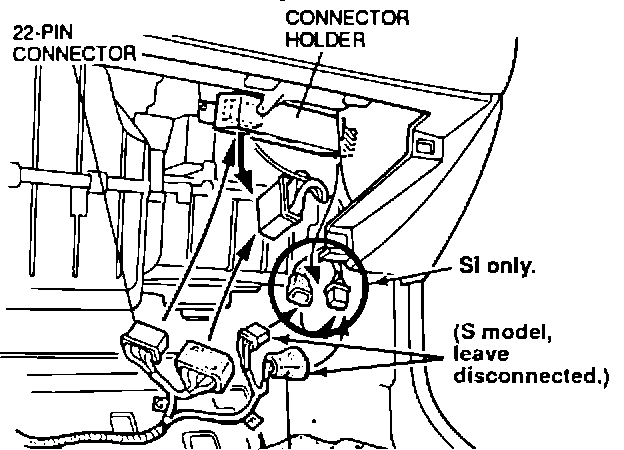

There's no 6-P connector on S models. (The 6-P connector is for the power door lock input on Si models.) On S models, leave the 6-P "F" connectors on the security system harness disconnected, and tuck them under the carpet near the right kick panel.
