Reassembly

CAUTION: When installing the 3rd/4th and 5th synchro hubs, support the shaft on the steel blocks and Install synchro hubs using a press.

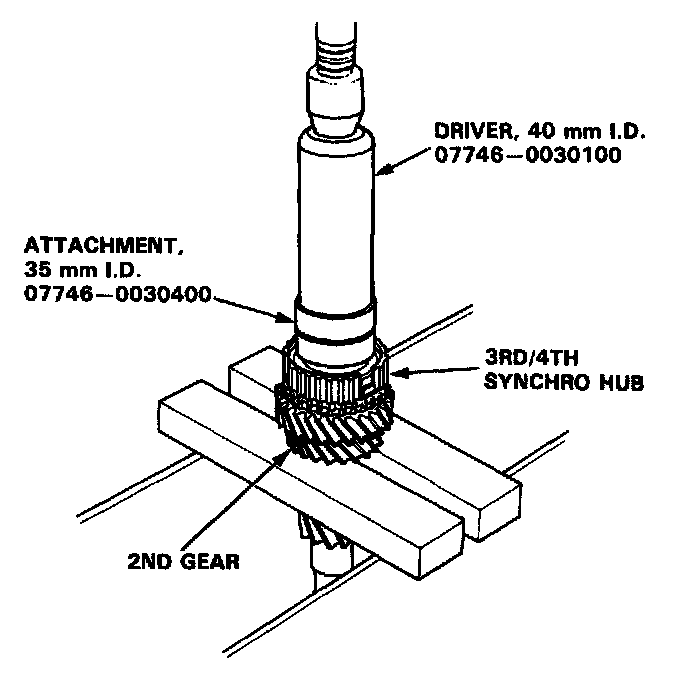

1. Support 2nd gear on steel blocks as shown, then install the 3rd/4th synchro hub using a press.

NOTE: After installation, inspect the operation of the 3rd/4th synchro hub set.




2. Install the 5th synchro hub using a press as shown.

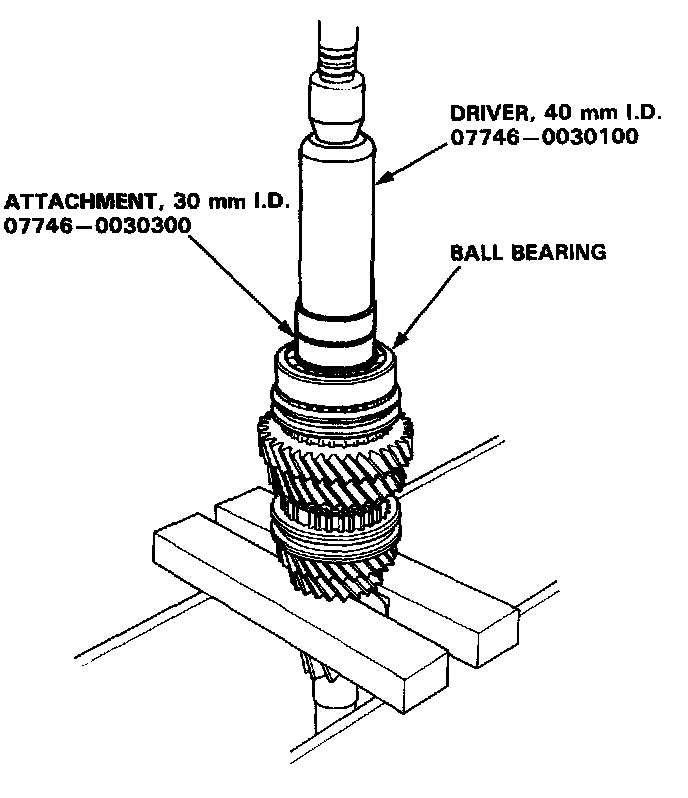

3. Install the ball bearing using a press as shown.
