Inspection

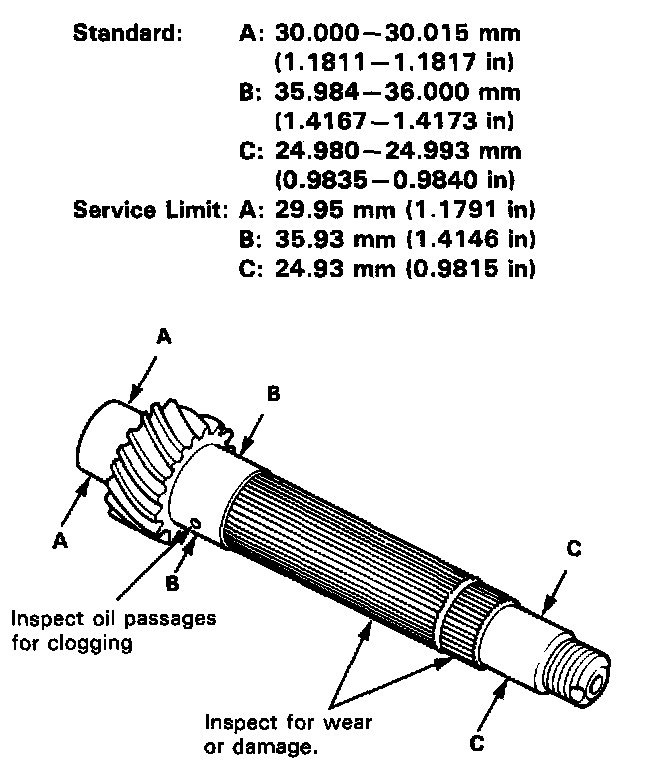

1. Inspect the gear surfaces and bearing surfaces for wear or damage, then measure the countershaft at points A, B and C.
If any part of the countershaft is less than the service limit, replace it with a new one.

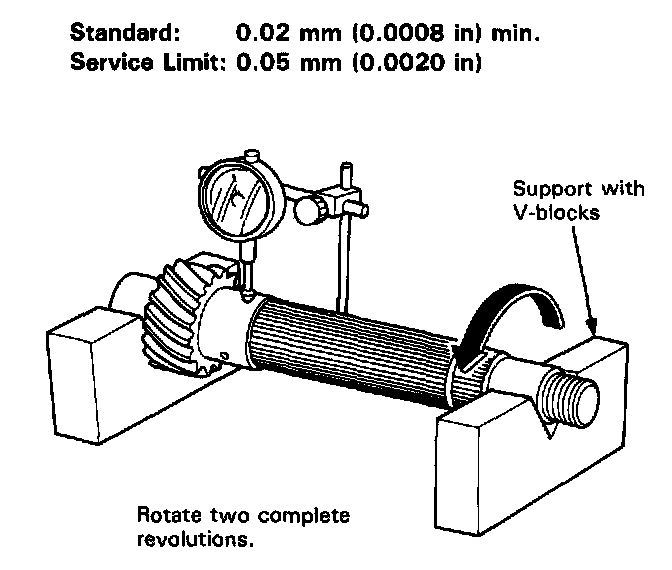

2. Inspect for runout.
If the runout exceeds the service limit, replace the countershaft with a new one.
