Home >> Honda >> 1992 >> Civic L4-1493cc 1.5L SOHC (8 valve) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Diagrams >> Electrical Diagrams >> CX, DX and LX Models

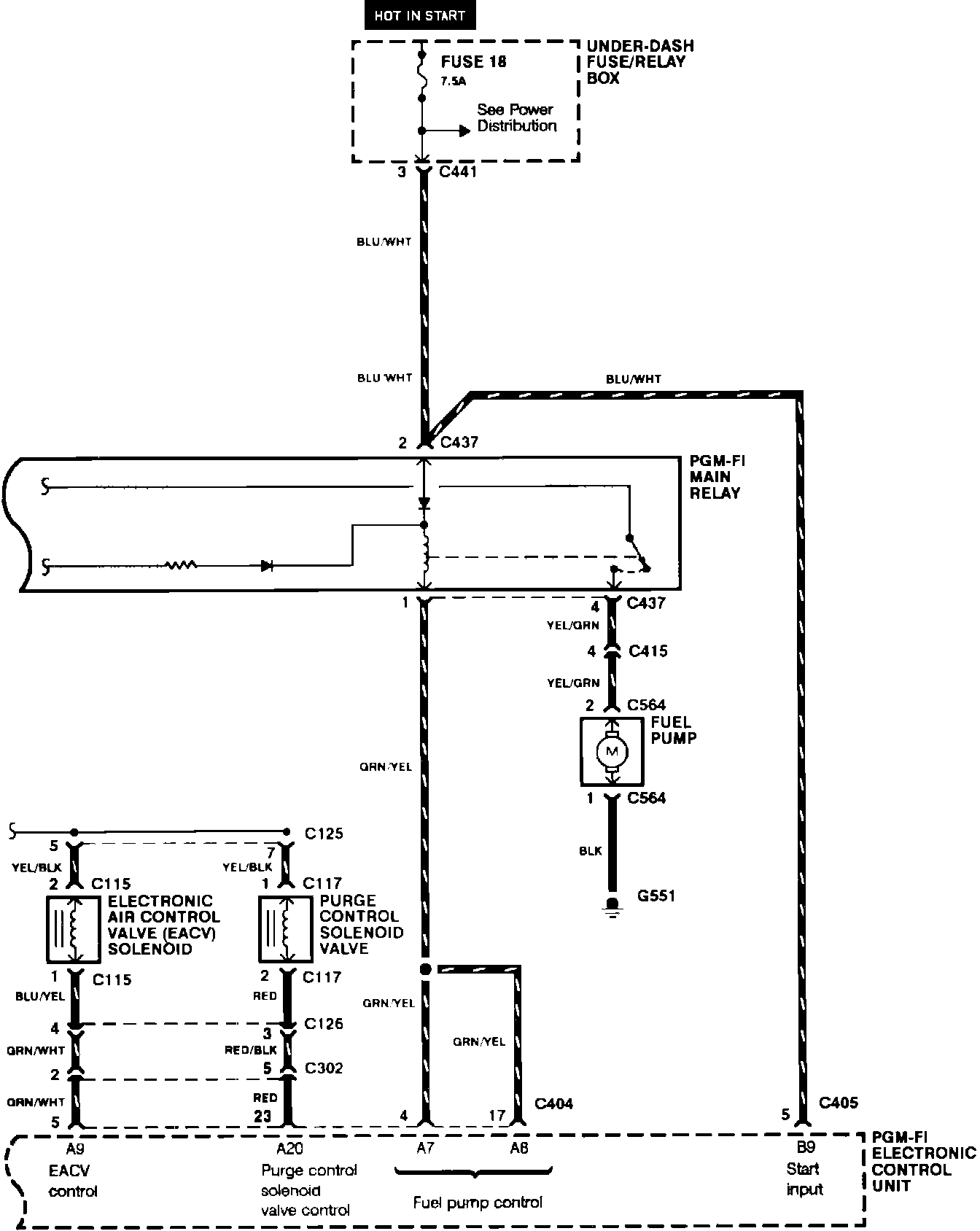

CX, DX and LX Models
