Electrical Diagrams

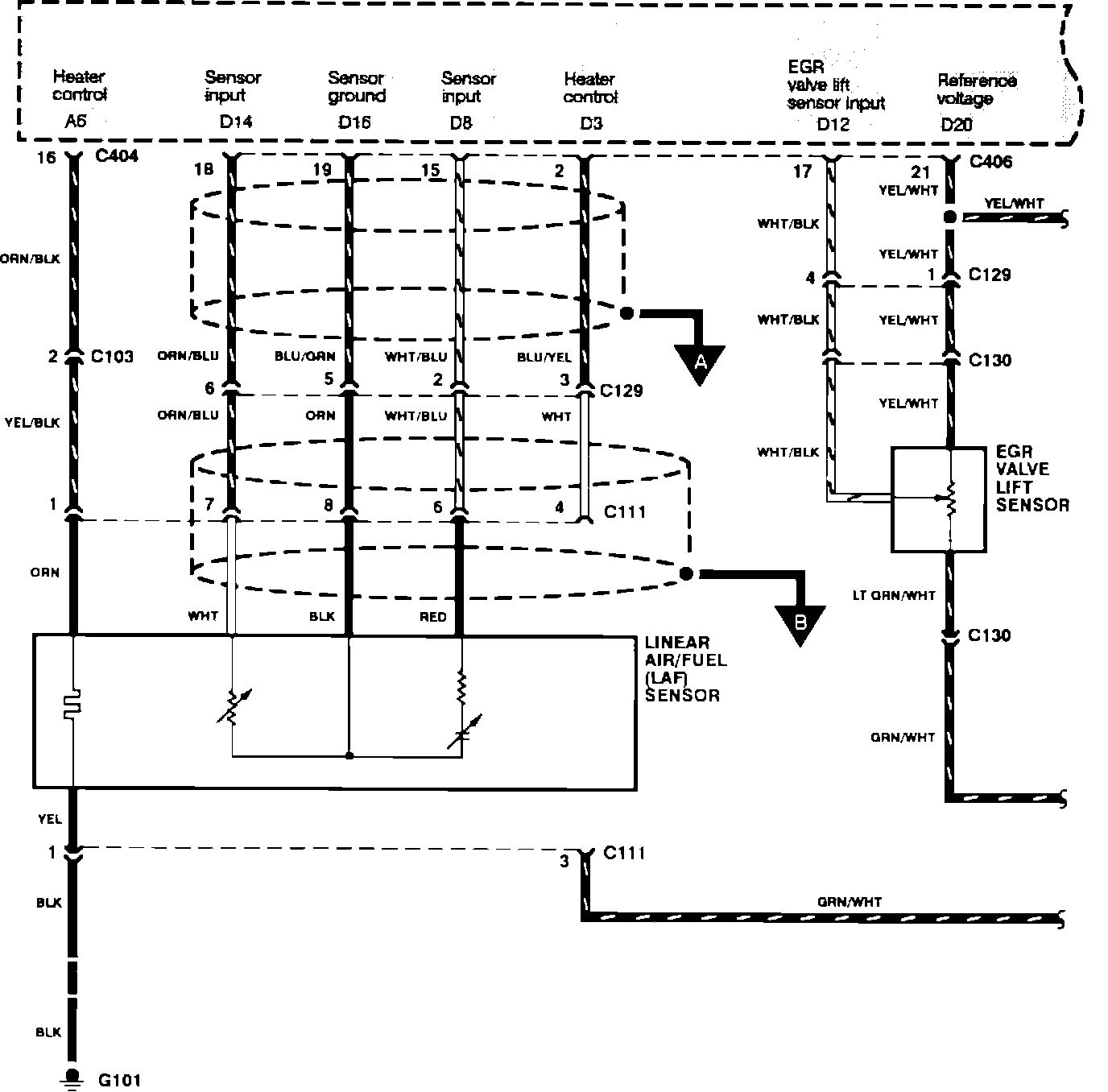

EGR System Wiring:

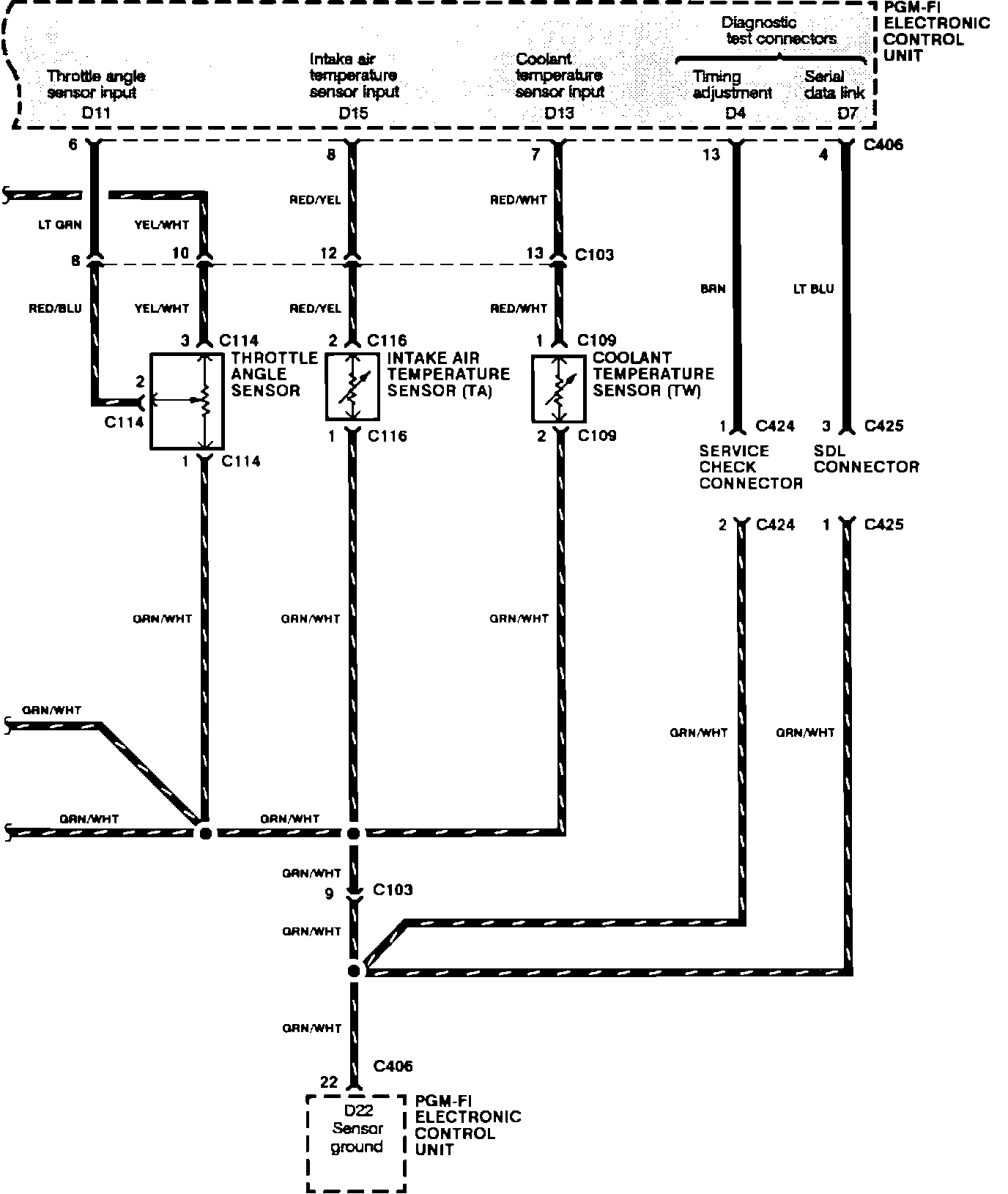

EGR System Wiring:

EGR VALVE LIFT SENSOR

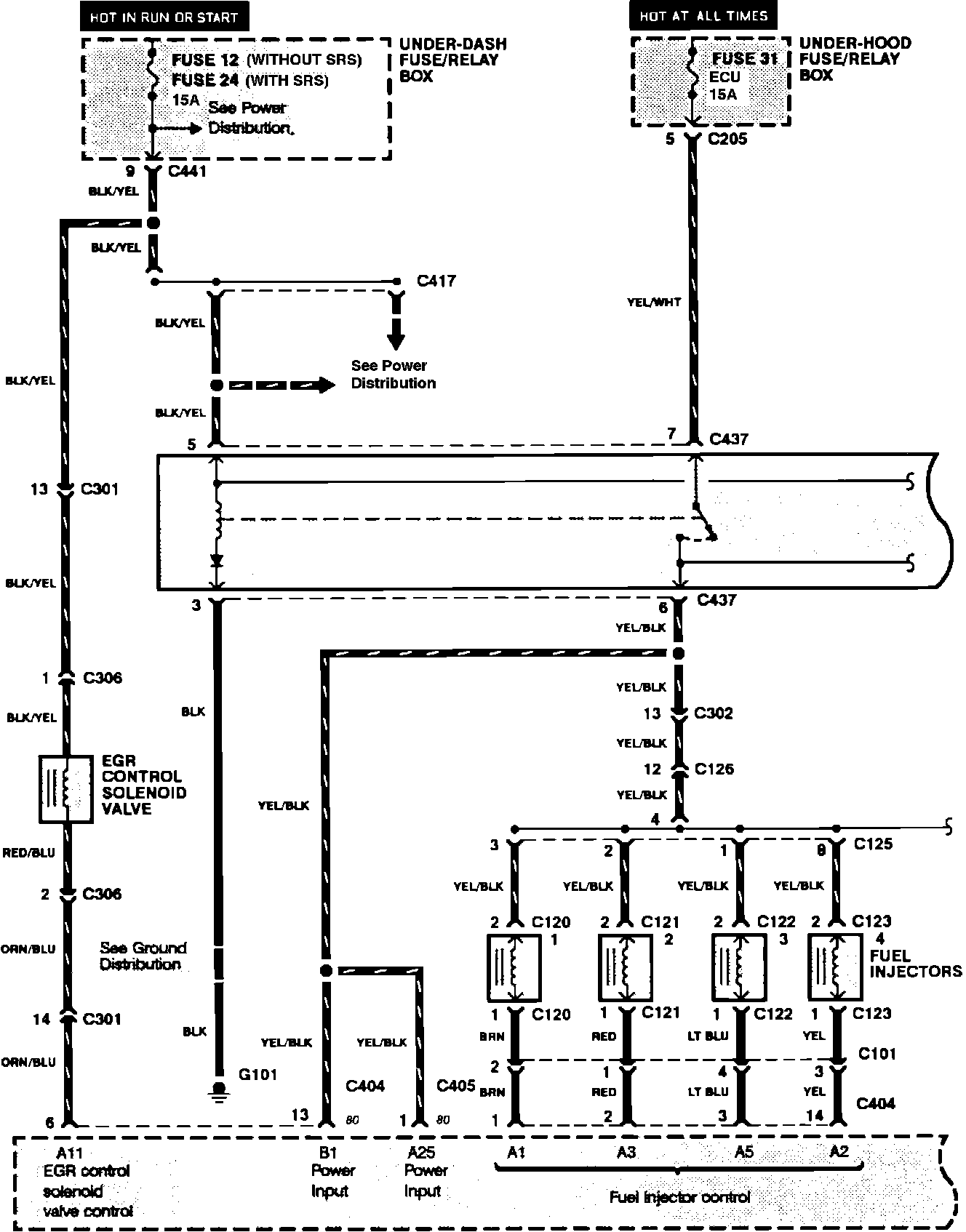

EVAP System Wiring:

EVAP System Wiring:

EGR CONTROL SOLENOID VALVE


NOTE: For further and more complete information, refer to CHASSIS ELECTRICAL DIAGRAMS.
