Auxiliary Air Valve (Idle Speed): Locations

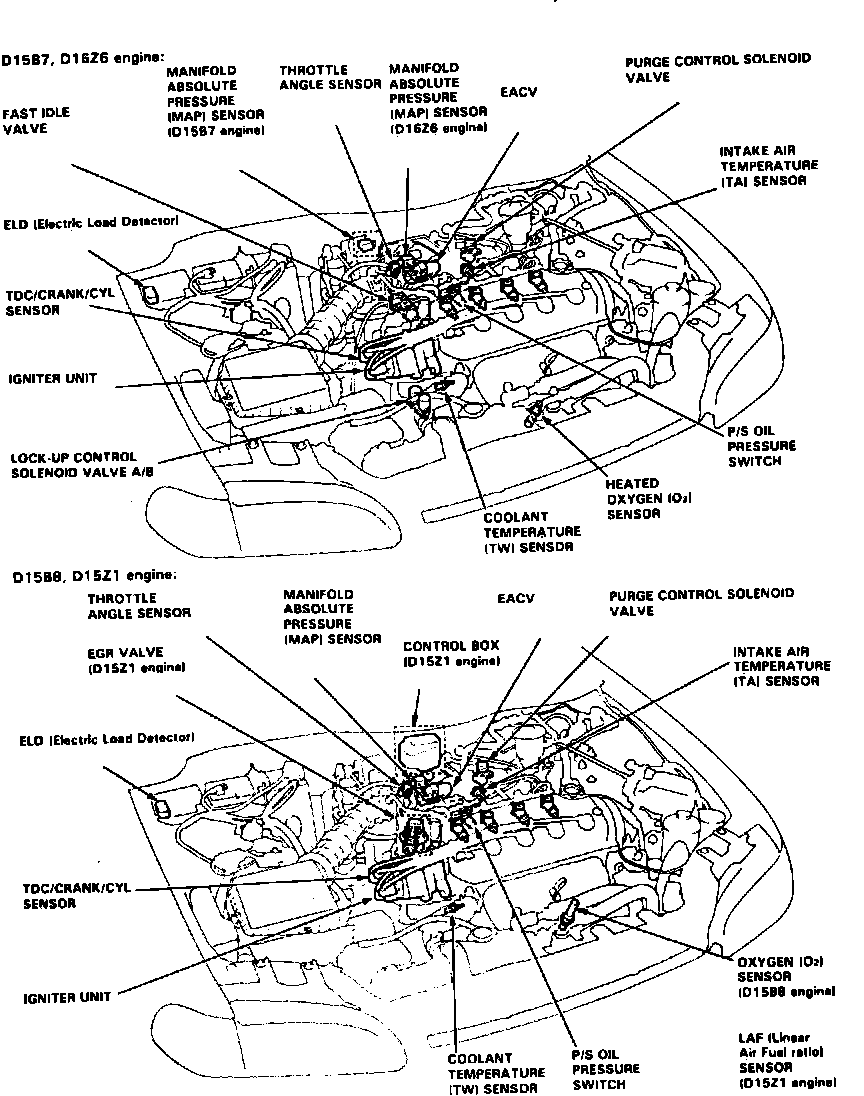

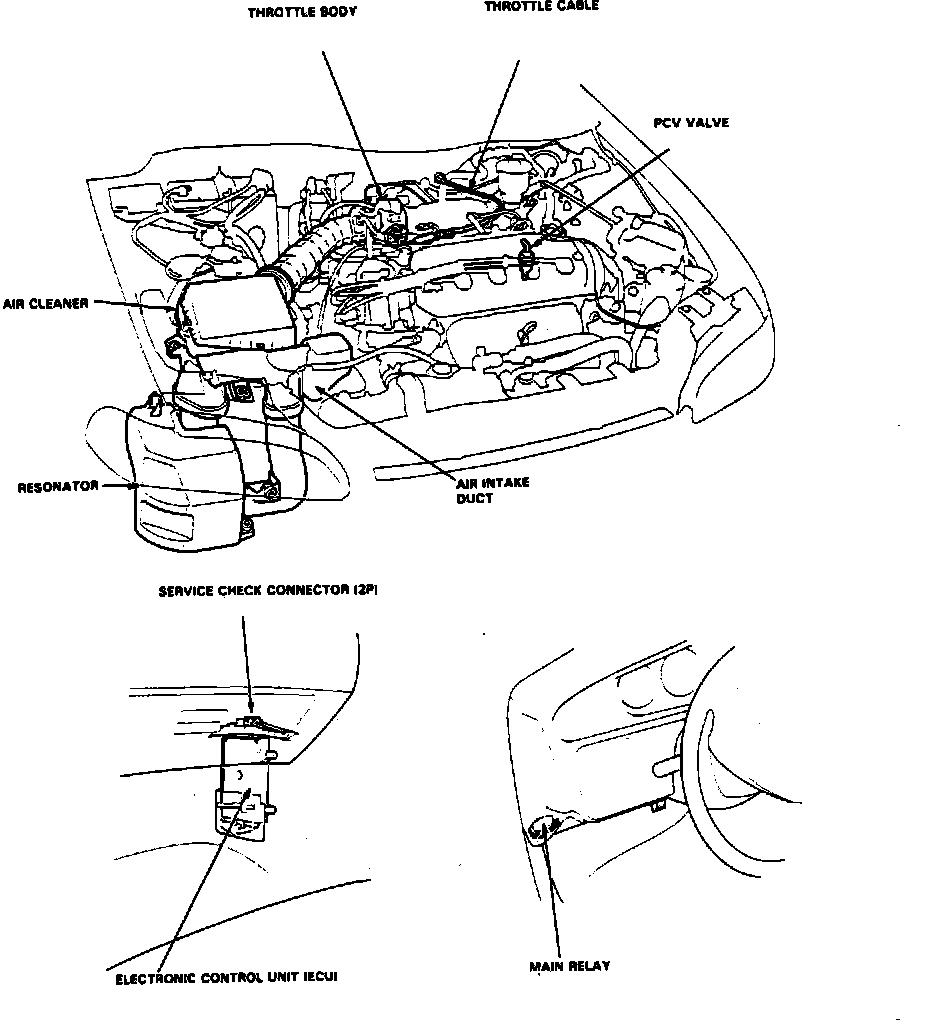

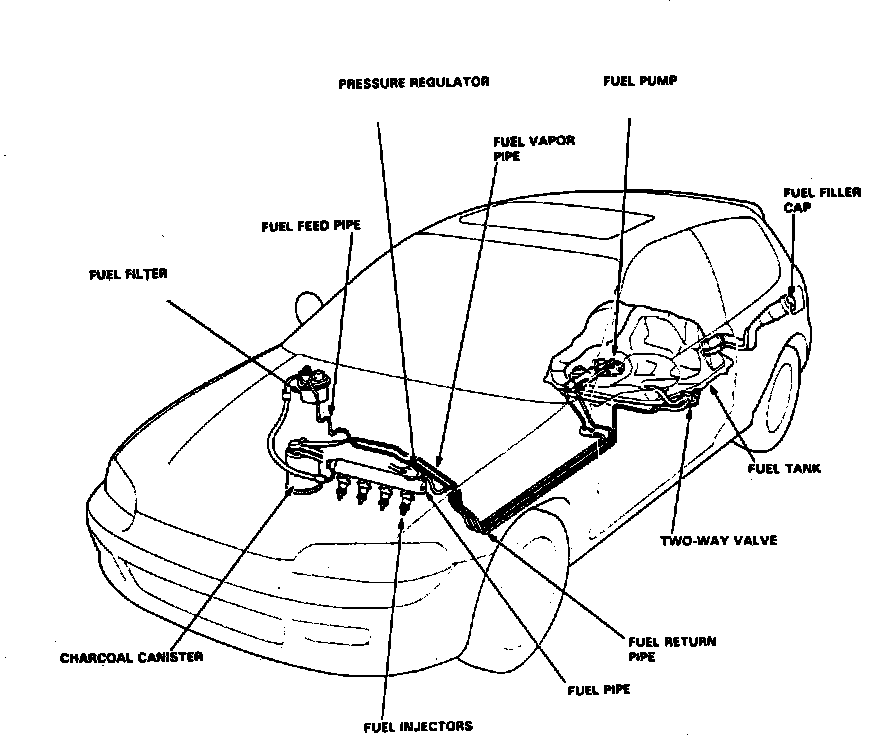

Fuel & Emissions System Components (Part 1 Of 3).:

Fuel & Emissions System Components (Part 1 Of 3).:

Fuel & Emissions System Components (Part 1 Of 3).:

At Center Rear Of Engine

Applicable to: 1992
