Reassembly

CAUTION:
- Press the 3rd, 4th and 5th gears on the countershaft without lubrication.
- When Installing the 3rd, 4th and 5th gears, support the shaft on steel blocks and install the gears using a press.

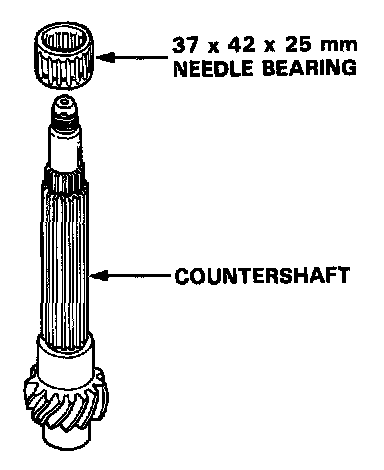

1. Install the needle bearing on the countershaft.

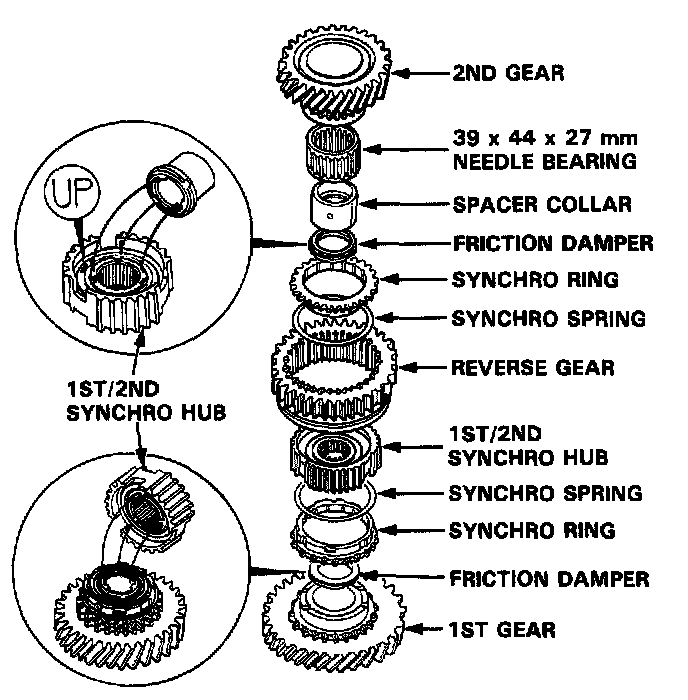

2. Assemble the parts as shown in image.

NOTE: Check that the finger of the friction damper is securely set in the groove of the 1st/2nd synchro hub.

3. Place the parts assembled in Step 2, then install the parts on the countershaft.




4. Support the countershaft on a steel block as shown and install 3rd gear using the special tools and a press.

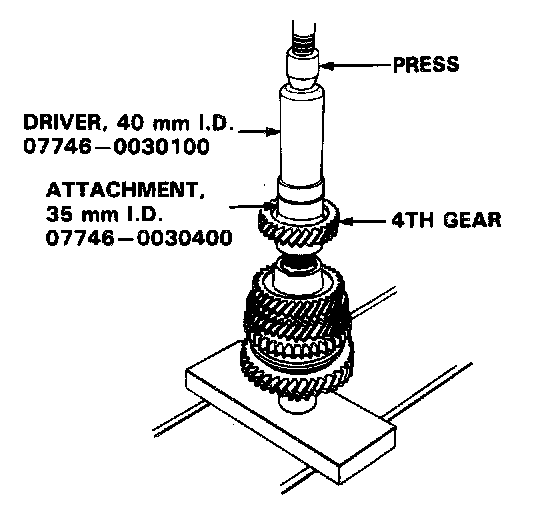

5. Install 4th gear using the special tools and a press as shown.

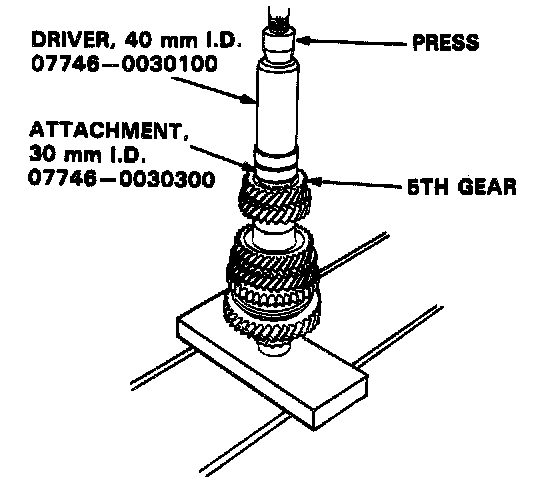

6. Install 5th gear using a press as shown.

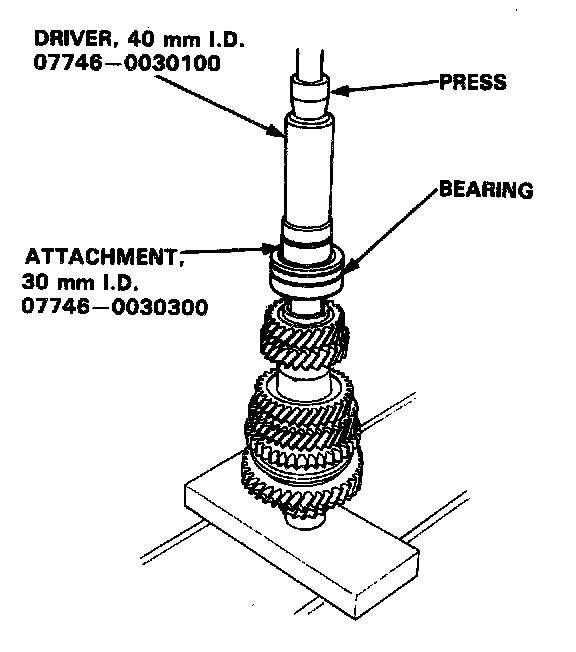

7. Install the bearings using a press as shown.

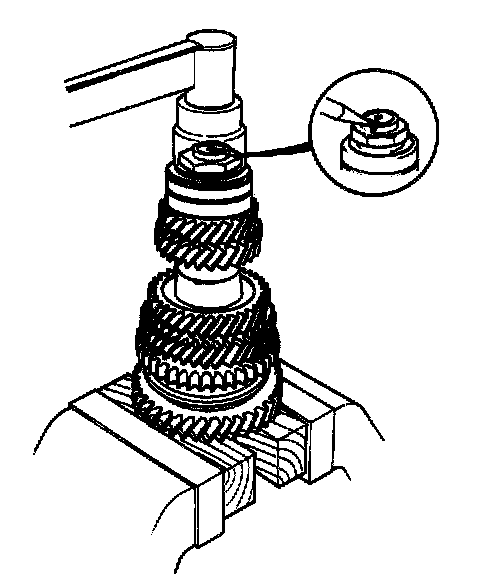

8. Install the spring washer, tighten the locknut, then stake the locknut tab into groove.

LOCKNUT
110->0->110 N.m (11.0->0->11.0 kg-m, 80->0->80 lb-ft)
