Ignition Coil: Testing and Inspection

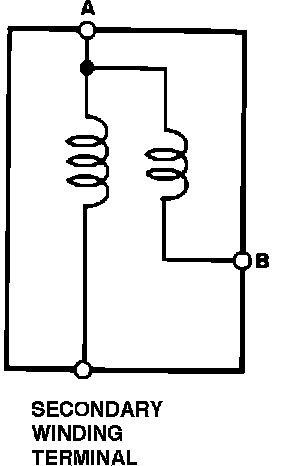

Ignition Coil Circuit:

NOTE: Resistance will vary with the coil temperature; specifications are at 68°F (20°C).

1. With the ignition switch OFF, remove the distributor cap.

Ignition Coil Testing:

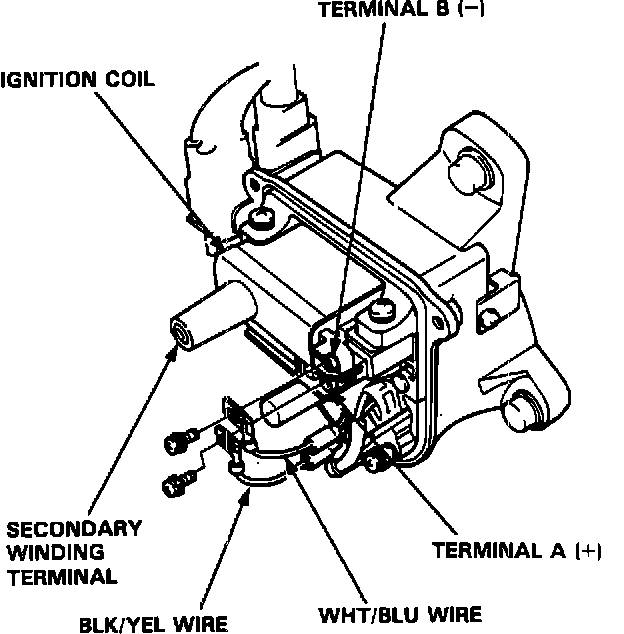

2. Remove the 2 screws to disconnect the BLK/YEL and WHT/BLU wires from the terminals A and B respectively.
3. Using an ohmmeter, measure the resistance of the primary winding between the A and B terminals.
Replace the coil if the resistance is not within specifications.

Resistance: 0.6 - 0.8 Ohms

4. Using an ohmmeter, measure the resistance of the secondary winding between the A and secondary winding terminals.
Replace the coil if the resistance is not within specifications.

Resistance: 13,200 - 19,800 Ohms
