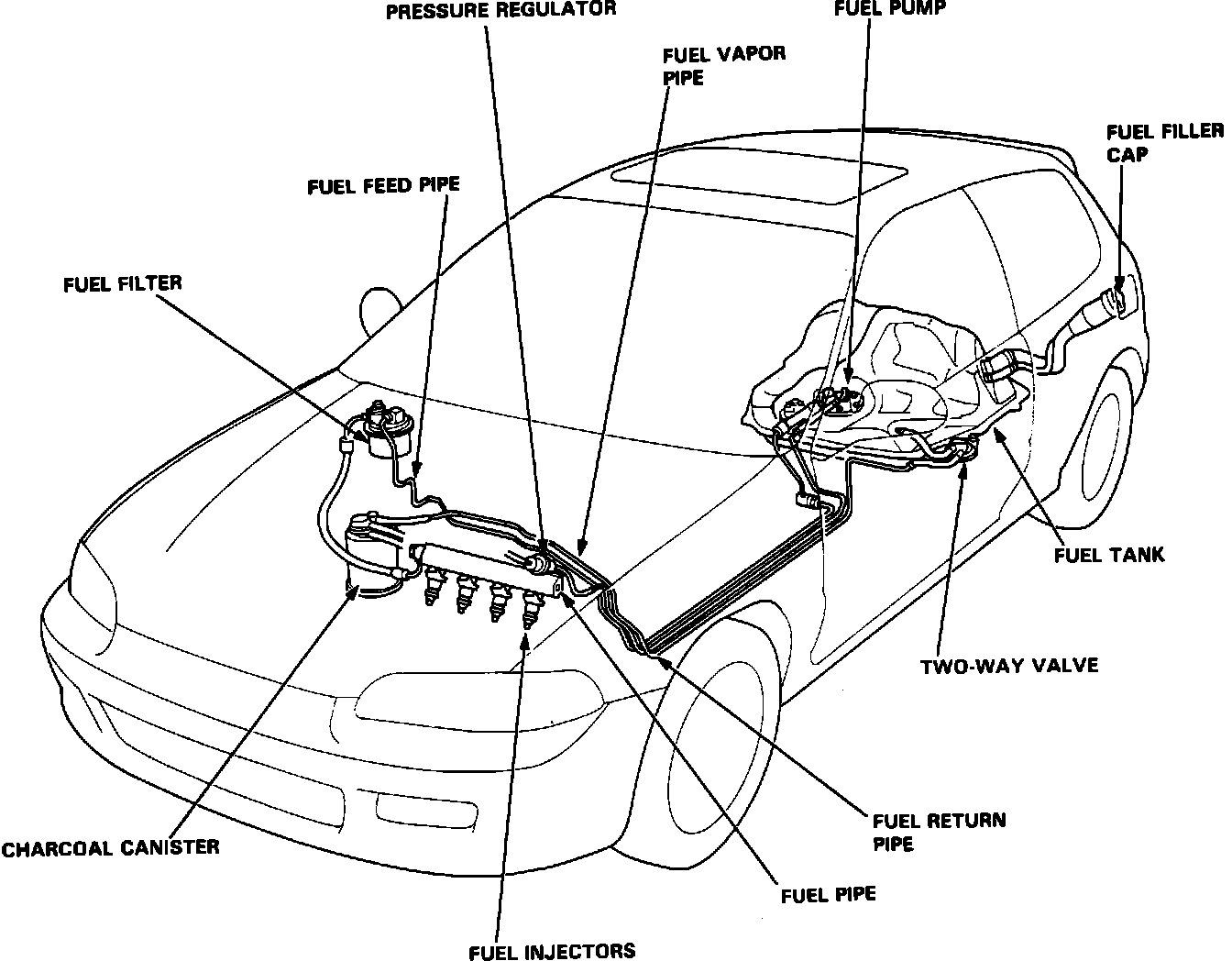

Evaporative Emissions System: Locations

Evaporative Control System:

CHARCOAL CANISTER
Charcoal canister is located at passenger side firewall.

PURGE CONTROL SOLENOID
Purge control solenoid is located drivers side firewall near brake master cylinder.

PURGE CONTROL DIAPHRAGM
Purge control diaphragm is located on top of the charcoal canister.

TWO-WAY VALVE
Two-way valve is located on the left front corner of the fuel tank
