Home
>>
Honda
>>
1992
>>
Civic L4-1493cc 1.5L SOHC (16 valve)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Under-Dash Fuse/Relay Box
>>

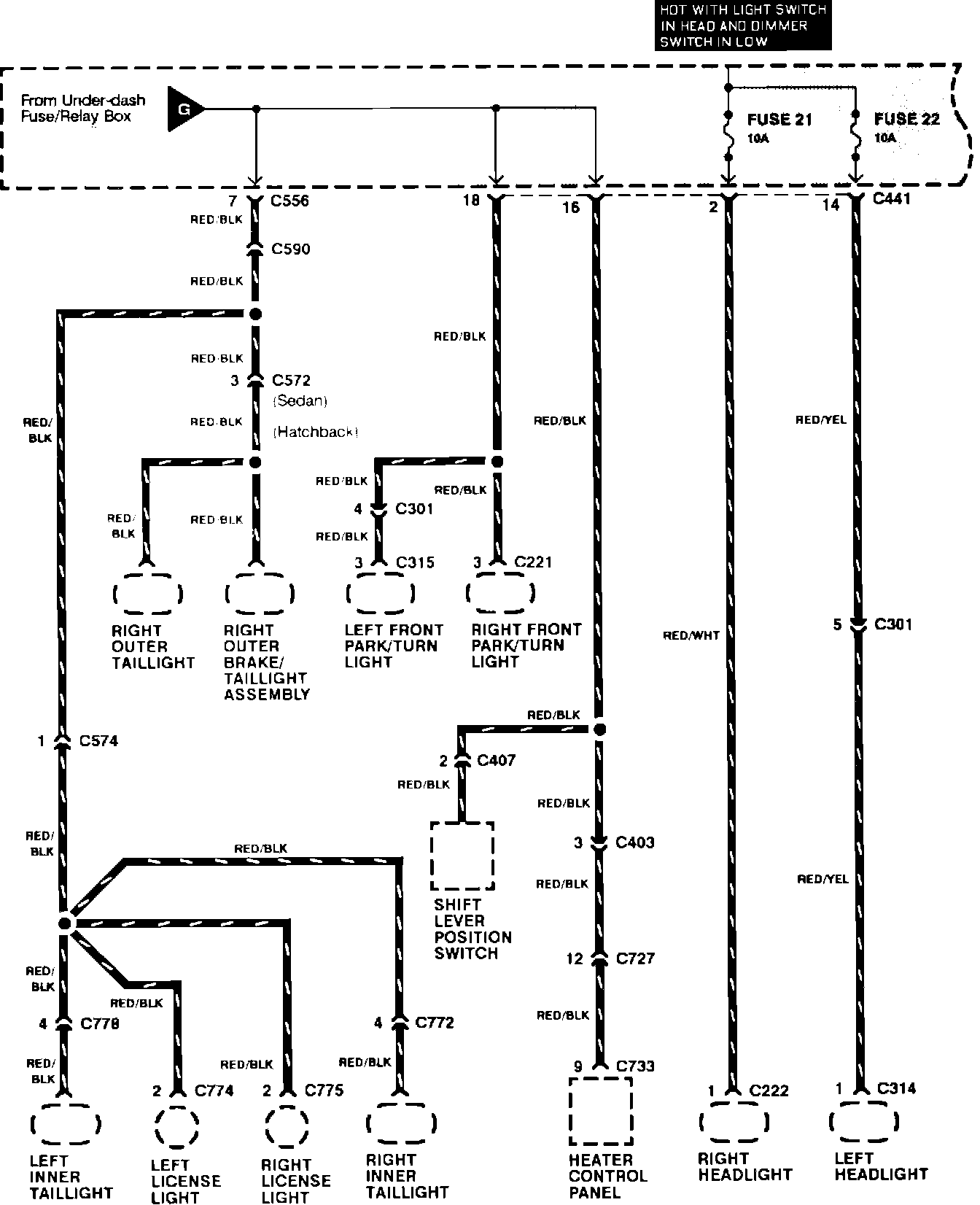

Fuse 21
Fuse 21

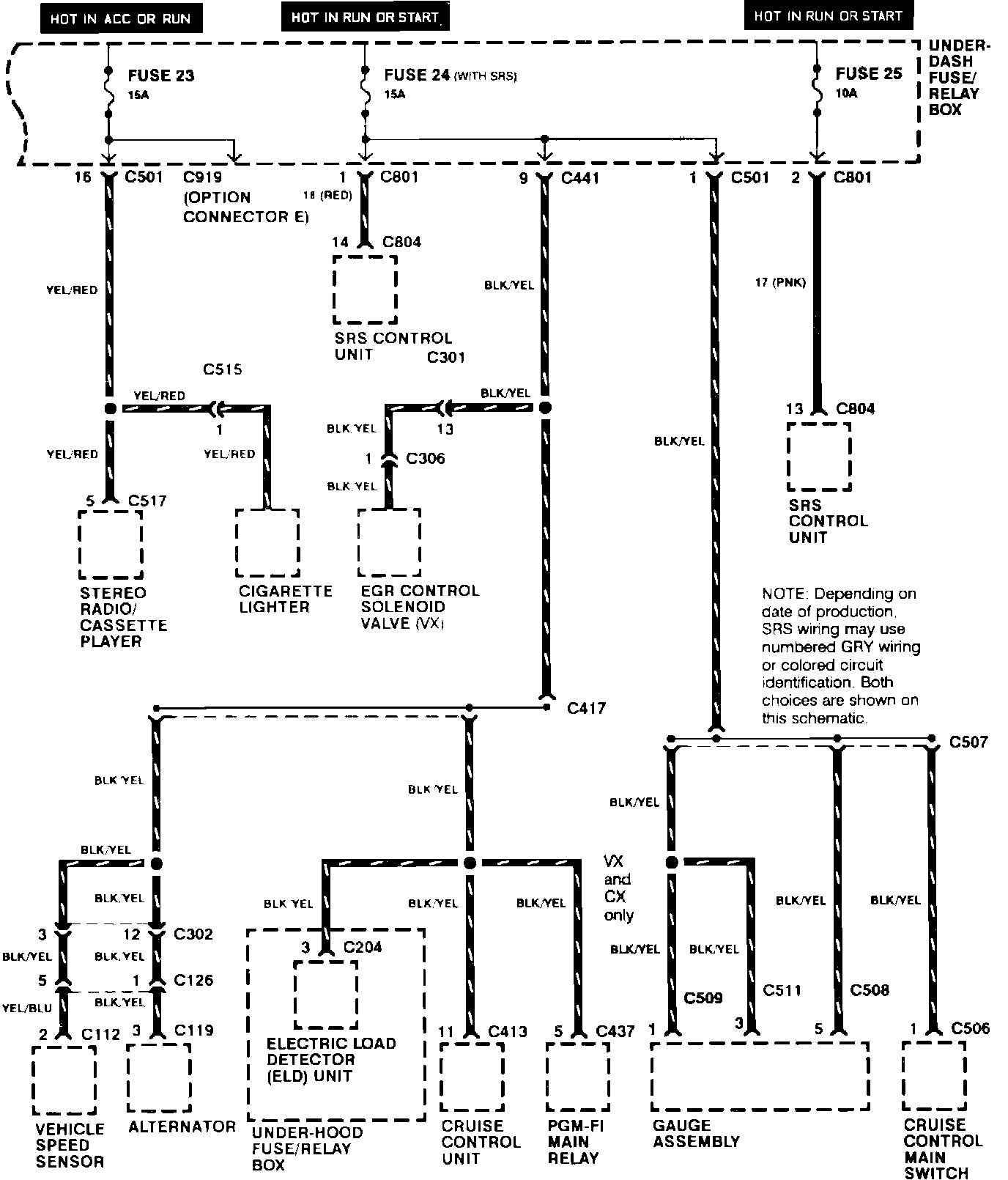

Power Distribution:
Power Distribution:
