Condenser Fan Motor Relay: Locations

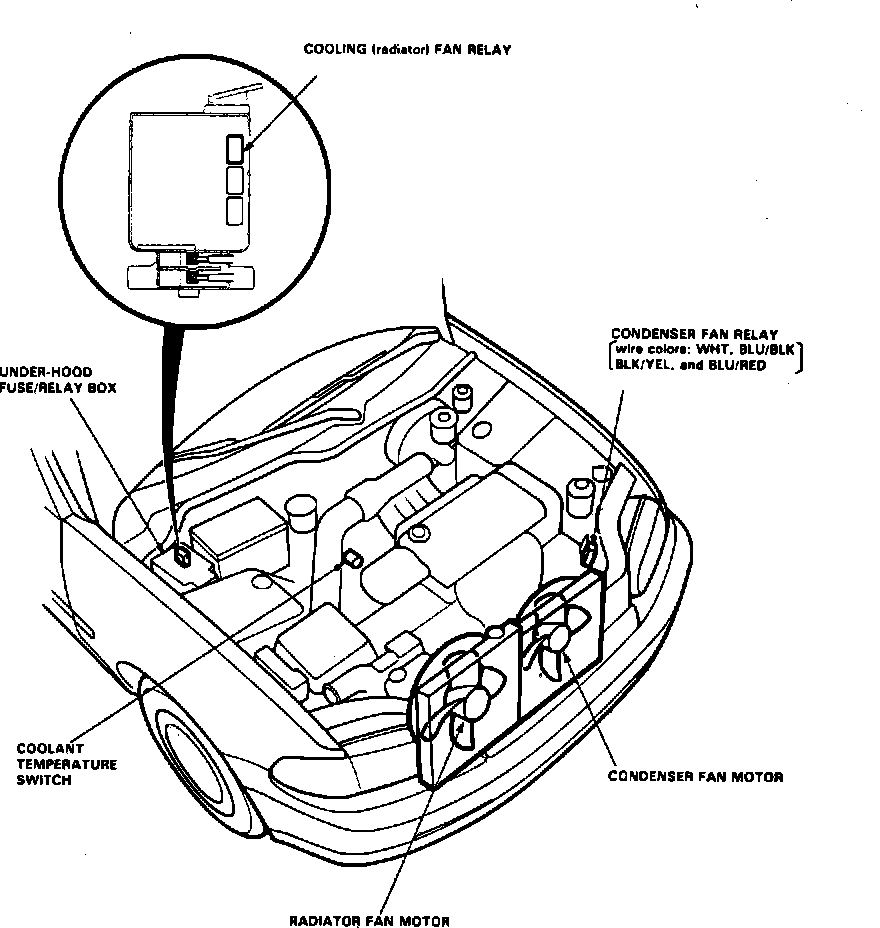

Cooling Fan Components.:

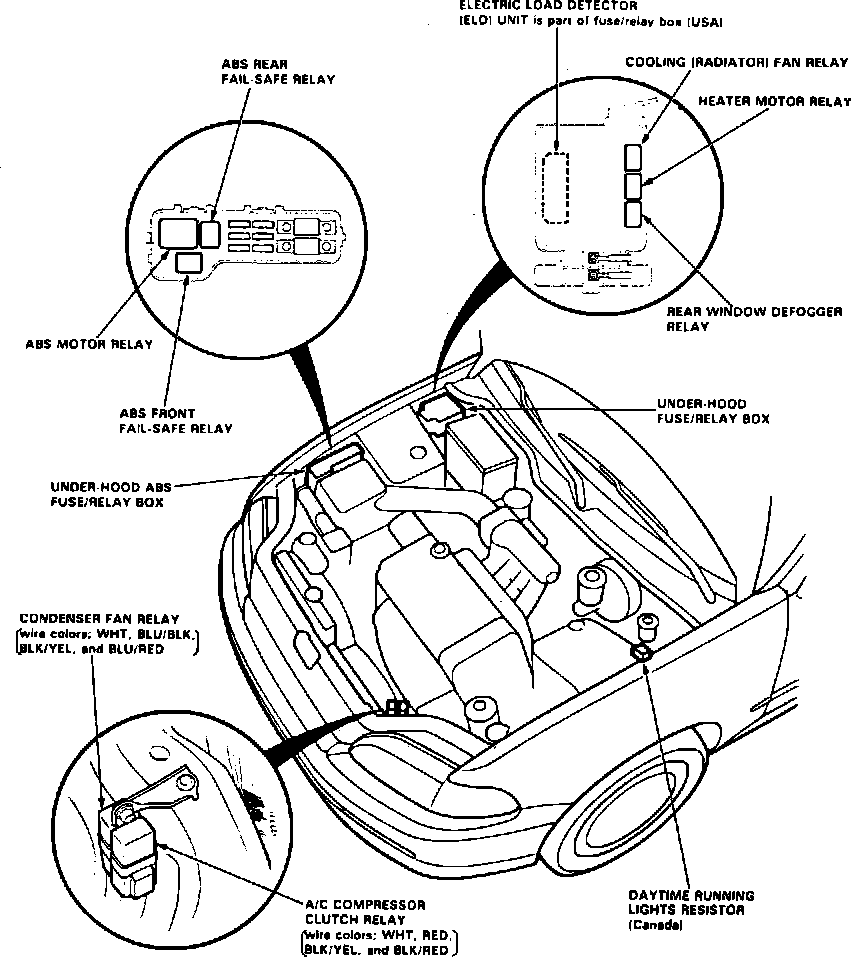

Engine Compartment Components.:




Front LH Side Of Engine Compartment

Applicable to: 1992
