Blower Motor Switch: Testing and Inspection

Fan Switch Test




1. Disconnect the 6P connector from the fan switch.

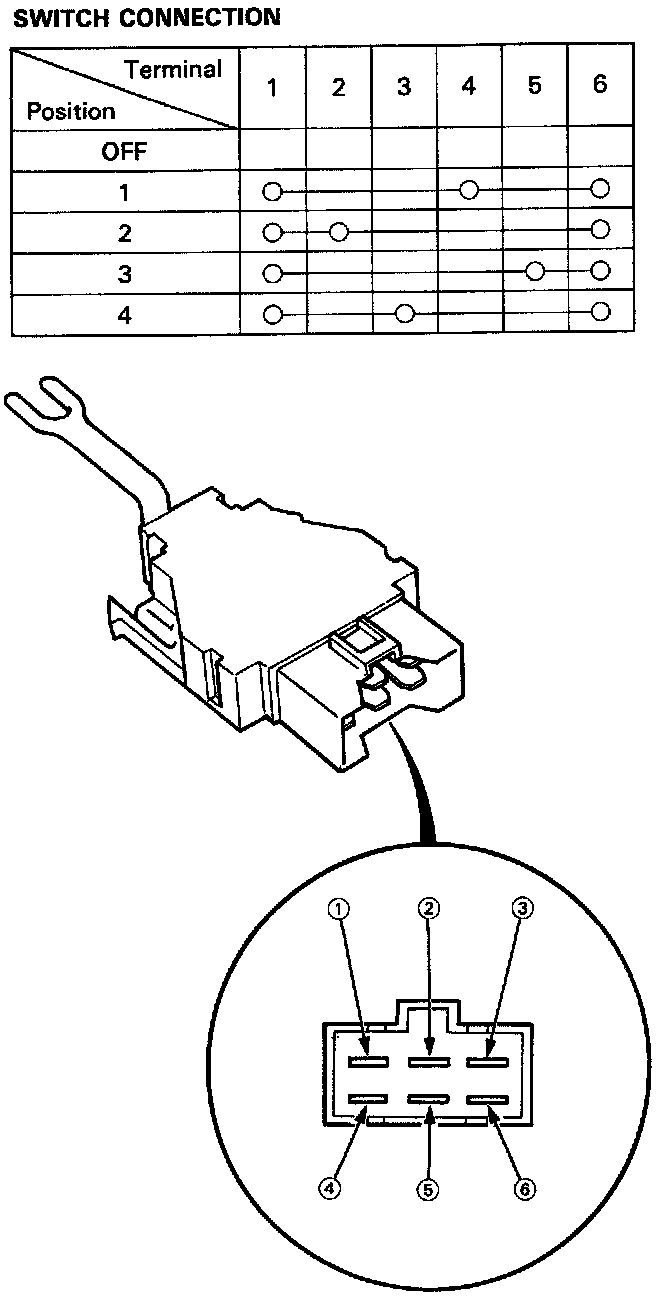

2. Check for continuity between the terminals of the fan switch according to the table.
