Home >> Honda >> 1991 >> Civic Sedan L4-1493cc 1.5L SOHC (D15B2) TBI >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Variable Induction System >> Variable Induction Control Valve >> Testing and Inspection

Variable Induction Control Valve: Testing and Inspection

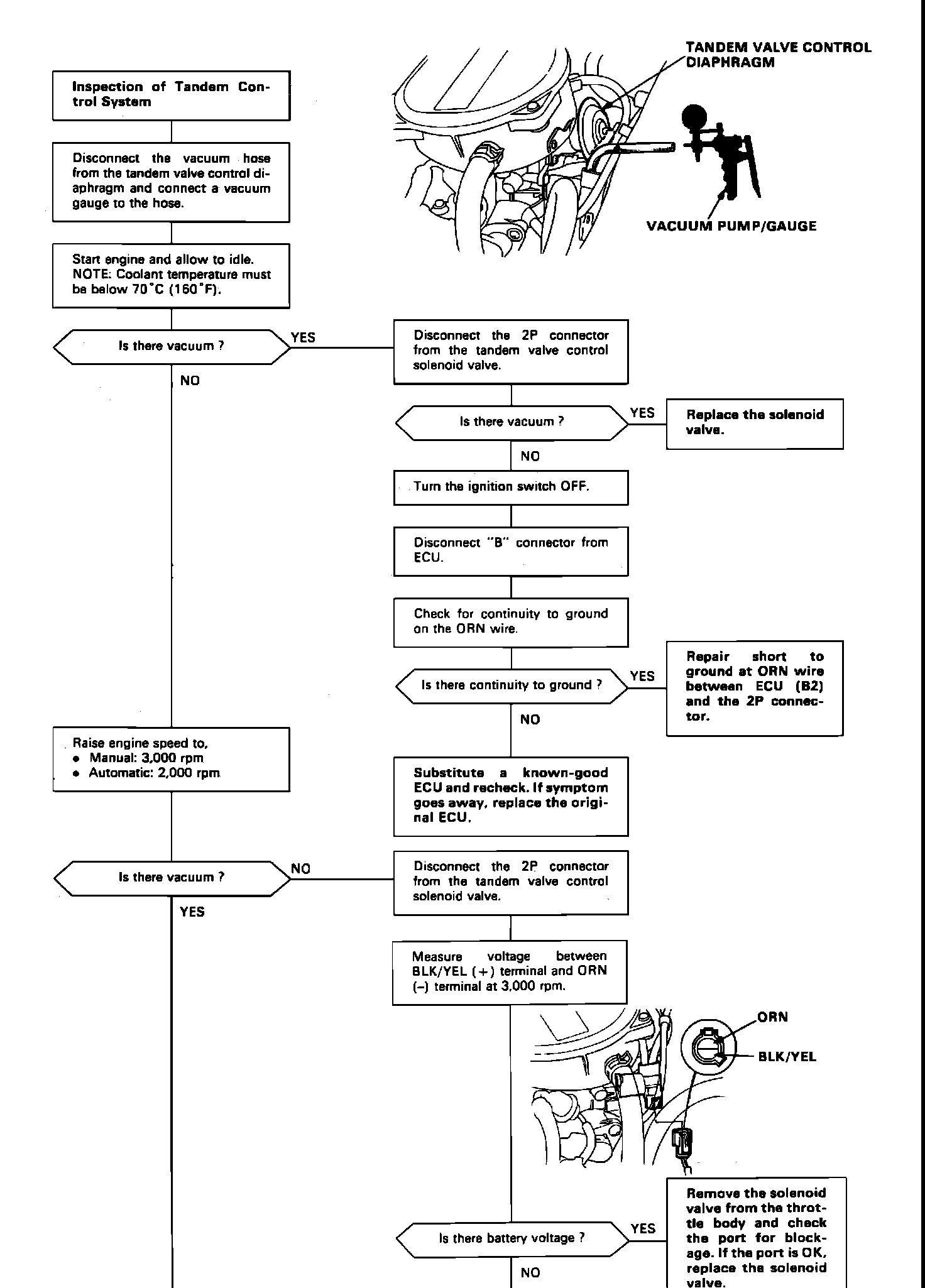

i�(/Fig. 40 Tandem Control System Test:
