Home >> Honda >> 1991 >> Civic Sedan L4-1493cc 1.5L SOHC (D15B2) TBI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Locations >> California A/T

California A/T

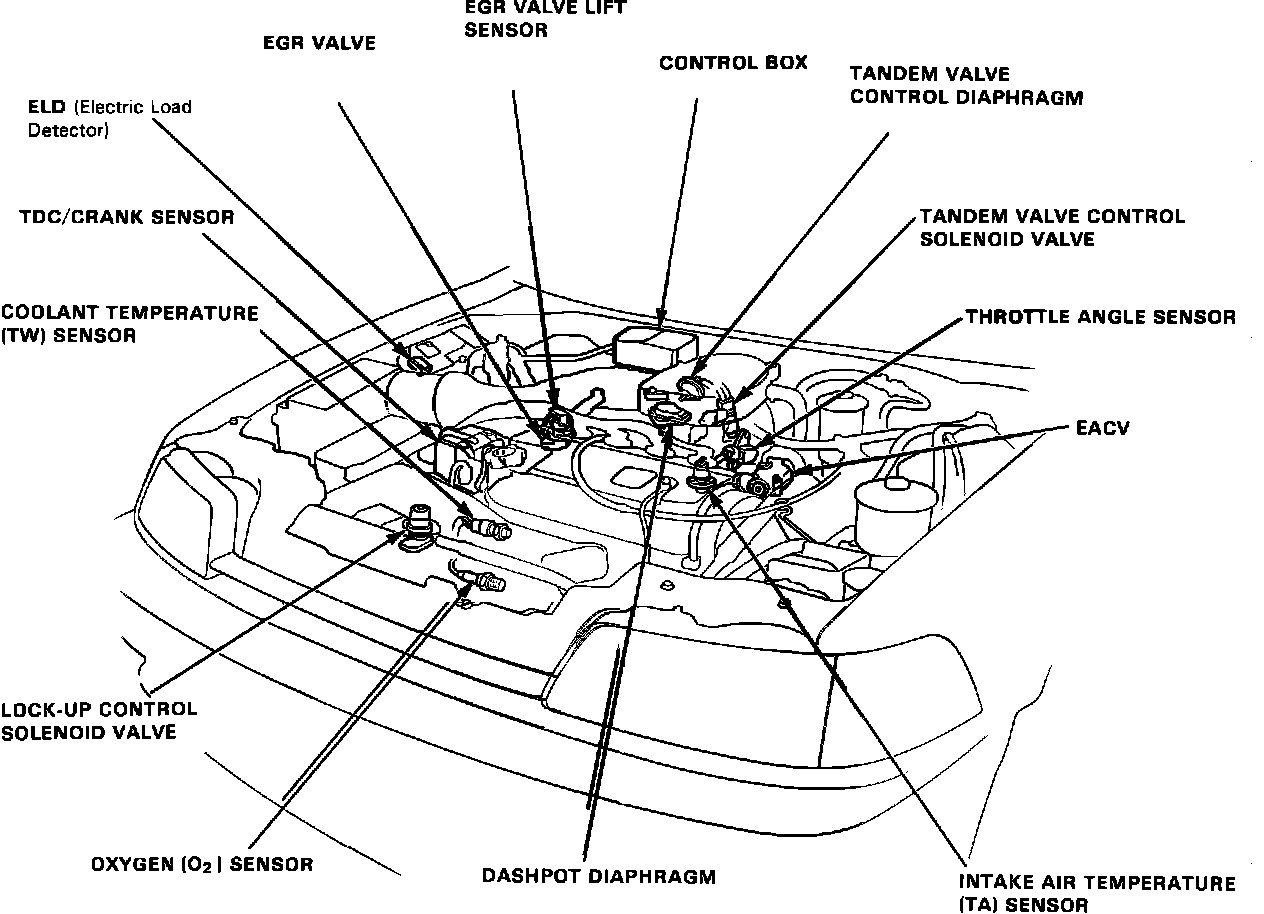

Fig. 4 Engine Compartment Components (CALIFORNIA A/T):
