Fluid - M/T: Service and Repair

Use only SAE 10W-30 or 10W-40 oil rated SE or SF grade.

1. Drain with transmission oil at operating temperature, engine OFF, and car on level ground.

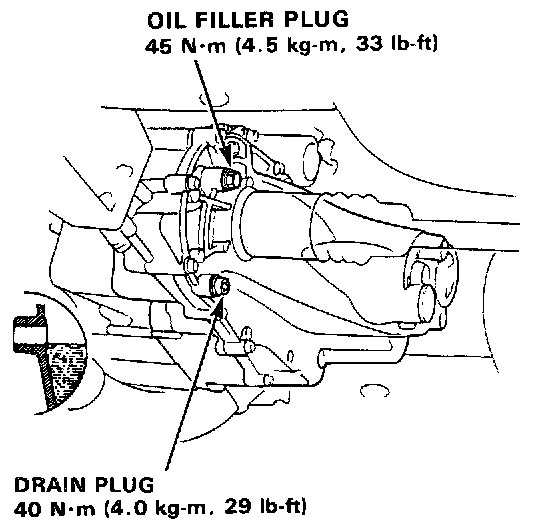

2. Remove the oil filler plug, then remove the drain plug and drain transmission
3. Reinstall drain plug with new washer, and refill to proper level.

NOTE: Drain plug washer should be replaced at every oil change.

Oil Capacity:
1.8l(1.9 US qt, 1.6 Imp qt) after drain.
1.9l(2.0 US qt, 1.7 Imp qt) after overhaul.
