Rear

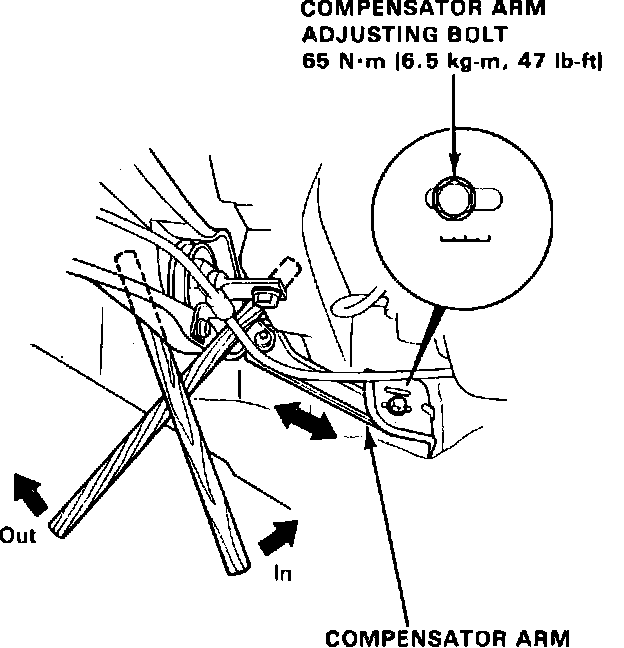

Fig. 9 Rear Toe-in Adjustment:

1. Release parking brake.
2. Before Adjustment, note location of compensator arm adjusting bolts.
3. Loosen adjusting bolt and slide compensator arm in or out as shown in Fig. 9, to adjust toe.
4. Torque adjusting bolt to 47 ft. lbs.
