Refrigerant Pressure Sensor / Switch: Locations

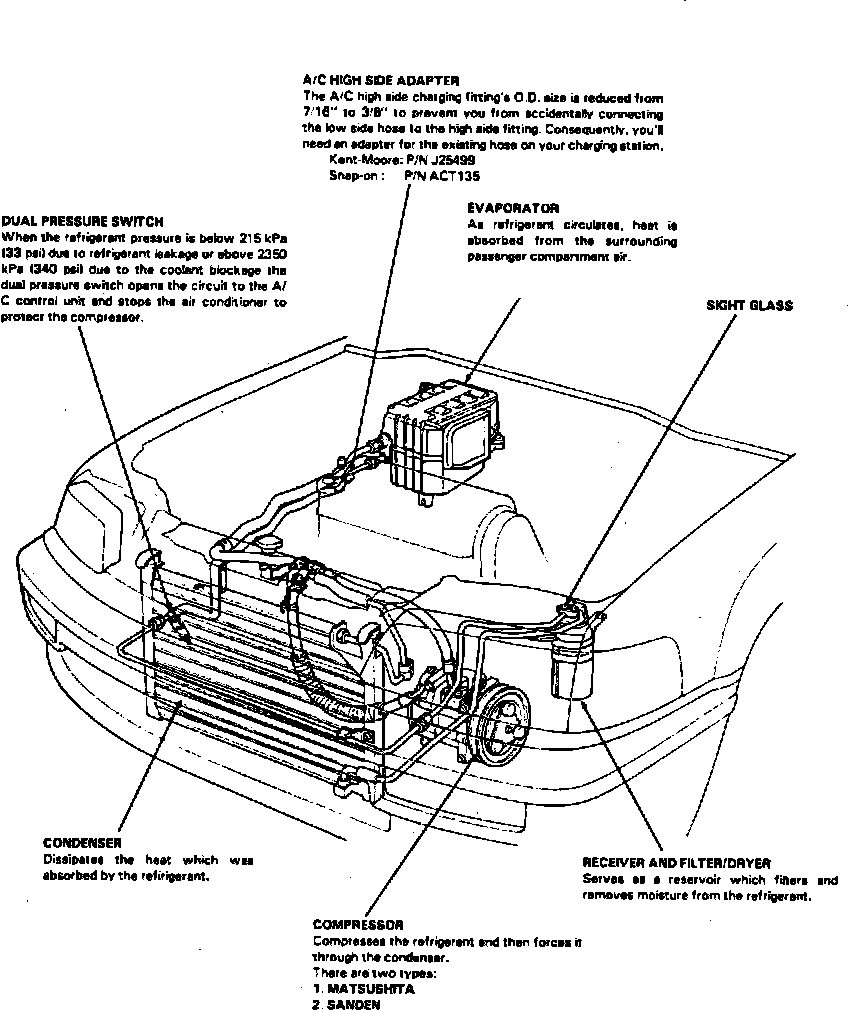

Air Conditioner System Components (Part 1 Of 2):

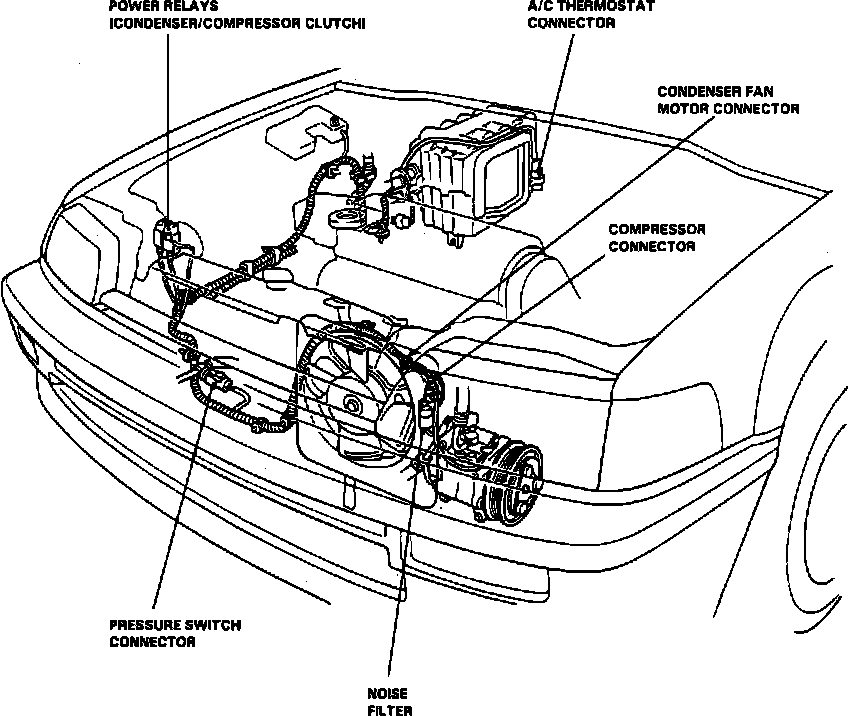

Air Conditioner System Components (Part 2 Of 2):




At Front Of Engine Compartment
