Civic Sedan L4-1493cc 1.5L SOHC (D15B2) TBI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Diagrams
>>
Electrical Diagrams
>>
Hatchback/Sedan
Hatchback/Sedan

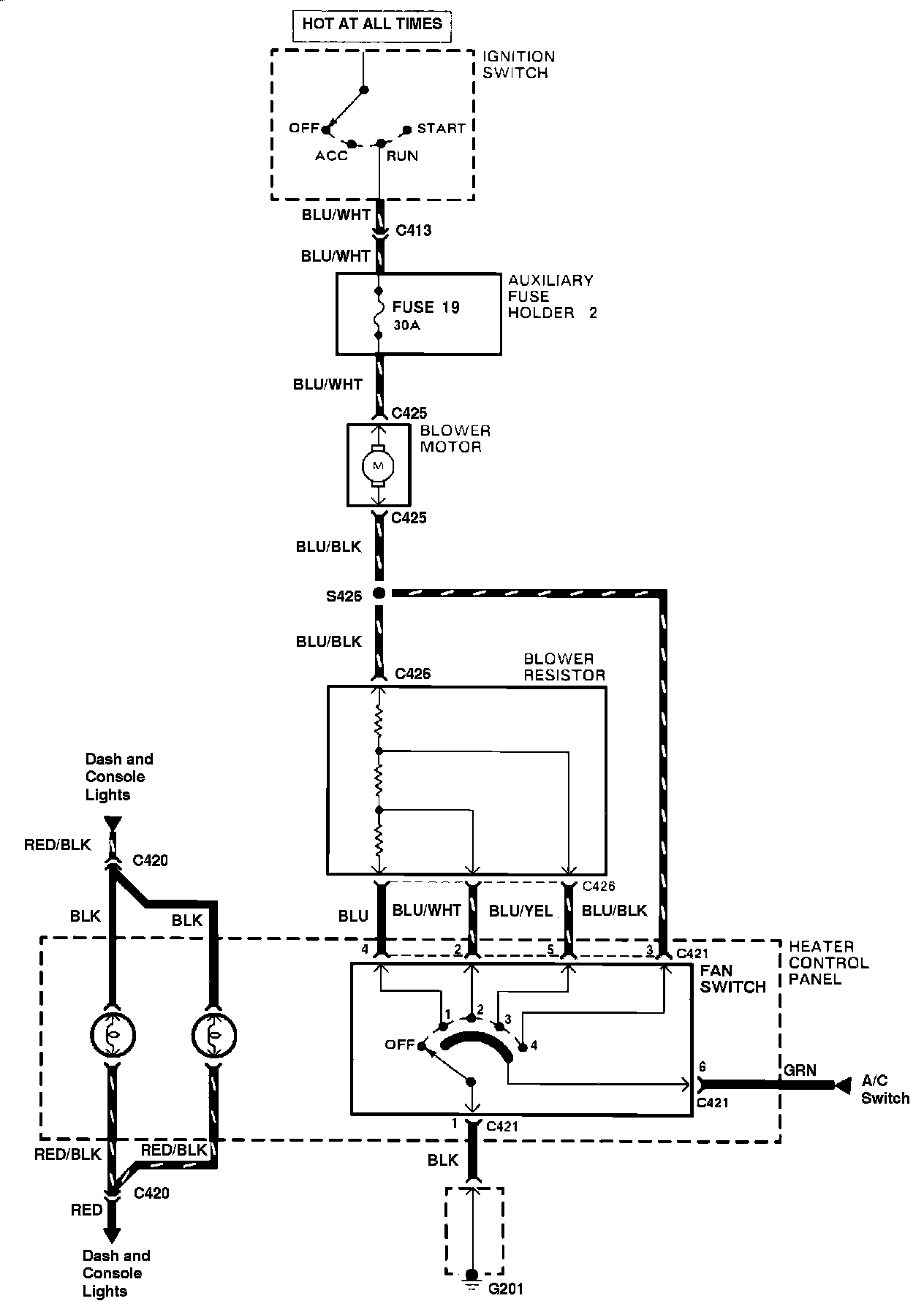

Air Conditioning & Heater (Blower Control):
